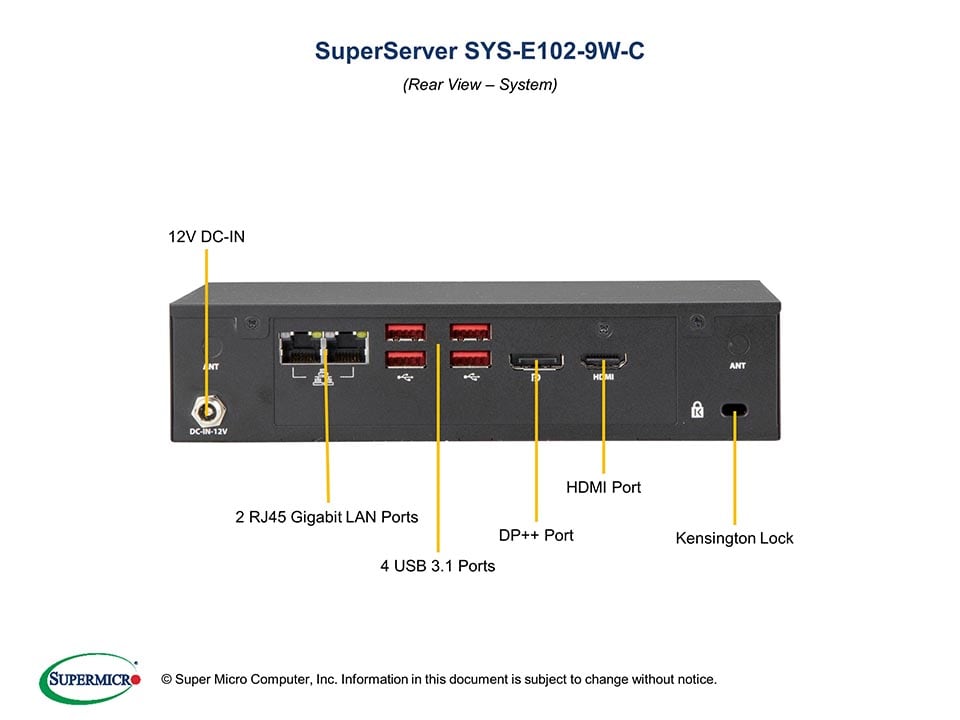

  2. CSE-E102 + MBD-X11SWN-C with 60W Power adapter

CSE-E102 + MBD-X11SWN-C with 60W Power adapter

SKU: SYS-E102-9W-C
Brand: Supermicro
Product Note:

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10408/image_1920?unique=9185e76

kr 4,062.79 4062.79 NOK kr 4,062.79 VAT Excluded

kr 4,062.79 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E102-9W-C is engineered for industrial automation and smart medical applications, delivering robust performance with Intel® Celeron® Processor 4305UE and extensive connectivity options.

    Key Features

    • Industrial Automation, Retail - Smart Medical Expert Systems - Kiosk, Interactive info system - Digital Signage
    • Intel® Celeron® Processor 4305UE; Single Socket FCBGA-1528
    • System-on-Chip
    • M.2: B-Key 2242/3042/2280, E-Key 2230, M-Key 2242/2280
    • Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
    • 1x 1GbE LAN, Intel PHY i219LM 1x 1GbE LAN, Intel i210IT
    • 4 COM (RS-232/422/485), 4 USB 3.1, TPM onboard
    • 1 HDMI and 1 Display Port
    • Passive CPU Heat Sink and 1x 40mm Chassis Fan
    • Lockable 12V DC 60W power adapter

    Key Applications

    • Industrial automation
    • Smart medical systems
    • Retail kiosks
    • Interactive info systems
    • Digital signage

    Description

    The Supermicro SYS-E102-9W-C is a versatile box PC designed for deployment in industrial automation, retail, smart medical expert systems, kiosks, interactive info systems, and digital signage applications. Featuring an Intel® Celeron® Processor 4305UE and up to 64GB of DDR4 memory, it ensures reliable and efficient processing. Additionally, it supports multiple M.2 configurations for expandable storage and connectivity, making it a flexible and powerful solution for various industry needs. Equipped with multiple ports including HDMI, DisplayPort, USB, and COM, the SYS-E102-9W-C offers extensive connectivity options. The system's robust design includes a passive CPU heat sink and a 40mm chassis fan, ensuring optimal thermal management even in demanding environments.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E102-9W-C
    • SuperServer E102-9W-C ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SWN-C
    Processor/Cache
    CPU
    • Intel® Celeron® Processor 4305UE
    • Single Socket FCBGA-1528
    • System-on-Chip
    • CPU TDP support 15W
    Note
    • BIOS version 2.0 or above is required
    System Memory
    Memory Capacity
    • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
    Memory Type
    • DDR4 up to 2133MHz
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Single LAN with Intel® I210IT
    • Single LAN with Intel® PHY I219LM
    Audio
    • ALC 888S HD Audio
    Video
    • Intel® UHD Graphics 620
    Input / Output
    USB
    • 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
    Video Output
    • 1 HDMI and 1 Display Port
    COM Port
    • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (option)
    Audio
    • 1 HD Audio header(Mic-in/Line-Out) (option)
    Others
    • TPM onboard
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E102
    Dimensions
    Width
    • 7.48" (190mm) / 11.81" (300mm) - pkg.
    Height
    • 1.72" (44mm) / 5.12" (130mm) - pkg.
    Depth
    • 4.72" (120mm) / 11" (279mm) - pkg.
    Weight
    • Gross Weight: 4.5 lbs (2.04 kg)
    • Net Weight: 2.65 lbs (1.2 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED
    Expansion Slots
    M.2
    • Key: B-Key, M-Key, E-Key
    • M.2 2242/3042/2280 B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
    • M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2)
    • M.2 2242/2280 M-Key (PCI-E 3.0 x4, SATA Gen3 x 1), NVMe support
    System Cooling
    Fans
    • Passive CPU Heat Sink and 1x 40mm Chassis Fan
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V ~ +24V DC Wide power range input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    • CPU thermal trip support for processor protection
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C ~ 50°C (32°F ~ 122°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Power Supply
    • Lockable 12V DC 60W power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SWN-C1Super X11SWN-C Motherboard
    CSE-E1021Embedded Enclosure for 3.5" SBC
    Power Adapter
    MCP-250-10134-0N160W DC power adapter with US power cord 18AWG 6ft (0-40°C)
    Cooling Fan
    FAN-0170L4140x40x10 mm, 7K RPM, SC101S Chassis Fan, RoHS
    Cable
    CBL-0296L14 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    CBL-PWEX-10291PWR EXT,2X4F/P2.00 to 2x2M/P4.2, 12V,15CM,24AWG, 2.5A/pin, -20~80C, RoHS
    I/O Shield
    MCP-260-10204-0B1CSE-E102 I/O shield for X11SWN
