| Product SKUs |

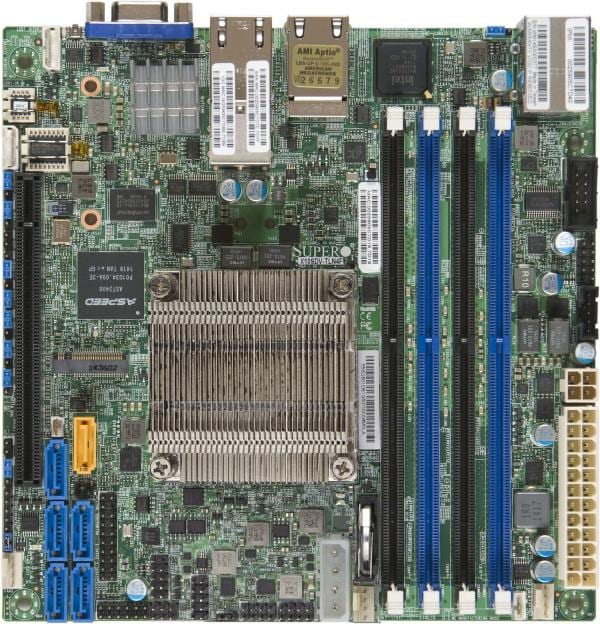

| MBD-X10SDV-12C-TLN4F | |
| Physical Stats |
| Form Factor | |
| Dimensions | - 6.7" x 6.7" (17.02cm x 17.02cm)
|
| Processor/Cache |
| CPU | - Intel® Xeon® Processor D-1557.
- Single Socket FCBGA1667 supported, CPU TDP support 45W
|
| Cores / Cache | |
| System Memory |
| Memory Capacity | - Up to 128GB Registered ECC RDIMM
- Up to 64GB Unbuffered ECC/non-ECC UDIMM, in 4 DIMM slots
|
| Memory Type | - 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
|
| DIMM Sizes | |
| Memory Voltage | |
| Error Detection | - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| On-Board Devices |
| Chipset | |
| SATA | - SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- 10 RSTe
|
| IPMI | - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Network Controllers | - Dual LAN with Intel® Ethernet Controller I350-AM2Dual LAN with 10Gbase-TVia D-1500 SoCSingle LAN with Virtual Machine Device Queues reduce I/O overheadSingle LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
|
| Graphics | |
| Input / Output |
| SATA | |
| LAN | - 2 RJ45 10GBase-T ports
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB | - 4 USB 2.0 ports (4 headers, Type A))
- 2 USB 3.0 ports (2 rear)
|
| Video Output | |
| Serial Port / Header | |
| TPM | |
| Expansion Slots |
| PCI-E | - 1 PCI-E 3.0 x16
- Support SATA devices
|
| M.2 | - 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
|
| System BIOS |
| BIOS Type | - 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features | - PCI 3.0
- ACPI 5.0
- USB Keyboard support
- Hardware BIOS Virus protection
- RTC (Real Time Clock) Wakeup
- SMBIOS 2.8
- UEFI 2.4
|
| Management |
| Software | - Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
|
| System Management Software | |
| Power Configurations | - ACPI Power Management
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery
|
| PC Health Monitoring |
| Voltage | - +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature
|
| FAN | - 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
|
| Temperature | - Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
|
| LED | - CPU / System Overheat LED
|
| Other Features | - 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS
|
| Operating Environment |
| Operating Temperature Range | - 0°C ~ 60°C (32°F ~ 140°F)
|
