Xeon SPR Compact 1U,X13SEW-TF,CSE-515B,Titanium PSU
| SKU: | SYS-111E-FWTR-EU |
| Brand: | Supermicro |
| Produktnotat: |
For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen. |
Beskrivelsesammendrag
Supermicro SYS-111E-FWTR-EU. Motherboard chipset: Intel C741, Processor socket: LGA 4677 (Socket E). Supported memory types: DDR5-SDRAM, Maximum internal memory: 2 TB, Memory voltage: 1.1 V. Storage drive sizes supported: 2.5", Supported storage drive interfaces: M.2, Serial ATA III, RAID levels: 0, 1. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® X550-AT2. PC health monitoring: CPU, Fan, Temperature
Nøkkelfunksjoner
- Support 5th and 4th Gen Intel® Xeon® Scalable processors
- 8 DIMMs; Up to 2TB 3DS ECC DDR5-5600 RDIMM
- 2x 2.5" drive bays; 1 M.2 NVMe (PCIe 3.0 x2 from PCH)
- 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
- 800W AC Redundant Power Supplies Level
Viktige bruksområder
- Multi-Access Edge Computing
- Flex-RAN, Open-RAN vBBU
- Artificial Intelligence (AI) on Edge
- DU of 5G Application
- Satellite Communication
Beskrivelse

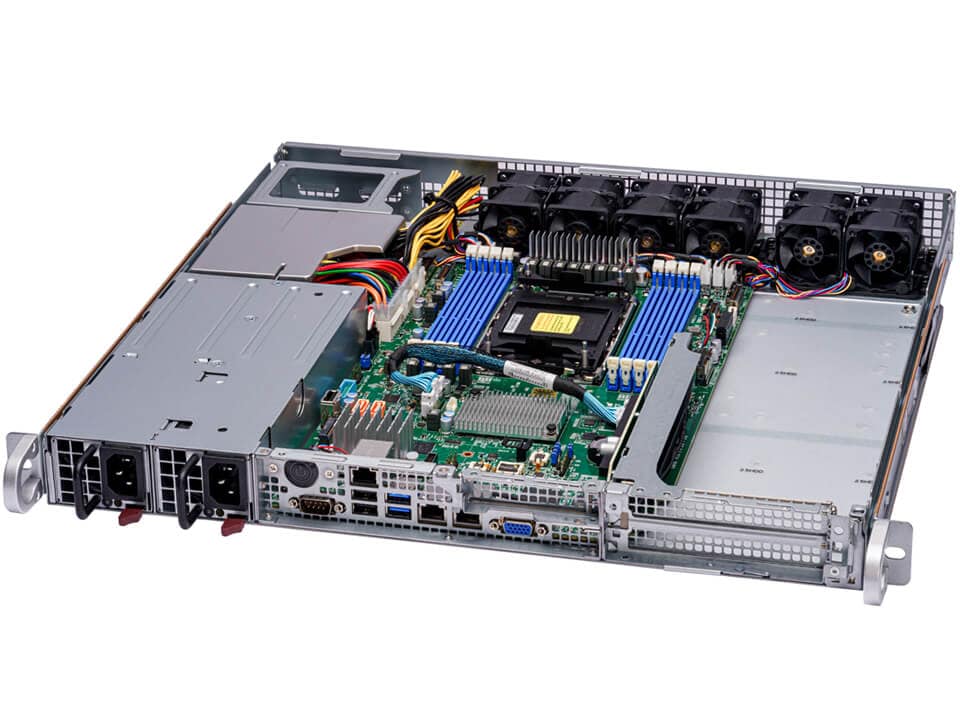

The SYS-111E-FWTR is powerful 1U system optimized with front I/O. This 1U system supports the latest 4th Gen Intel® Xeon® Scalable Processors and can support up to 2TB in DDR5-4800 RDIMM memory. This unique system has front I/O that supports 2 10GbE LAN ports with additional support for 3 PCI-E 5.0 X16 Slots. The key application to this system are multi-access edge computing, artificial intelligence (AI) on edge, satellite communication, flex-RAN, Open-RAN vBBU, DU of 5G Application.
The SYS-111E-FWTR is 1U system that supports up to 32 cores and supporting up to 2TB ECC RDIMM DDR5 memory. In addition, this system supports 2 fixed 2.5" internal storage bay and 1 M.2 (NVMe). Despite its size, this system can support 3 PCI-E 5.0 (1 low profile and 2 full height full length) so rather you want to add an accelerator card or additional network card (up to 100GbE) this system can support those requirements. Lastly, to power the entire system is front access 800W AC platinum redundant power supplies
This SYS-110C-FHN4T system is perfect for those looking for a really compact system at an affordable price.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Core Count |
|
| Note |
|
| System Memory | |
| Memory |
|
| Memory Voltage |
|
| On-Board Devices | |
| SATA |
|
| Chipset |
|
| Network Connectivity |
|
| Input / Output | |
| LAN |
|
| USB |
|
| Video |
|
| Management | |
| Software |
|
| Power configurations |
|
| Security | |
| Hardware |
|
| Features |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Color |
|
| Front Panel | |
| LED |
|
| Buttons |
|
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default:
|
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 2 bays:
|
| M.2 |
|
| System Cooling | |
| Fans |
|
| Air Shroud |
|
| Power Supply | |
| 2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies | Dimension (WxHxL):
AC Input:
+12V:
5V SB:
Output Type:
|
| Operating Environment | |
| Environmental Spec. |
|
| General | |
| Standard Parts (Parts Included) | |
Standard Delliste
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X13SEW-TF | 1 | Super X13SEW-TF Motherboard |
| CSE-515B-R801W | 1 | 1U Chassis |
| Cable | ||
| CBL-0082L | 1 | Y SPLIT SATA POWER ADAPTER, PB FREE |
| CBL-0483L | 2 | 7pin SATA (STR to STR), 29cm, PBF |
| CBL-MCIO-1218M5OR | 1 | MCIO x8 (STR to STR),18CM,85OHM,RoHS |
| CBL-MCIO-1218M5-1 | - | MCIO x8 (STR to STR),18CM,85OHM,RoHS |
| Fan | ||
| FAN-0167L4 | 2 | 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers |
| Manual | ||
| MNL-2570-QRG | 1 | 111E-FWTR/FDWTR Quick Reference Guide |
| Riser Card | ||
| RSC-W-66G5 | 1 | 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R |
| RSC-WR-6G5+ | 1 | 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoH |
| Software | ||
| SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Heatsink / Retention | ||
| SNK-P0087P | 1 | 1U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems |
| *Power Supply | ||
| PWS-804S-1R | 2 | 800W 100-240Vac input, Platinum, base module PWS-804P-1R |
| *Power Distributor | ||
| PDB-PT514-2824 | 1 | 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH |
Valgfrie Opsjoner
| Part Number | Quantity | Description |
|---|---|---|
| AOC supporting bracket | ||
| MCP-120-51501-0N | 1 | 1U WIO supporting bracket for SC515B AOC(AOC-P3IMB-M-P2) |
| Fan | ||
| FAN-0163L4 | 6 | Required when supports a 350W CPU |
| TPM security module | ||
| AOM-TPM-9670V-O | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
