BigTwin 3UPI 2U 4-Node, 6x2.5" NVMe, X11DPT-BH, 217BHQ+

SKU: SYS-2029BZ-HNR
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/7060/image_1920?unique=eb779b0

kr 74 354,90 74354.90000000001 NOK kr 74 354,90 Ekskl. mva

kr 74 354,90 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-2029BZ-HNR features four hot-pluggable nodes in a 2U chassis, each supporting dual Intel Xeon Scalable processors, up to 6TB of memory, and multiple high-speed I/O options. It is ideal for hyperscale, hyperconverged computing, and enterprise data centers.

    Nøkkelfunksjoner

    • 6 Hot-swap 2.5" NVMe drive bays; 2 M.2 SATA3 or NVMe support

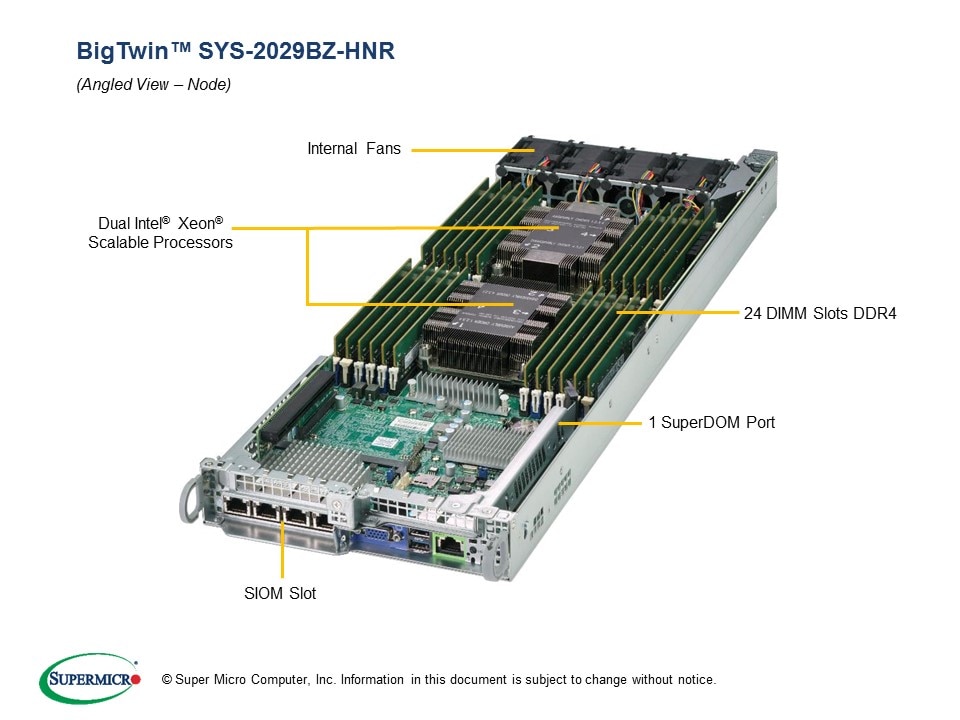

    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • IPMI 2.0 + KVM with dedicated LAN
    • Video via Aspeed AST2500 BMC
    • Compute Intensive Application - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 16 Heavy duty 40x56mm fans with optimal fan speed control (4 fans per node)
    • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
    • 1 Carrier Card slot (M.2 support)
    • 2600W Redundant Power Supplies Titanium Level (96%)
    • 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card

    Viktige bruksområder

    • HPC
    • Data Center
    • Enterprise Server
    • Hyperscale
    • Hyperconverged

    Beskrivelse

    Supermicro's SYS-2029BZ-HNR is engineered for compute-intensive applications such as HPC, data centers, and enterprise server operations. The system includes four hot-pluggable nodes, each capable of hosting dual Intel Xeon Scalable processors and up to 6TB of 3DS ECC DDR4 memory. It also supports Intel Optane DCPMM. For I/O, each node features two PCI-E 3.0 x16 slots, a SIOM card slot for flexible networking, and six hot-swap NVMe drive bays. With advanced management features like IPMI 2.0 + KVM, redundant 2600W power supplies, and optimal cooling systems, the SYS-2029BZ-HNR ensures high availability and reliability.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SYS-2029BZ-HNR
    • SuperServer 2029BZ-HNR (Black)
    Motherboard
    Super X11DPT-BH
    • Super X11DPT-BH
    • Super X11DPT-BH
    Processor
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W*
    Cores
    • Up to 28 Cores
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Safe Consulting Technical Support for additional information.
    System Memory
    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    Network
    • Must bundle with at least oneSIOMnetwork card
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output (per Node)
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    DOM
    • 1 SuperDOM(Disk on Module) port
    Others
    • M.2 and SATA DOM for boot drive only
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM,SPM,SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / APM Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217BHQ+-R2K60FP
    Dimensions and Weight
    Width
    • 17.6" (447mm)
    Height
    • 3.47" (88mm)
    Depth
    • 28.75" (730mm)
    Package
    • 24.65" (H) x 9.76" (W) x 45.28" (D)
    Weight
    • Gross Weight: 85 lbs (38.6kg)
    • Net Weight: 54.5 lbs (24.7 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 3.0 (x16) Low-profile slots
    • 1SIOMcard support(must bundle with network card)
    Drive Bays / Storage (per Node)
    Hot-swap
    • 6 Hot-swap 2.5" NVMe drive bays
    M.2
    • 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B
    System Cooling
    Fans
    • 16 Heavy duty 40x56mm PWM fans with air shroud (4 fans per node)
    AC/DC240V Input Redundant Power Supply
    2600W Redundant Power Supplies with PM Bus
    • 2600W Redundant Power Supplies with PM Bus
    Total Output Power
    • 2600W: 208 – 240Vac
    • 2600W: 220 – 240Vdc (for CQC only)
    Dimension(W x H x L)
    • 45 x 40 x 480 mm
    Input
    • 208-240Vac/15-12.5A / 50-60Hz
    • 220-240Vdc/13.5-12.5A (CQC only)
    +12V
    • Max: 216.6A / Min: 0A
    12Vsb
    • Max: 4.5A / Min: 0A
    Output Type
    • Gold Finger (4HP+2LP-20S output connector)
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DPT-BH4Super X11DPT-BH Motherboard
    CSE-217BHQ+-R2K60FP12U Chassis
    Backplane
    BPN-ADP-6NVME3-1UB46x NVMe ports and 50A power sourcing daughter card for Big Twin
    BPN-NVME3-217BHQ12U 24-Port 4-Node NVMe Backplane Support 6x2.5
    Cable 1
    CBL-PWCD-0376-IS2PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
    Drive Tray(s)
    MCP-220-00127-0B-BULK24Black gen3 Hotswap 2.5 NVMe drive tray, Orange tab/Lock/Bulk
    Air Shroud
    MCP-310-21719-0B4Bigtwin mylar air shroud for X11DPT-BH (4CM fan chassis)
    MCP-310-21720-0B4Bigtwin plastic air shroud for X11DPT-BH (4CM fan chassis)
    Manual
    MNL-2126-QRG12029BZ-HNR Quick Reference Guide
    Riser Card
    RSC-P-64RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
    RSC-R1UTP-E16R41U RHS TwinPro Riser card with one PCI-E x16 slot
    Heatsink / Retention
    SNK-P0067PSMB41U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster
    SNK-P0071VS41U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin)
    Power Supply
    PWS-2K60A-1R21U 2600W Redundant Titanium PWS, 45(W) X 40(H) X 480(L)
    Cooling Fans
    FAN-0193L41640x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan; 4 fans per node x 4 nodes

    Valgfrie Opsjoner

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor
    Intel VROC RAID Key
    AOC-VROCINTMOD1Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC•1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    SuperDOM
    --Supermicro SATA DOM Solutions [Details]
    Network Card(s)
    AOC-S40G-i2Q-Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
    AOC-SGP-i2-Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
    AOC-SGP-i4-Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STG-b4S-Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STGN-i2S-Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    AOC-STGN-i1S-Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
    AOC-STG-i2T-Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    AOC-STG-i2-Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    Carrier Card(s)
    AOC-SMG3-2H8M2-B-2x Hybrid NVMe/SATA M.2 carrier for BigTwin,HF,RoHS
    AOC-SMG2-2TM2-2x SATA M.2 RAID 1 adapter for BigTwin,HF,RoHS
