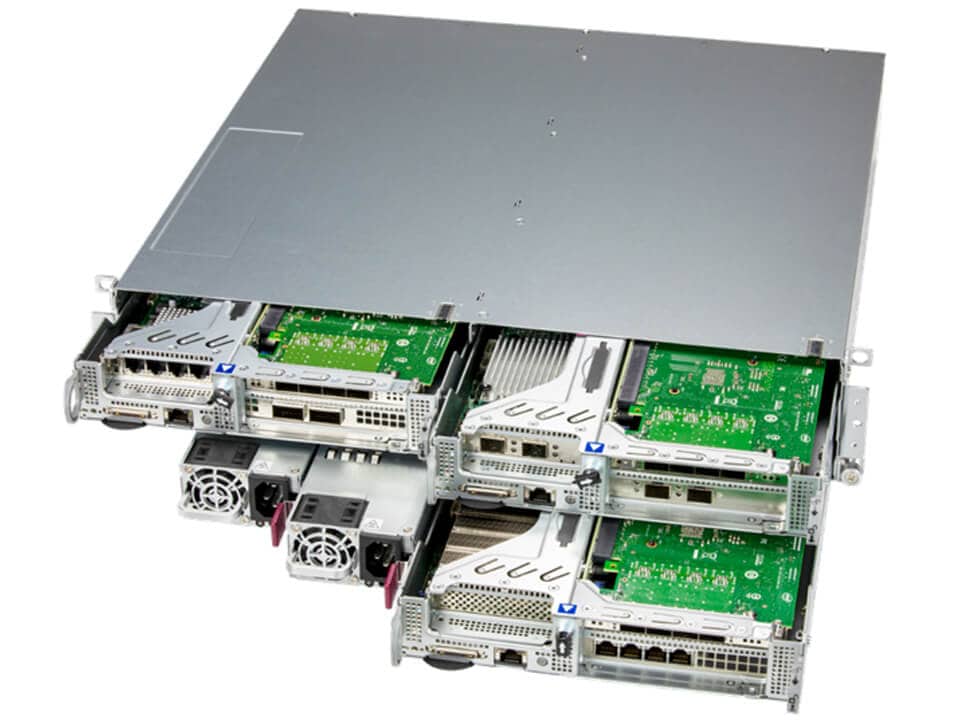

SuperEdge, 2U3N, DC PSU, X12 UP, X12SPED-F + CSE-SE201

SKU: SYS-210SE-31D
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10359/image_1920?unique=829ca0b

kr 50 046,91 50046.91 NOK kr 50 046,91 Ekskl. mva

kr 50 046,91 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Experience unmatched efficiency and versatility with the Supermicro SYS-210SE-31D. Designed for multi-access edge computing and telecom applications, this 2U rackmount system boasts robust features and advanced security mechanisms.

    Nøkkelfunksjoner

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processor (per node)
    • 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM (per node)
    • 2 PCIe Gen4 x16 FHHL slot and 1 PCIe Gen4 x16 HHHL slot (per node)
    • 2 NVMe M.2 2280/22110 (per node)
    • 4 counter-rotated fan speed control (per node); 1 Air Shroud (per node)
    • Front-access 1+1 Redundant 2000W DC Power Supplies (per system)

    Viktige bruksområder

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Telecom DRAN, CRAN, and Edge Core Application
    • Enterprise Edge Computing

    Beskrivelse

    The Supermicro SYS-210SE-31D is tailored for edge computing and telecom requirements, providing a single socket P+ (LGA-4189) with 3rd Gen Intel® Xeon® Scalable processors. It supports up to 2TB ECC DDR4-3200 memory and offers various expansion options, including PCIe Gen4 slots and NVMe M.2 storage. Enhanced with advanced cooling solutions and redundant power supplies, the SYS-210SE-31D also ensures robust security with TPM 2.0 and secure boot capabilities. Ideal for edge core, enterprise edge, and telecom applications, this system guarantees reliability and peak performance in demanding environments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-210SE-31D
    Motherboard
    Installed Motherboard
    • Super X12SPED-F
    Processor (per Node)
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 32C/64T; Up to 48MB Cache
    Note
    • Supports 85W - 270W TDP CPUs (Air Cooled)
    System Memory (per Node)
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices (per Node)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 1 RJ45 1GbE with Intel® I210-AT
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE LAN port(s) (Intel® I210-AT) (IPMI shared on LAN port 1)
    TPM
    • 1 TPM header
    Others
    • 1 KVM dongle (output 1x VGA/1x COM/2x USB 2.0 via KVM cable) port(s)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    BIOS Features
    • SMBIOS 2.8
    • Plug and Play (PnP)
    • PCI FW 3.2
    • ACPI 6.4
    • UEFI 2.8A
    • SMBIOS 2.8/3.5
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-SE201-R2K06P
    Dimensions and Weight
    Height
    • 3.5" (88 mm)
    Width
    • 17.7" (449 mm)
    Depth
    • 16.9" (430 mm)
    Package
    • 9.5" (H) x 29.5" (W) x 23.2" (D)
    Weight
    • Gross Weight: 70.6 lbs (32 kg)
    • Net Weight: 55.1 lbs (25 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • LAN1 activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x16 HHHL slot
    • 2 PCIe 4.0 x16 FHHL slots

    Drive Bays / Storage (per Node)
    M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; VROC required for RAID)
    System Cooling
    Air Shroud
    • 3 Air Shroud(s)
    Fans
    • 12x 4cm heavy duty fans with optimal fan speed control 40x40x56mm Fan(s)
    Power Supply
    2x 2000W Redundant (1 + 1) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    Total Output Power:
    +12V:
    • Max: 166.6A

    12V SB:
    • Max: 4A

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPED-F3Super X12SPED-F Motherboard
    CSE-SE201-R2K06P12U Chassis
    Add-on Card / Module
    AOM-BPN-SE3N-P1Backplane for SuperEdge 2U3N,RoHS
    Cable
    CBL-0218L111.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
    CBL-PWEX-1058248VDC input power cable for PWS-2K03D-1R, 4M, 8AWG,RoHS
    Riser Card
    RSC-W-66G431U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
    RSC-WR-631U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
    Software
    SFT-OOB-LIC3License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077V3X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
    *Power Supply
    PWS-2K06F-1R22000W 1U -48Vdc single output Redundancy power supply
    *Power Distributor
    PDB-PT201-DSG2Super Edge pass through board support Ultra powers up to 6KW

    Valgfrie Opsjoner

    Part Number Quantity Description
    Optional sliding rail kit
    MCP-290-00144-1N-2U fixed rail set, quick release, default for 2,3U 17.6"W, 26.5"-33.5" D
    TPM security module
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
