X12DPG-QBT6-P; 747BTS-R2K20BP, HF,RoHS/REACH

SKU: SYS-740GP-TNRBT
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10523/image_1920?unique=f20e94f

kr 39 319,25 39319.25 NOK kr 39 319,25 Ekskl. mva

kr 39 319,25 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-740GP-TNRBT delivers outstanding performance with dual socket P+ (LGA-4189) support, up to 4TB DDR4 RAM, and multiple high-capacity GPU support, making it ideal for AI and High-Performance Computing workloads.

    Nøkkelfunksjoner

    • 16 DIMM Slots; Up to 4TB DRAM; Up to 6TB Intel® Optane™ Persistent Memory  ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
    • 4 PCIe 4.0 x16 (double-width) slots, 2 PCIe 4.0 x16 (single-width) slots,1 PCIe 4.0 x8 LP
    • Total 8x 3.5" Hot-swap drive baysUp to 8 NVMe drives (4 NVMe drives supported by default)2 M.2 NVMe or SATA for boot drive only
    • 4 Removable heavy duty fans w/ Optimal Fan Speed Control
    • 2x 2200W redundant Titanium level power supplies

    Viktige bruksområder

    • High Performance Computing
    • AI/Deep Learning Training

    Beskrivelse

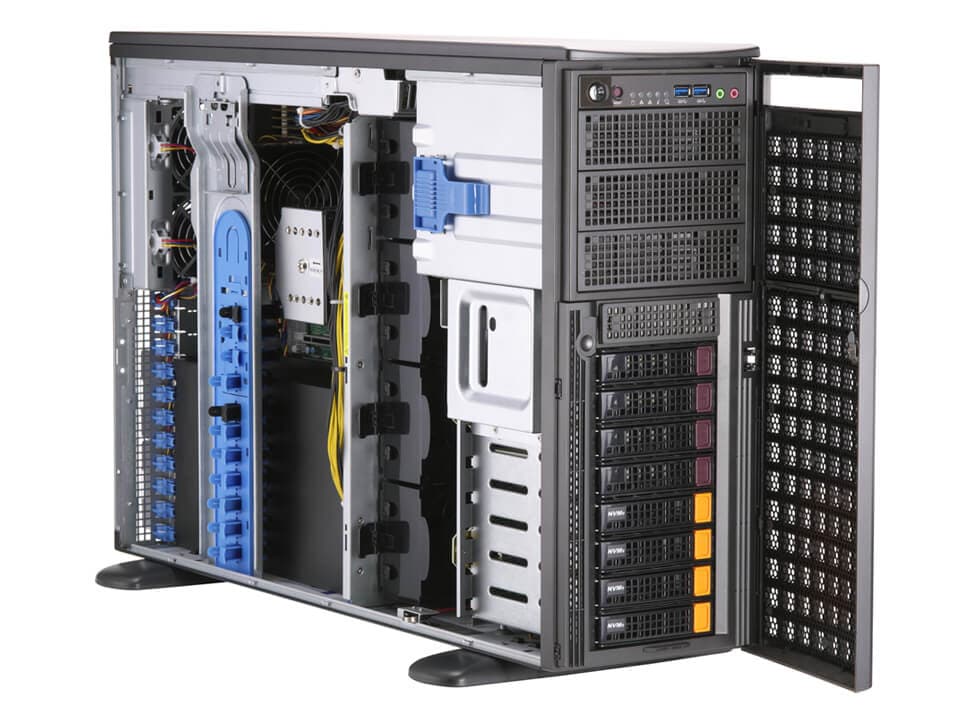

    The Supermicro SYS-740GP-TNRBT 4U Tower server is designed for high-demand applications such as AI and High Performance Computing. Featuring dual 3rd Gen Intel® Xeon® Scalable processors, 16 DIMM slots supporting up to 4TB DDR4 RAM, and the capability for up to 4 double-width GPUs. The system ensures robust performance with its 2200W redundant Titanium level power supplies, efficient cooling with 4 removable heavy-duty fans, and extensive storage options including 8 hot-swap drive bays and 2 M.2 NVMe/SATA slots. Advanced management and security features like SuperCloud Composer, SuperServer Manager, TPM 2.0, and Silicon Root of Trust ensure seamless operation and data integrity.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-740GP-TNRBT
    Motherboard
    Installed Motherboard
    • Super X12DPG-QBT6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache per CPU
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 4 double-width GPUs
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCIe
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GbE with Broadcom® BCM57416
    Input / Output
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • Full-Tower
    Model
    • CSE-747BTS-R2K20BP
    Dimensions and Weight
    Height
    • 18.1" (460 mm)
    Width
    • 7" (178 mm)
    Depth
    • 26.5" (673 mm)
    Package
    • 12.7" (H) x 27" (W) x 37.5" (D)
    Weight
    • Gross Weight: 57 lbs (25.85 kg)
    • Net Weight: 52.9 lbs (24 kg)
    Available Color
    • black
    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power On
    • System Overheat / Fan Fail LED
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 4 PCIe 4.0 x16 FHFL slots
    • 2 PCIe 4.0 x16 LP slots
    • 1 PCIe 4.0 x8 LP slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 4 front hot-swap 3.5" SAS/SATA drive bays
    • 4 front hot-swap 3.5" NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe/SATA slots (M-key)
    System Cooling
    Fans
    • 4 heavy duty fans with optimal fan speed control
    Power Supply
    1x 2200W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 230-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12DPG-QBT61Super X12DPG-QBT6 Motherboard
    CSE-747BTS-R2K20BP1Full-Tower Chassis
    Backplane
    BPN-NVME4-747N-S818port 3.5"HDD/NVMe BPN 4U TowerCSE,8ports NVMe4/SAS/SATA,RoH
    Cable
    CBL-PWCD-09002PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    CBL-PWEX-10404PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    CBL-SAST-1230-1002Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM,
    CBL-SAST-1230-852Slimline x8 (LE) to Slimline x8 (RE),INT,30CM,85 OHm,R
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0216L44 TO 4 PIN FAN POWER CABLE, 210MM
    CBL-0286L24 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)
    Drive Tray(s)
    MCP-220-00150-0B4NVMe Panetone 159C on Latch
    MCP-220-00073-0B3Black 5.25 drive tray w/o rail (SC747)
    Parts
    MCP-260-00150-0N1STD I/O Shield for X12DPG-QT with EMI Gasket
    MCP-290-74701-0B1Black plastic top cover for SC747
    MCP-290-74702-0N1GPU Card Holder (11 slots) for SC747TQ, SC842
    MCP-290-74703-0B1fixed 3.5" dummy cover for SC747
    MCP-290-74709-0B1Plastic feet (2 pcs/set) for 4U tower chassis, black color
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0080AP424U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers
    *Power Supply
    PWS-2K20A-1R21U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
    *Power Distributor
    PDB-PT747-68241Power Distributor Board is for 4U GPU solution using regular
    *Fan
    FAN-0082L4280x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
    Fan-0114L4292x38mm 4-PIN PWM FAN W/ HUS for SC747
    FAN-0138L4292x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
    *Front Bezel
    MCP-210-74701-0B1SC747 plastic front bezel
    *Front Panel
    MCP-280-74702-0N1SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)
