  2. Server X12
  3. Xeon ICX-D, X12SDV-8C-SPT4F, 101F,RoHS

Xeon ICX-D, X12SDV-8C-SPT4F, 101F,RoHS

SKU: SYS-E200-12D-8C
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10398/image_1920?unique=829ca0b

kr 21 980,32 21980.32 NOK kr 21 980,32 Ekskl. mva

kr 21 980,32 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-E200-12D-8C Mini-ITX system offers an exceptional blend of performance, security, and network features with the Intel Xeon Processor D-1736NT, making it suitable for a variety of embedded and network applications.

    Nøkkelfunksjoner

    • Intel® Xeon® Processor D-1736NT, CPU TDP 67W, Intel® Quick Assist Technology
    • 2 DIMMs Slots; Up to 128GB DDR4-2666 ECC and Non-ECC RDIMM/UDIMM
    • 1x dedicated LAN for IPMI2x 10GbE Base-T LAN ports2x 25GbE SFP28 LAN ports
    • 1 M.2 PCIe 4.0 x4/SATA 3.0, M-Key 2280

    Viktige bruksområder

    • Virtualization Server
    • Firewall Applications
    • Network Security Appliance
    • Embedded Networking Applications

    Beskrivelse

    The Supermicro SYS-E200-12D-8C is designed for versatile applications including virtualization, firewall, and network security. It houses the powerful Intel Xeon Processor D-1736NT, supports up to 128GB of DDR4 memory, and offers multiple high-speed network connections including 10GbE and 25GbE ports. With advanced management capabilities and robust security features, this Mini-ITX system ensures optimal performance and reliability.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E200-12D-8C
    Motherboard
    Installed Motherboard
    • Super X12SDV-8C-SPT4F
    Processor
    CPU
    • Single processor(s)
    • Intel® Xeon® Processor D-1736NT
    Core Count
    • Up to 8C/16T; Up to 15MB Cache
    Note
    • Supports up to 67W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 2 DIMM slots
    • Max Memory (1DPC): Up to 128GB 2933MT/s ECC/non-ECC DDR4 RDIMM/UDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® SoC
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X550-AT2
    • 2 SFP28 25GbE
    • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 SFP28 25 GbE LAN port(s)
    • 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
    USB
    • 2 USB 3.0 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s) (Rear)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    BIOS Features
    • Plug and Play (PnP)
    • SMBIOS 3.0 or later
    • ACPI 6.0
    • Riser Card audio detection support
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • +12V DC Power Input
    • CPU thermal trip support for processor protection
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    Chassis
    Form Factor
    • Mini-ITX
    Model
    • CSE-101F
    Dimensions and Weight
    Height
    • 1.69" (43 mm)
    Width
    • 7.68" (195 mm)
    Depth
    • 8.89" (225.8 mm)
    Package
    • 11.22" (H) x 14.96" (W) x 5.47" (D)
    Weight
    • Gross Weight: 7.5 lbs (3.4 kg)
    • Net Weight: 2.76 lbs (1.25 kg)
    Available Color
    • Black

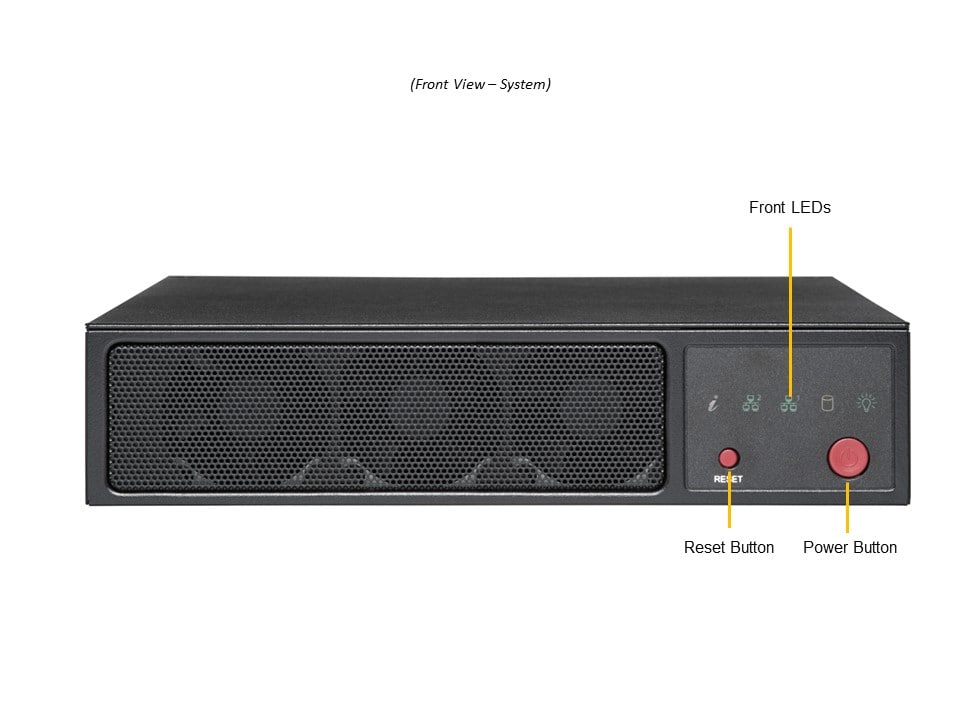

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LED
    • Unit Identification (UID) LED
    Drive Bays / Storage
    M.2
    • 1 M.2 PCIe 4.0 x4 NVMe/SATA slot (M-key 2280)
    System Cooling
    Fans
    • 3x 4-PIN PWM 40x40x28mm Fan(s)
    Power Supply
    1x 180W power supply
    Dimension (WxHxL):
    AC Input:
    • 180W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SDV-8C-SPT4F1Super X12SDV-8C-SPT4F Motherboard
    CSE-101F1Mini-ITX Chassis
    Fan
    FAN-0065L424028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Power Supply
    MCP-250-10133-0N1180W DC power adapter with US power cord 18AWG 6ft
    Manual
    MNL-2653-QRG1E200-12D-4C/8C/10C Quick Reference Guide
