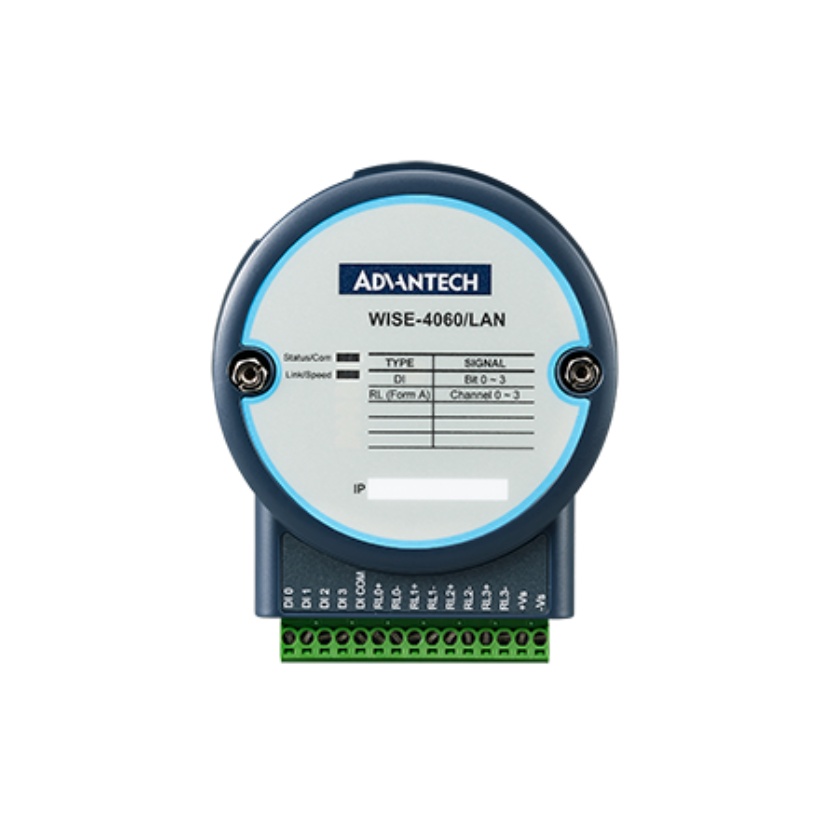

4-ch DI and 4-ch Relay IoT Ethernet I/O Module

4-ch DI and 4-ch Relay IoT Ethernet I/O Module

SKU:	WISE-4060LAN-B
GTIN (EAN/UPC):	4719879824940
Brand:	Advantech

kr 1 981,98 1981.98 NOK kr 1 981,98 Ekskl. mva

kr 1 981,98 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The WISE-4060LAN-B is a 4-channel digital input and 4-channel relay output Ethernet I/O module. It supports multiple protocols like Modbus/TCP and MQTT and features local logging with RTC time stamp. Ideal for industrial applications.

Nøkkelfunksjoner

Supports Modbus/TCP, TCP/IP, UDP, and other protocols
Offers RTC time-stamped local logging
Enables mobile device configuration via HTML5
Operates with 10~30 VDC power
Reverse power protection included

Beskrivelse

WISE-4060LAN-B offers four digital input channels and four relay outputs, supporting various communication protocols including Modbus/TCP and MQTT. It's equipped with local logging capabilities, RTC timestamp support, and offers mobile device web configuration in HTML5 format. This module also includes reverse power protection and operates within a wide temperature range of -40~70 °C.

Produktspesifikasjoner

Specification	Details
General
Connectors	1 x RJ45, 1 x 15-pin plug-in screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Communications
Interface	Ethernet
Isolated Digital Input
Channels	4
Input Voltage	Dry Contact Logic level 1: close to DI COM Logic level 0: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Isolation Protection	3000 Vrms
Environment
Operating Temperature	-40~70 °C (-40~158 °F)
Storage Humidity	0~95% RH (non-condensing)
Storage Temperature	-40~85 °C (-40~185 °F)
Relay Output
Channels	4
Contact Rating (Resistive)	3 A @ 30 VDC, 5 A @ 250 VAC
Relay Type	1 x Form A
Power Requirements
Input Voltage	10~30 VDC
