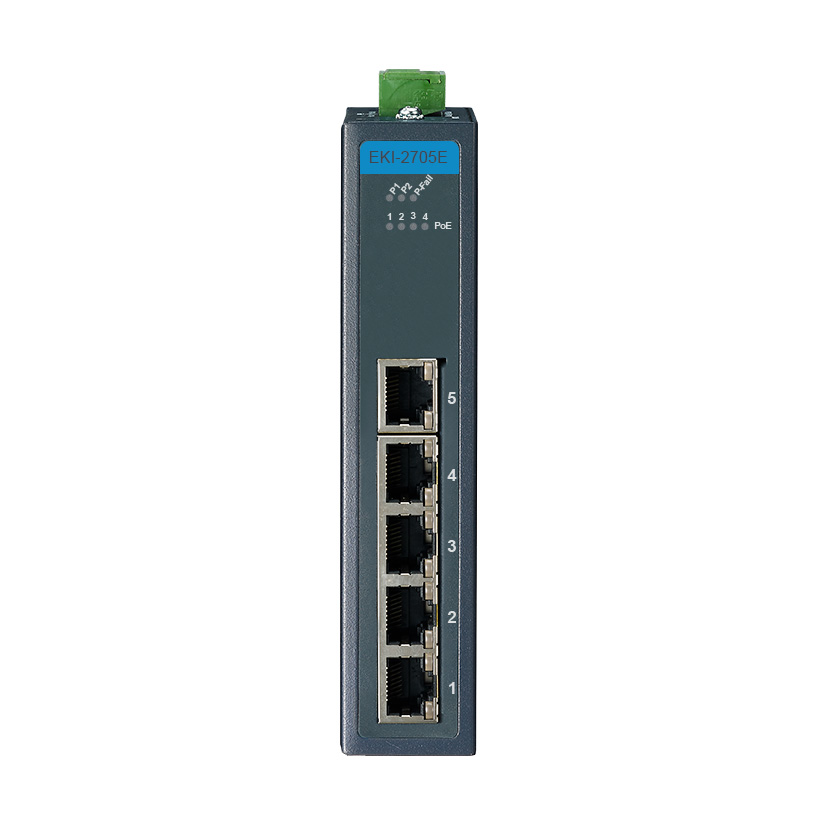

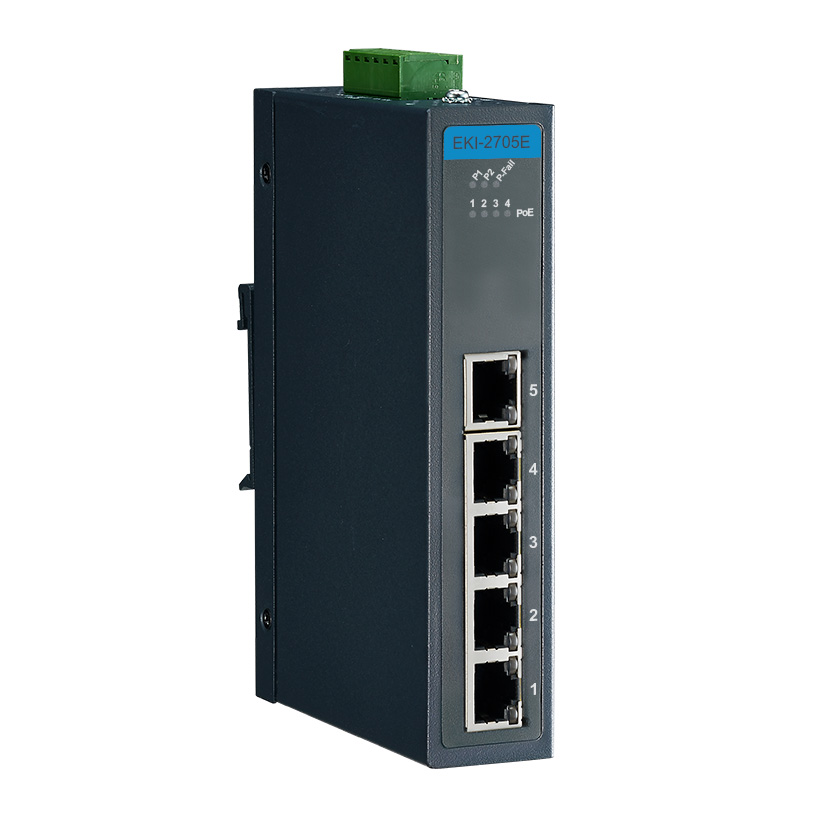

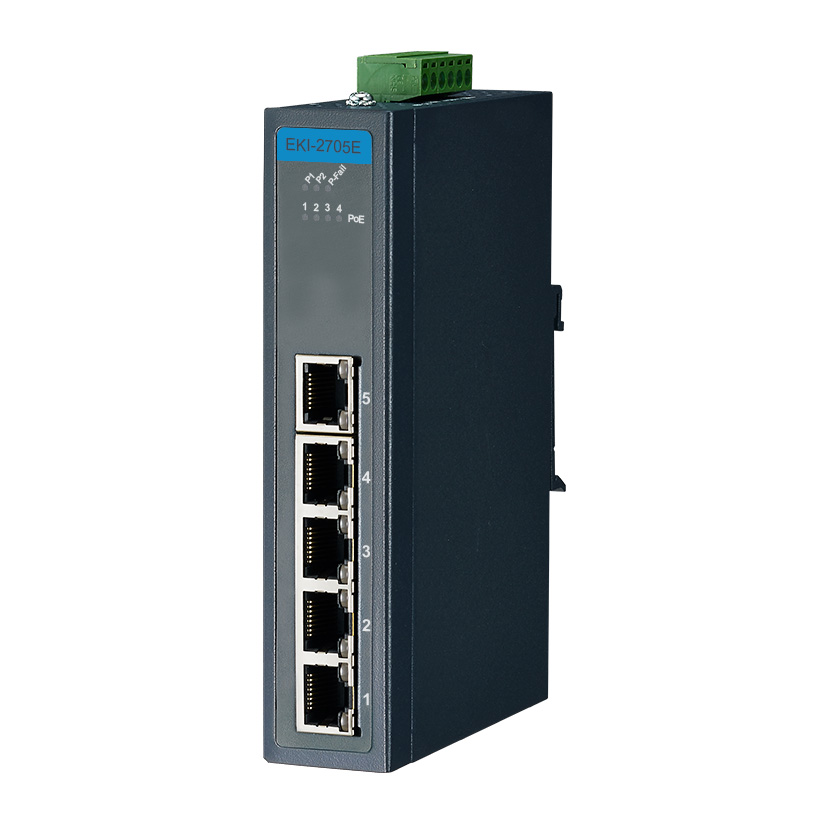

4FE+1GE Unmanaged Ind. PoE Switch W/T

This combination does not exist.

Description

Specification	Details
Power
Power Connector Type	6-pin Removable Screw Terminal (Power & Relay)
Power Consumption	Max 2W
Power Input (DC)	24 ~ 48 VDC
Power Operating Current	1A @ 24 VDC
Interface
Port Number	5
Environment
Operating Temperature	-40 ~ 75°C (-40 ~ 167°F)
Relative Humidity	10~95%
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Enclosure (Metal)	Metal
IP Rating	IP30
Mounting	DIN-rail, Wall
Weight	0.45 kg (1.0 lb)
Ethernet Communication
RJ-45 Port Connector Type	5 x RJ-45
RJ-45 Transmission Distance	100 m
RJ-45 Transmission Speed	10/100 Mbps ; 10/100/1000 Mbps
Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
Freefall	IEC 60068-2-32
Safety	UL 62368
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
MTBF
Method	Telcordia(Relax), GB
Time	1,697,086 hours
Warranty
Warranty Period	5 years
PoE Information
PoE Port Number	4
