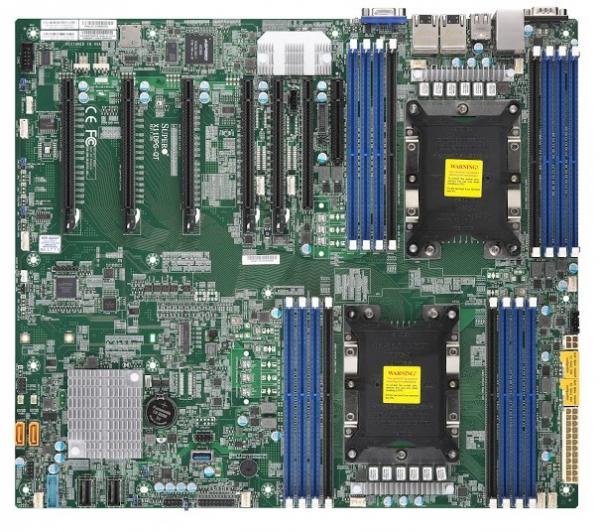

X11 Purely Platform, 4U/4GPU Optimized (BULK)

SKU: MBD-X11DPG-QT-B
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/9880/image_1920?unique=698607b

kr 9,781.95 9781.95 NOK kr 9,781.95 VAT Excluded

kr 9,781.95 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11DPG-QT-B is a high-performance, dual-socket server motherboard designed for the latest Intel Xeon Scalable processors, offering up to 4TB of ECC memory, multiple PCIe slots, and superior network connectivity.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
    • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
    • Intel® C621
    • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHzOr 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
    • 6 PCIe 3.0 x16,1 PCIe 3.0 x4 (in x8 slot)M.2 Interface:PCIe 3.0 x4M.2 Form Factor:2280, 22110M.2 Key:M-Key
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 5 USB 3.0 ports, 4 USB 2.0 ports
    • HD Audio with optical S/PDIF

    Key Applications

    • Data centers
    • High-performance computing
    • Virtualization
    • Enterprise servers
    • Cloud computing
    • Big Data analytics

    Description

    The X11DPG-QT-B from Supermicro is a robust and versatile dual-socket LGA-3647 server motherboard ideal for demanding data center environments. It supports the latest 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors, offering up to 28 cores per CPU with a TDP of up to 205W. With 16 DIMM slots, it supports up to 4TB of DDR4 ECC memory and up to 2TB Intel Optane DC Persistent Memory in memory mode. The board boasts extensive connectivity options, including 6 PCIe 3.0 x16 slots, 10 SATA3 ports with RAID capabilities, dual 10GBase-T Ethernet ports, and a variety of USB ports. Integrated IPMI 2.0 and KVM with a dedicated LAN port provide efficient remote management capabilities.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11DPG-QT
    Physical Stats
    Form Factor
    • Proprietary
    Dimension
    • 15.12" x 13.2" (38.4cm x 33.53cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
    Core
    • Up to 28 cores
    Note
    • BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
    • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 128GB, 256GB
    • RDIMM: 64GB, 128GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® C621
    SATA
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Audio
    • 7.1 HD Audio Header
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 5 USB 3.0 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SuperDOM(Disk on Module) port with build power
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 6 PCIe 3.0 x16,
    • 1 PCIe 3.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: PCIe 3.0 x4
    • Form Factor: 22110, 2280
    • Key: M-Key
    System BIOS
    BIOS Type
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, Supports system management utility, HT, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, 5+1 Phase-switching voltage regulator, 10 -fan status
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    FAN
    • 10x 4-pin fan headers (up to 10 fans)
    • Status monitoring for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Other Features
    • RoHS
    • Node Manager Support
    • CPU thermal trip support for processor protection
    • Chassis intrusion detection
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
