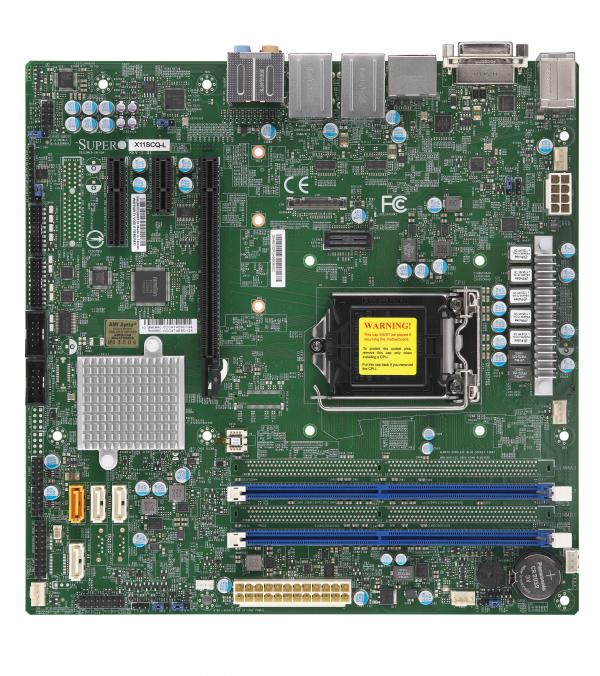

X11SCQ-L, Micro ATX, Coffelake PCH H310, LGA1151

SKU: MBD-X11SCQ-L-B
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/9925/image_1920?unique=cd088ac

kr 2,767.69 2767.69 NOK kr 2,767.69 VAT Excluded

kr 2,767.69 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SCQ-L-B motherboard is tailored for robust performance with Intel 8th/9th Gen processors. Featuring dual LAN ports, multiple expansion slots, diverse I/O options, and advanced health monitoring, it's suitable for a variety of computing needs.

    Key Features

    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® ProcessorSingle Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
    • Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controller
    • Intel® H310
    • Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
    • 1 PCIe 3.0 x161 PCIe 2.0 x41 PCIe 2.0 x1
    • Intel® H310 controller for 4 SATA3 (6 Gbps) ports;
    • 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,2 Independent Displays

    Key Applications

    • High-performance Computing
    • Office Workstations
    • Light Gaming
    • Home Servers
    • Multimedia Workstations
    • Educational Systems
    • Compact PCs

    Description

    The Supermicro MBD-X11SCQ-L-B motherboard integrates the Intel® H310 chipset and supports a range of Intel 8th/9th Generation processors. This motherboard supports up to 32GB DDR4 memory in 2 DIMM slots, and provides comprehensive I/O options including USB 3.1, DisplayPort, HDMI, DVI, and eDP for various connectivity needs. The enhanced thermal management, robust power configuration, and advanced monitoring features ensure optimal performance and reliability for demanding applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCQ-L
    Physical Stats
    Form Factor
    • uATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MT/s
    Memory Type
    • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® H310
    SATA
    • Intel® H310 controller for 4 SATA3 (6 Gbps) ports
    Audio
    • 7.1 HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 4 USB 3.1 Gen1 port(s) (2 rear type A; 2 rear type C)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s), 1 eDP (Embedded DisplayPort) port(s)
    Serial Port
    • 6 COM Port(s) (6 header)
    DOM
    • 1 SuperDOM(Disk on Module) port with build power
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16
    • 1 PCIe 2.0 x4
    • 1 PCIe 2.0 x1
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • UEFI 2.6
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, NMI, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, ATX Power connector
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 1.2V (VDIMM), +5V, +3.3V, +12V, Memory Voltages
    LED
    • Power LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Fan speed control
    • 4 fans with tachometer monitoring
    Other Features
    • WOL
    • RoHS
    • Chassis intrusion header
    • ATX Power connector
    • ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00125-0N1Standard I/O Shield for X11SCQ/-L with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L457.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00125-0N1Standard I/O Shield for X11SCQ/-L with EMI Gasket
    QRG
    MNL-2110-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Dual Serial Port Cable for COM3/4 and COM5/6
    CBL-CUSB-0984-20CM Dual Serial Port Cable (Use with COM3/4, COM5/6)
    Single Serial Port Cable for COM1 and COM2
    CBL-0010L-9-Pin 26CM Serial Port Cable (Use with COM1, COM2)
