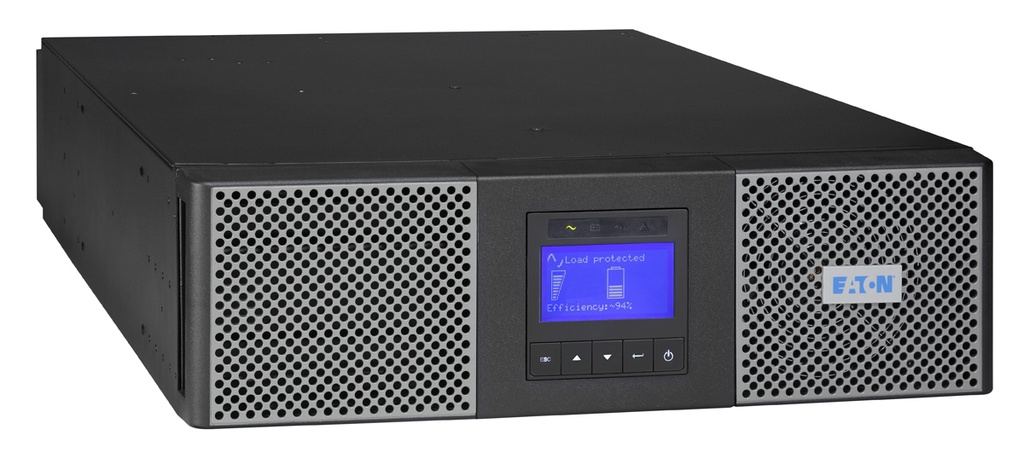

Eaton UPS 9PX 5000i RT3U Netpack

SKU:	9PX5KiRTN
Brand:	Eaton

kr 55 106,11 55106.11 NOK kr 55 106,11 Ekskl. mva

kr 55 106,11 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

Eaton 9PX5KIRTN. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: C13 coupler, C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 11 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 13 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report...

Nøkkelfunksjoner

Double-conversion (Online)
5 kVA 4500 W
Waveform: Pure sine
11 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black

Viktige bruksområder

Data Centers
IT Rooms
Infrastructure
Server Rooms
Network Closets
Enterprise Applications
Industrial Environments

Beskrivelse

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)

Produktspesifikasjoner

Specification	Details
Features
UPS topology	Double-conversion (Online)
Output power capacity	5
Output power	4500
Waveform	Pure sine
Input operation voltage (min)	176
Input operation voltage (max)	276
Input frequency	40/70
Output operation voltage (min)	200
Output operation voltage (max)	240
Output frequency	50/60
Number of input phases	1
Efficiency	94
Power factor	0.9
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	2
Input current Total Harmonic Distortion (THD)	5
Noise level	45
Ports & interfaces
AC outlet types	C13 coupler,C19 coupler,Terminal
Power plug	Terminal
AC outlets quantity	11
USB port	Yes
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	13
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Form factor	Rackmount/Tower
Rack capacity	3U
Product colour	Black
Display type	LCD
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40
Certificates
Certification	IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL
Packaging content
Rack mount kit	Yes
Safety regulation & standards
Safety	IEC/EN 62040-1, UL 1778
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	440
Depth	685
Height	130
Weight	48000
Packaging data
Management card included	Yes
Bundled software	Intelligent Power Software suite
Logistics data
Harmonized System (HS) code	85078000
Other features
Interface	USB, RS232
Nominal output voltage	230
Nominal input voltage	230
