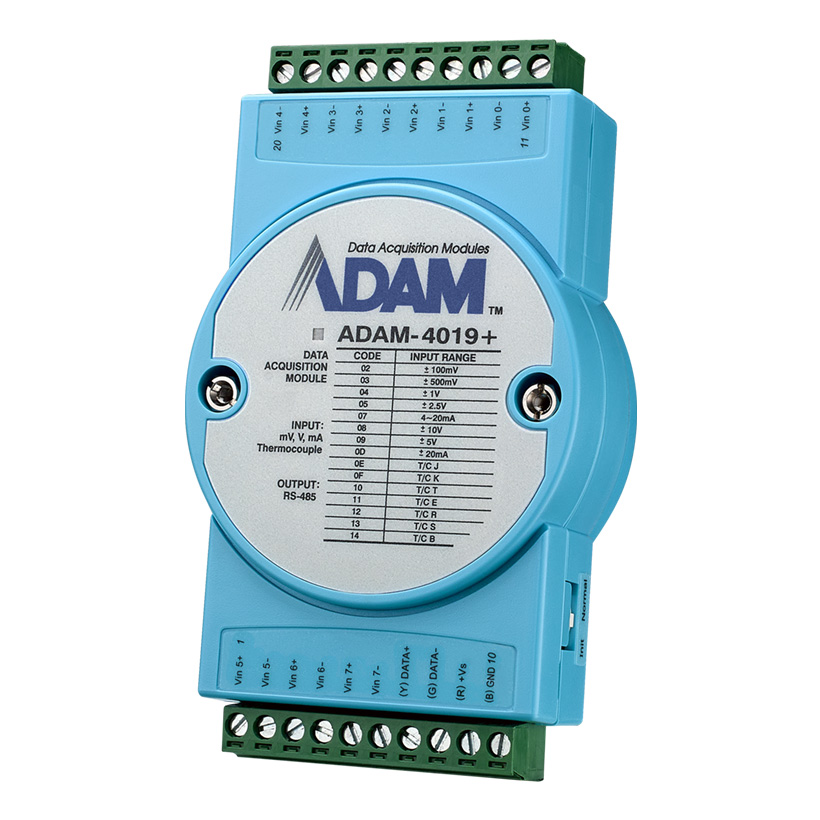

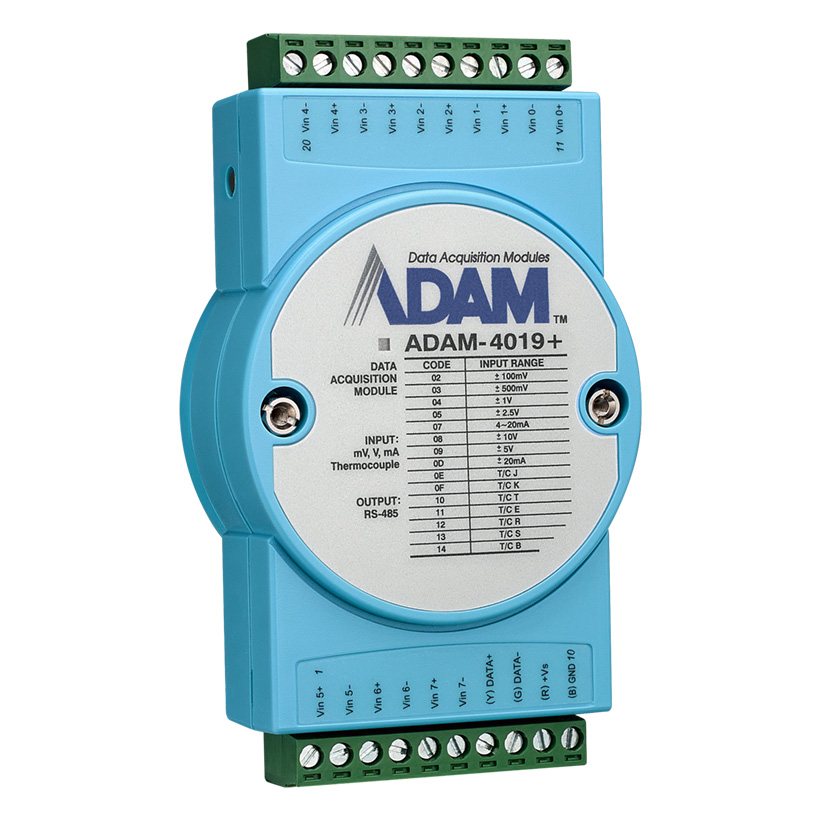

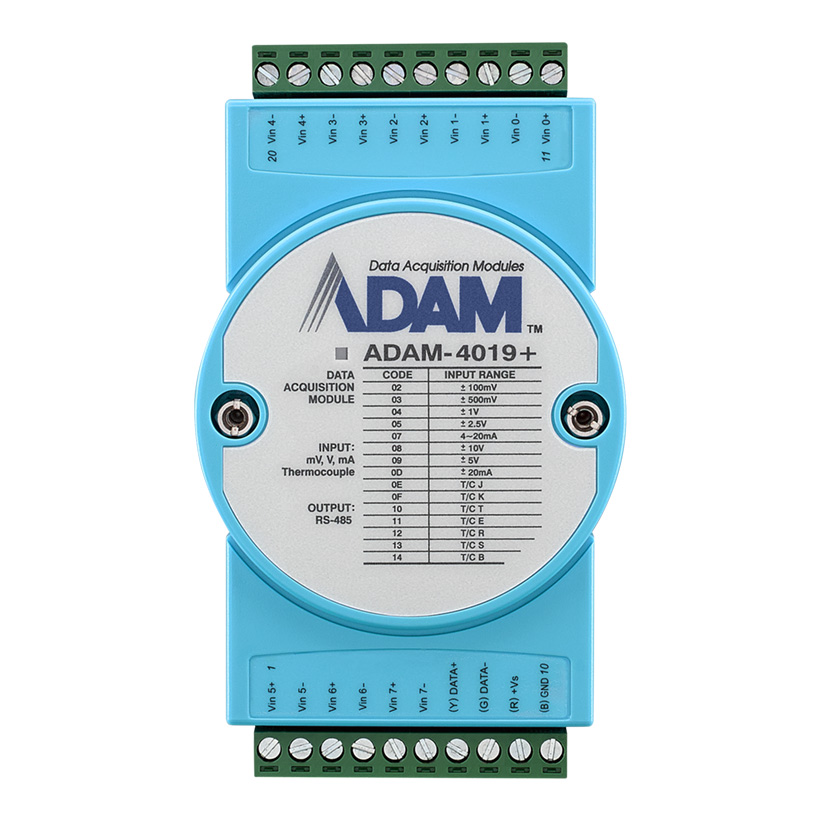

8-Channel Universal Analog Input Module

SKU: ADAM-4019+-F
GTIN (EAN/UPC): 4719879821420
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12900/image_1920?unique=9fe4ff9

kr 4 842,32 4842.32 NOK kr 4 842,32 Ekskl. mva

kr 4 842,32 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    The ADAM-4019+-F is an 8-channel universal analog input module designed for versatile thermocouple inputs. It supports multiple temperature ranges and is equipped with Modbus RTU/ASCII protocols. With built-in watchdog timer and isolation protection, it's ideal for various industrial applications.

    Nøkkelfunksjoner

    • 8-Channel Universal Analog Input
    • Supports Multiple Thermocouple Types
    • Isolation Protection and Burn-out Detection
    • Modbus RTU/ASCII Protocols
    • Wide Temperature Range Operation

    Beskrivelse

    The ADAM-4019+-F features an 8-channel analog input, capable of interfacing with various signal types including mA, mV, and V. It supports Modbus RTU/ASCII protocols and offers advanced features such as isolation protection and burn-out detection. Ideal for industrial environments, its robust design ensures reliable data acquisition across wide temperature ranges.

    Produktspesifikasjoner

    Specification Details
    Analog Input
    Burn-out Detection
    • Yes
    Input Range
    • ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, 0~20mA, 4 ~ 20 mA, ±20 mA, 0~100 mV, 0~500 mV, 0~1 V, 0~2.5 V, 0~5 V, 0~10 V
    General
    Connectors
    • 2 x 10-pin plug-in screw terminal
    Protocol
    • ASCII command, Modbus/RTU
    Hardware
    Certification
    • CE, FCC
    Communications
    Interface
    • RS-485
    Environment
    Isolation Voltage
    • 3,000 VDC
    Operating Temperature
    • -10~70 °C (14~158 °F)
    Power Requirements
    Input Voltage
    • 10~30 VDC
    Thermocouple Input
    Channels
    • 8
    Input Type
    • mA, mV, V, T/C: J, K, T, E, R, S, B, No type
    Resolution
    • 16-bit
    Sample Range
    • 10 S/s (sum)
    Temperature Range
    • Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C), Type No (-200~1300° C)
