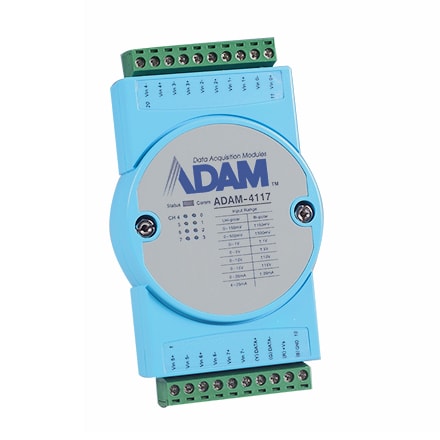

8-Ch AI Module

SKU:	ADAM-4117-C
GTIN (EAN/UPC):	4719879821482
Brand:	Advantech

kr 3 360,39 3360.39 NOK kr 3 360,39 Ekskl. mva

kr 3 360,39 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The ADAM-4117-C is an 8-channel analog input module, ideal for remote I/O applications. It supports a wide range of voltage and current inputs, with robust temperature operation and noise protection.

Nøkkelfunksjoner

8ch Analog Input
Wide Voltage Range
4kV Noise Protection
RS-485/USB Interface
3000VDC Isolation

Viktige bruksområder

Remote I/O Monitoring
Industrial Automation
Data Acquisition Systems
Environmental Monitoring
Energy Management Solutions

Beskrivelse

The ADAM-4117-C module features 8 analog input channels, supporting both voltage and current ranges. It operates in harsh environments with temperatures ranging from -40 to 85°C and provides noise protection with 4kV surge power, 4kV EFT, and 8 kV ESD protection. Interface options include RS-485 and USB, and it offers a high isolation voltage of 3000VDC. The module is an RS-485 remote I/O solution with CE, FCC certifications.

Produktspesifikasjoner

Specification	Details
Analog Input
Channels	8
Input Range	±15 V, ±10 V, ±5 V, ±1V, ±0.5 V, ±0.15 V, 0~15 V, 0~10 V, 0~5 V, 0~1 V, 0~0.5 V, 0~0.15 V, ±20 mA, 4~20 mA, 0~20 mA
Input Type	V, mV, mA
Resolution Bits	16-bit
Sampling Rates S/s	100 S/s (sum)
General
Connectors	2 x 10-pin plug-in screw terminal
Protocol	ASCII command, Modbus/RTU
Hardware
Certification	CE, FCC
Communications
Interface	RS-485, Micro USB
Environment
Isolation Voltage	3,000 VDC
Operating Temperature	Range: -40~85 °C (-40~185 °F)
Power Requirements
Input Voltage	10~48 VDC
