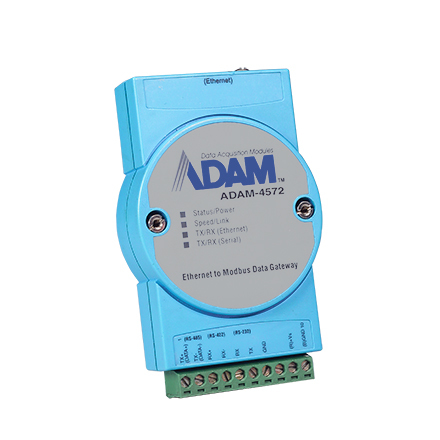

1-port Modbus Gateway

SKU: ADAM-4572-CE
GTIN (EAN/UPC): 4719879821543
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12910/image_1920?unique=a170b45

kr 2 875,16 2875.16 NOK kr 2 875,16 Ekskl. mva

kr 2 875,16 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    ADAM-4572-CE is a 1-port RS-232/422/485 Serial Modbus Gateway, offering capabilities such as seamless integration into Modbus network environments and effective field data access.

    Nøkkelfunksjoner

    • 10/100 Mbps Communication Speeds
    • Supports Up to 8 Clients
    • Compatible with HMI Software
    • Offers Up to 31 Serial Ports
    • Surge Protection Available

    Beskrivelse

    The ADAM-4572-CE is engineered to seamlessly operate within industrial Modbus environments, supporting RS-232/422/485 interfaces. It provides surge protection, automatic RS-485 data flow control, and supports 10/100 Mbps communication, making it ideal for industrial communication scenarios.

    Produktspesifikasjoner

    Specification Details
    General
    Ethernet Port Count
    • 1
    Mounting
    • DIN, Panel
    Power
    • 10-30VDC
    Serial Port Count
    • 1
    Serial Type
    • RS-232/422/485
    Temperature
    • 0 to 60°C
    Power
    Power Consumption
    • 2.5W
    Power Input (DC)
    • 10 ~ 30 VDC
    Power Operating Current
    • 0.3A @ 12 V
    Protection
    Port to Port Isolation
    • -
    Serial Communication
    RS-232
    • Yes
    RS-422
    • Yes
    RS-485
    • Yes
    Serial Port Connector Type
    • Terminal block
    Serial Port Number
    • 1
    Software
    Baud Rate
    • 50 ~ 921.6 Kbps
    Configuration
    • Windows utility, Web Browser
    Driver
    • Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
    Operation Mode
    • Modbus RTU Client/Server, Modbus ASCII Client/Server
    Environment
    Operating Humidity
    • 5~95% RH
    Operating Temperature
    • -10 ~ 60°C (14 ~ 140°F)
    Storage Temperature
    • -20 ~ 80°C (-4 ~ 176°F)
    Mechanism
    Dimensions (W x H x D)
    • 70 x 112 x 25 mm
    Enclosure (Plastic)
    • Yes
    IP Rating
    • IP30
    Mounting (DIN-rail)
    • Yes
    Mounting (Wall)
    • Yes
    Weight
    • 125 g
    Ethernet Communication
    Ethernet Standard
    • IEEE 802.3, 802.3u
    RJ-45 Port Connector Type
    • RJ-45
    RJ-45 Port Number
    • 1
    RJ-45 Transmission Speed
    • 10/100 Mbps
    Certification
    EMC
    • CE, FCC
    EMI
    • EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
    EMS
    • EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
    Warranty
    Warranty Period
    • 5 years
    Protocol Support
    Modbus ASCII
    • Yes
    Ethernet
    • Yes
    Modbus RTU
    • Yes
    Modbus TCP
    • Yes
