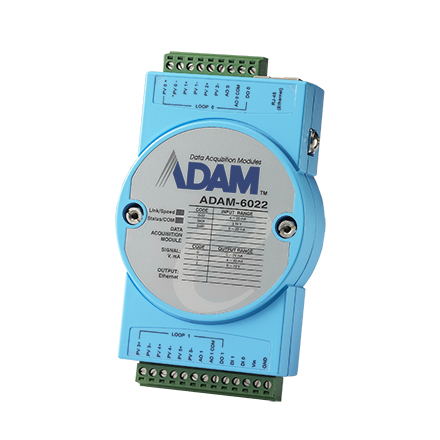

Ethernet-based Dual-loop PID Controller

SKU:	ADAM-6022-A1E
Brand:	Advantech

kr 5 891,61 5891.61 NOK kr 5 891,61 Ekskl. mva

kr 5 891,61 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The ADAM-6022-A1E is an Ethernet-based dual-loop PID controller module integrating 6 analog inputs, 2 analog outputs, 2 digital inputs, and 2 digital outputs, ideal for industrial automation.

Nøkkelfunksjoner

Dual-loop PID control algorithms
Multiple analog I/O ranges
Heating/cooling action mode
Loop open/close control
Built-in watchdog timer

Viktige bruksområder

Industrial Automation
Process Control
Data Acquisition

Beskrivelse

ADAM-6022-A1E is an Ethernet-based dual-loop PID controller designed for precise control applications. It incorporates 3 analog input/1 analog output/1 digital input/1 digital alarm output per PID loop, supporting various analog I/O ranges. It features heating/cooling and loop open/close modes, along with a watchdog timer.

Produktspesifikasjoner

Specification	Details
Analog Input
Channels	6
Input Range	±10 V, 0~20 mA, 4~20 mA
Input Type	V, mA
Resolution(Bits)	16-bit
Sampling Rates(S/s)	10 S/s (sum)
Analog Output
Channels	2
Output Ranges	0~10 V, 0~20 mA, 4~20 mA
Output Type	V, mA
Resolution	12-bit
General
Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Communications
Interface	Ethernet
Isolated Digital Input
Channels	2
Input Voltage	Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Environment
Isolation Voltage	2,000 VDC
Operating Temperature	-10~50 °C (14~122 °F)
Isolated Digital Output
Channels	2
Output Type	Sink
Output Voltage	0~30 VDC
Sink Current	100 mA max./channel
Power Requirements
Input Voltage	10~30 VDC
