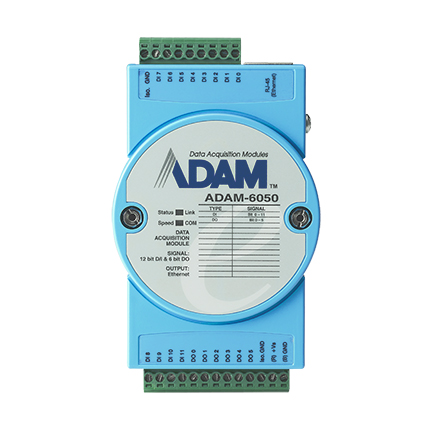

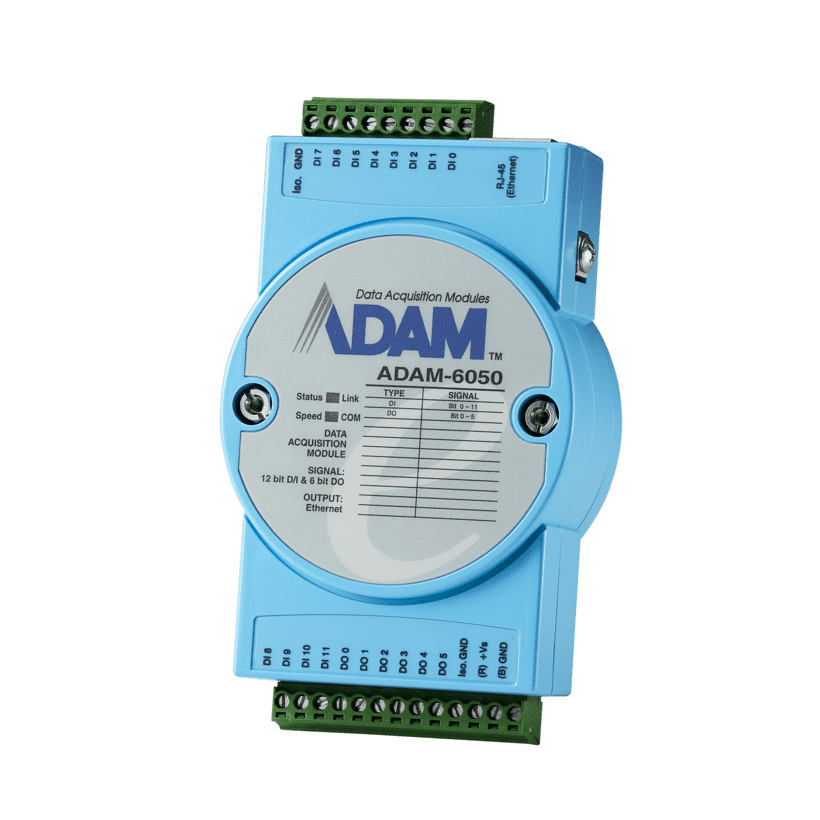

18-Ch Isolated DI/O Module

SKU:	ADAM-6050-D1
GTIN (EAN/UPC):	4719879826777
Brand:	Advantech

kr 2 261,12 2261.12 NOK kr 2 261,12 Ekskl. mva

kr 2 261,12 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The ADAM-6050-D1 is an 18-channel isolated digital I/O module. It supports various protocols and provides cloud access and a built-in web server.

Nøkkelfunksjoner

12ch Digital Input & 6ch Digital Output
Supports MQTT, Modbus TCP
Built-in Web Server
Cloud Access Capabilities
GCL Logic Control
Watchdog Timer for Recovery

Viktige bruksområder

Remote I/O Modulation
Industrial Automation
Data Acquisition
Control Systems
Automated Monitoring
Ethernet Communication

Beskrivelse

The ADAM-6050-D1 offers 12-channel digital input with counter capabilities and 6-channel digital output with pulse output functions. Equipped with protocols like MQTT and Modbus TCP, it provides cloud data updates and logic control with GCL. The module features a built-in web server and a watchdog timer for system recovery, ensuring reliable performance across all operations.

Produktspesifikasjoner

Specification	Details
General
Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Communications
Interface	Ethernet
Counter/Encoder Input
Channels	12
Max Input Frequency	3 kHz
Isolated Digital Input
Channels	12
Input Voltage	Dry Contact: Logic level 0: close to GND, Logic level 1: open; Wet Contact: Logic level 1: 10~30 VDC, Logic level 0: 0~3 VDC
Environment
Isolation Voltage	2,000 VDC
Operating Temperature	-40~70 °C (-40~158 °F)
Isolated Digital Output
Channels	6
Output Type	Sink
Output Voltage	0~30 VDC
Sink Current	100 mA max./channel
Power Requirements
Input Voltage	10~30 VDC
