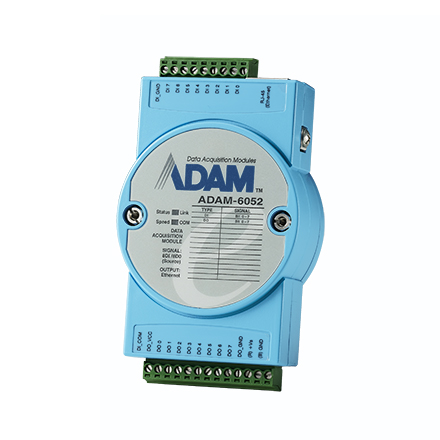

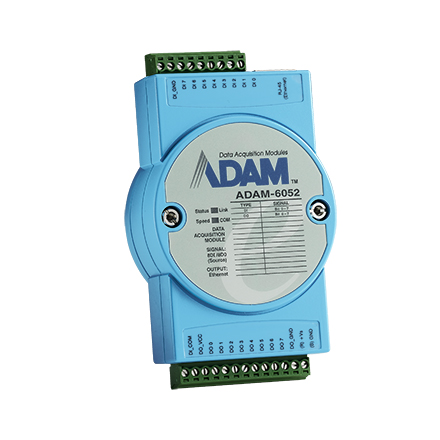

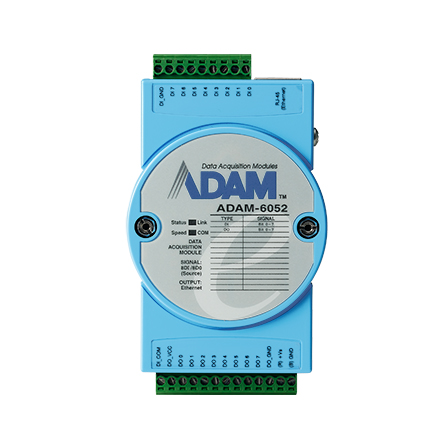

16-Ch Source Type DI/O Module

SKU:	ADAM-6052-D
GTIN (EAN/UPC):	4719879820768
Brand:	Advantech

kr 2 421,49 2421.4900000000002 NOK kr 2 421,49 Ekskl. mva

kr 2 421,49 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The ADAM-6052-D is a versatile Ethernet Remote I/O module featuring 8 channels of both digital input and output. It supports multiple IoT protocols, flexible configurations, and rigorous industry standards.

Nøkkelfunksjoner

8-ch DI, 8-ch DO Ethernet-based smart I/O
Peer-to-Peer and GCL function
Multiple protocol supports: Modbus/TCP, MQTT, SNMP
Flexible user-defined Modbus address
Supports isolation protection and wide operating temperatures

Beskrivelse

The ADAM-6052-D offers an 8-channel DI and 8-channel DO solution optimized for remote monitoring and control in industrial settings. With support for Modbus/TCP, MQTT, and SNMP, it integrates into networks seamlessly. Featuring Peer-to-Peer and Graphic Condition Logic capabilities, it simplifies complex configurations and enhances automation.

Produktspesifikasjoner

Specification	Details
General
Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Communications
Interface	Ethernet
Counter/Encoder Input
Channels	8
Max. Input Frequency	3 kHz
Isolated Digital Input
Channels	8
Input Voltage	Dry Contact: Logic level 0: close to GND, Logic level 1: open \| Wet Contact: Logic level 1: 10~30 VDC, Logic level 0: 0~3 VDC
Environment
Isolation Voltage	2,000 VDC
Operating Temperature	-40~70 °C (-40~158 °F)
Isolated Digital Output
Channels	8
Output Type	Source
Output Voltage	10~35 VDC
Sink Current	1 A max./channel
Power Requirements
Input Voltage	10~30 VDC
