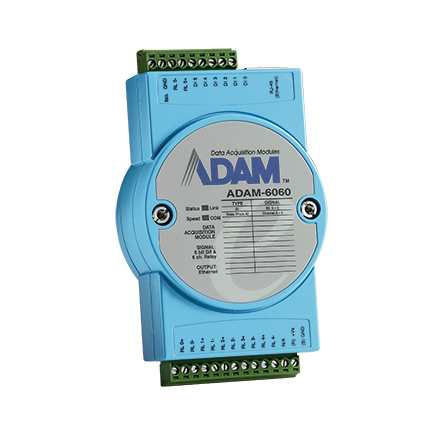

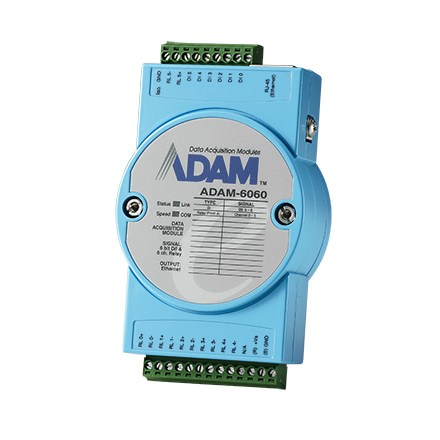

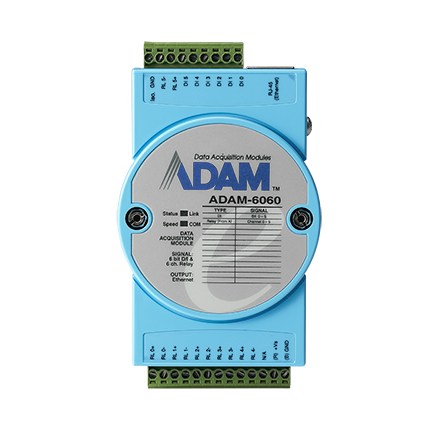

6 Relay Output/6 DI Module

SKU:	ADAM-6060-D1
Brand:	Advantech

kr 2 428,69 2428.69 NOK kr 2 428,69 Ekskl. mva

kr 2 428,69 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The ADAM-6060-D1 is designed with 6 relay outputs and 6 digital inputs, supporting various protocols such as MQTT, SNMP, and Modbus TCP. It features a built-in web server and cloud access for data updates to Azure.

Nøkkelfunksjoner

6 Relay Outputs & 6 Digital Inputs
Supports MQTT, SNMP, Modbus TCP
GCL for Logic Control
Peer-to-Peer I/O Mapping
Azure Cloud Connectivity

Viktige bruksområder

Industrial Automation
Building Management
Remote Monitoring
Energy Management
Smart City Applications

Beskrivelse

ADAM-6060-D1 offers advanced functionality with 6 relay outputs and 6 digital inputs. It supports numerous protocols including MQTT, SNMP, and Modbus TCP, ensuring versatile communication with a built-in web server and Azure cloud connectivity. The module includes logic control via GCL and features such as a watchdog timer for system recovery, making it robust for industrial applications.

Produktspesifikasjoner

Specification	Details
General
Connectors	1 x RJ45, 1 x 13-pin screw terminal, 1 x 9-pin screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Communications
Interface	Ethernet
Counter/Encoder Input
Channels	8
Max. Input Frequency	3 kHz
Isolated Digital Input
Channels	6
Input Voltage	Dry Contact: Logic level 0: close to GND, Logic level 1: open Wet Contact: Logic level 1: 10~30 VDC, Logic level 0: 0~3 VDC
Environment
Isolation Voltage	2,000 VDC
Operating Temperature	-40~70 °C (-40~158 °F)
Relay Output
Channels	6
Contact Rating (Resistive)	1 A @ 30 VDC, 0.5 A @ 120 VAC
Relay Type	1 x Form A
Power Requirements
Input Voltage	10~30 VDC
