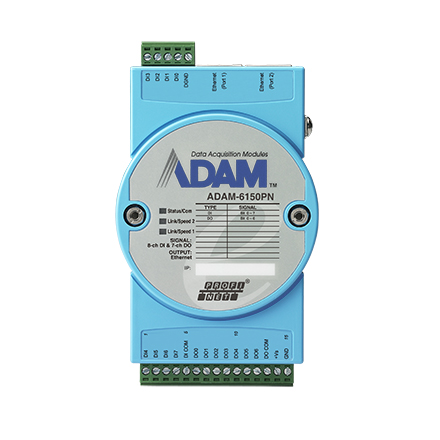

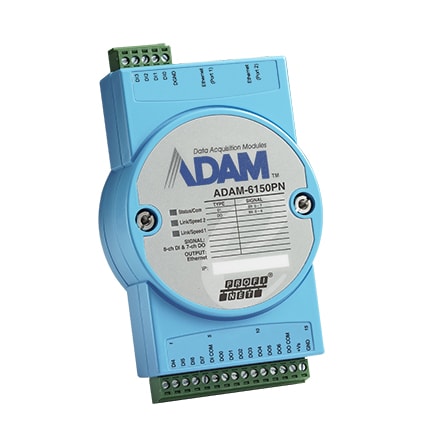

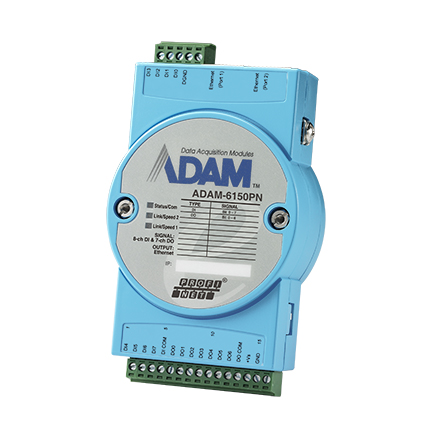

15-ch Isolated DI/O PROFINET Module

SKU:	ADAM-6150PN-AE
Brand:	Advantech

kr 3 649,68 3649.6800000000003 NOK kr 3 649,68 Ekskl. mva

kr 3 649,68 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The ADAM-6150PN-AE is a reliable and compact module offering 8 isolated digital input channels and 7 isolated digital output channels with PROFINET protocol support. Ideal for industrial applications, it features 2 x RJ-45 LAN ports for daisy chaining and robust construction for harsh environments.

Nøkkelfunksjoner

PROFINET protocol support
8-ch digital input and 7-ch digital output
Normal output current: 0.1 A per channel
2 x RJ-45 LAN daisy chain
Isolated digital output with sink type

Beskrivelse

ADAM-6150PN-AE provides 8 isolated digital input channels and 7 isolated digital output channels. It supports PROFINET protocol, ensuring efficient communication in industrial environments. Equipped with 2 x RJ45 connectors and a sturdy design, it's perfect for remote I/O management and reliable data transmission in challenging conditions.

Produktspesifikasjoner

Specification	Details
General
Connectors	2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
Protocol	PROFINET
Communications
Interface	Ethernet
Isolated Digital Input
Channels	8
Input Voltage	Dry Contact: Logic level 0: open Logic level 1: close to GND Wet Contact: Logic level 1: 10~30 VDC and -10~-30 VDC Logic level 0: -3~3 VDC
Environment
Isolation Voltage	2,500 VDC
Operating Temperature	-10~70 °C (14~158 °F)
Isolated Digital Output
Channels	7
Output Type	Sink
Output Voltage	8~35 VDC
Sink Current	100 mA max./channel
Power Requirements
Input Voltage	10~30 VDC
