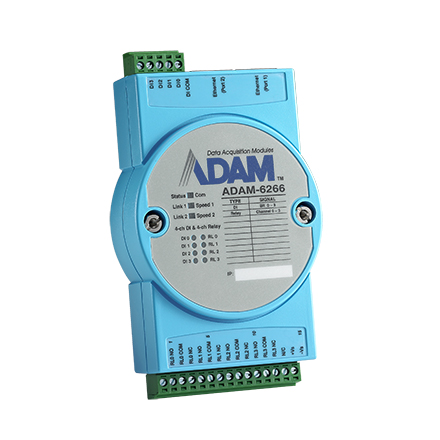

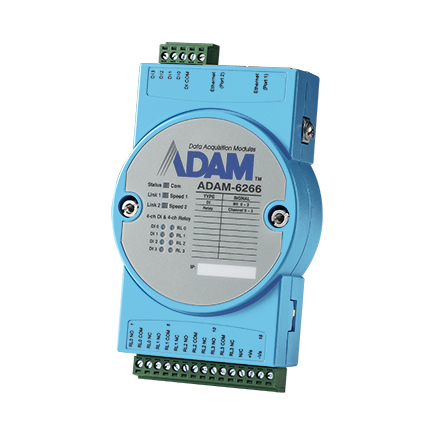

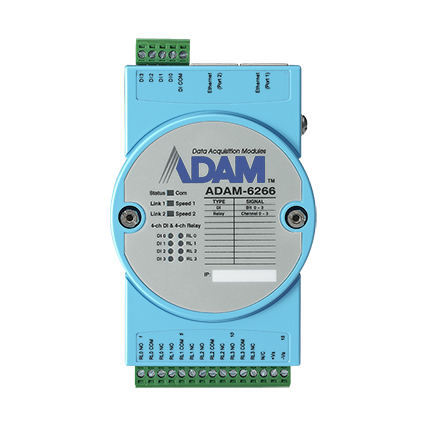

4-ch Relay Output Modbus TCP Module with 4-ch DI

SKU: ADAM-6266-B
GTIN (EAN/UPC): 4719879821741
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12919/image_1920?unique=1af942d

kr 3 175,22 3175.2200000000003 NOK kr 3 175,22 Ekskl. mva

kr 3 175,22 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    The ADAM-6266-B is a reliable I/O module offering 4-channel relay output and 4 digital input channels. It supports daisy chain connection with auto-bypass protection and allows remote monitoring via mobile devices.

    Nøkkelfunksjoner

    • 4-channel Relay Output
    • 4-channel Digital Input
    • 2-port Ethernet
    • Daisy chain connection
    • Remote monitoring capability

    Beskrivelse

    Offering flexible user-defined Modbus addresses, the ADAM-6266-B module supports multiple protocols including Modbus/TCP, HTTP, MQTT, and more. It is designed for intelligent control via Peer-to-Peer and GCL functions, making it suitable for various industrial automation applications.

    Produktspesifikasjoner

    Specification Details
    General
    Connectors
    • 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
    Protocol
    • Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
    Communications
    Interface
    • Ethernet
    Counter/Encoder Input
    Channels
    • 4
    Max. Input Frequency
    • 3 kHz
    Isolated Digital Input
    Channels
    • 4
    Input Voltage
    • Dry Contact
    • Logic level 1: close to DI COM
    • Logic level 0: open
    • Wet Contact
    • Logic level 1: 10~30 VDC and -10~-30 VDC
    • Logic level 0: -3~3 VDC
    Environment
    Isolation Voltage
    • 2,500 VDC
    Operating Temperature
    • -40~70 °C (-40~158 °F)
    Relay Output
    Channels
    • 4
    Contact Rating (Resistive)
    • 5 A @ 30 VDC, 5 A @ 250 VAC
    Relay Type
    • 1 x Form C
    Power Requirements
    Input Voltage
    • 10~30 VDC
