  2. AIOM 4-port GbE SFP, Intel i350-AM4,RoHS

AIOM 4-port GbE SFP, Intel i350-AM4,RoHS

AOC-AG-I4S-O
https://safeconsulting.no/web/image/product.template/12312/image_1920?unique=096e3ef

kr 1 358,65 1358.65 NOK kr 1 358,65

kr 1 358,65

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

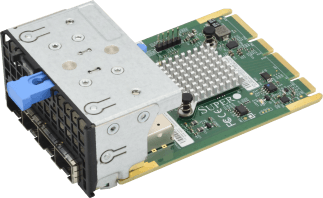

    The Supermicro Advanced I/O Module (AIOM) provides a versatile and scalable solution for networking needs. Featuring Intel's i350 GbE network controller, this 4-port SFP adapter excels in performance and efficiency with support for advanced power management.

    Nøkkelfunksjoner

    • Advanced I/O Module (AIOM) Form Factor
    • Intel® i350 GbE Controller
    • 4 SFP Connectors
    • Energy Efficient Ethernet (EEE)
    • Advanced Power Management
    • NC-SI for Remote Management

    Viktige bruksområder

    • Data Centers
    • Enterprise Networking
    • High-Performance Computing Clusters
    • Virtualization Environments

    Beskrivelse

    The Supermicro Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. Based on Intel's i350 GbE network controller, the AOC-AG-i4SM offers four SFP ports and is engineered with advanced performance features and power management technologies.

    Produktspesifikasjoner

    Specification Details
    General
    Form Factor
    • AIOM
    Controller
    • Intel i350 GbE
    Ports
    • 4 SFP
    Ethernet Features
    Auto-Negotiation
    • IEEE 802.3
    Flow Control
    • IEEE 802.3x and 802.3z
    Cross-Over Detection
    • Automatic (MDI/MDI-X)
    PHY Specifications
    • IEEE 802.3, 802.3u, 802.3ab
    Compliance
    • IEEE 1588, 802.1AS
    Power Management and Efficiency
    Energy Efficient Ethernet
    • Supported
    DMA Coalescing
    • Reduces power consumption
    ASPM Support
    • Supported
    LAN Disable Function
    • Supported
    Low Power Link Up
    • Supported
    Virtualization Features
    SR-IOV
    • PC-SIG
    VLAN Support
    • IEEE 802.1q
    Jumbo Frames
    • Supported
    Flexible Port Partitioning
    • Supported
    Performance Features
    Checksum Offloads
    • TCP/UDP, IPv4 and IPv6
    Low Latency Interrupts
    • Supported
    Tx TCP Segmentation Offload
    • IPv4, IPv6
    Receive Side Scaling (RSS)
    • Windows
    Scalable I/O
    • Linux
    Intelligent Interrupt Generation
    • Supported
    Management Features
    PXE Support
    • Supported
    Iscsi remote boot
    • Supported
    Asset Management
    • Supported
    NC-SI
    • Supported
    OS Support
    Windows
    • Supported
    RedHat Linux
    • Supported
    SUSE Linux
    • Supported
    FreeBSD
    • Supported
    UEFI
    • Supported
    VMWare
    • Supported
    Power Consumption
    Typical
    • 3.7W
    Maximum
    • 4.4W
    Operating Conditions
    Storage Temperature
    • -40°C to 70°C (-40°F to 158°F)
    Storage Humidity
    • 90% non-condensing at 35°C
    Physical Dimensions
    Dimensions
    • 115mm (4.528in) x 76mm (2.992in) (D x W)
