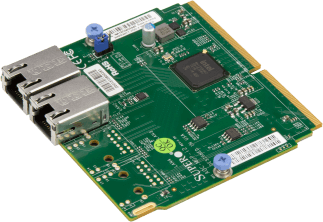

SIOM 2-port GbE RJ45, Intel i350 (Retail Pack)

Name: SIOM 2-port GbE RJ45, Intel i350 (Retail Pack)
Brand: supermicro
SKU: AOC-MGP-I2-O
Price: 772.78 NOK
Availability: BackOrder

SKU:

AOC-MGP-I2-O

kr 772,78 772.78 NOK kr 772,78

kr 772,78

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

AOC-MGP-i2 features Intel® i350 network controller, designed for flexible and scalable GbE SIOM applications with superior performance and power management.

Nøkkelfunksjoner

Intel® i350 GbE controller
Dual RJ45 ports
Super I/O Module (SIOM) Form Factor
Energy Efficient Ethernet (EEE)
Flexible Port Partitioning
Low Latency Interrupts
VM to VM Packet forwarding

Viktige bruksområder

Supermicro servers with SIOM support
Data center deployments
High-performance computing clusters
Virtualized environments

Beskrivelse

The Ultimate Ethernet Controllers in Supermicro Super I/O Module. The AOC-MGP-i2 is a highly flexible and scalable GbE SIOM controller based on Intel's i350 network controller. It features performance-enhancing attributes and robust power management technologies, available exclusively through Supermicro.

Produktspesifikasjoner

Specification	Details
Specification
General	Intel® i350 GbE controller Super I/O Module (SIOM) Form Factor Dual RJ45 ports Intel® I/O Acceleration Technology (Intel® I/OAT)
Ethernet Features	IEEE 802.3 auto-negotiation for speed, duplex, and flow control IEEE 802.3x and 802.3z compliant flow control support Automatic cross-over detection function (MDI/MDI-X) 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant IEEE 1588 protocol and 802.1AS implementation
Power Management and Efficiency	Energy Efficient Ethernet (EEE) DMA Coalescing reduces platform power consumption Active State Power Management (ASPM) support LAN disable function MAC Power Management controls Low Power Link Up Link Speed Control
Virtualization Features	PC-SIG SR-IOV support VM to VM Packet forwarding (Packet Loopback) Flexible Port Partitioning IEEE 802.1q VLAN support IEEE 802.1q advanced packet filtering Jumbo Frames support
Performance Features	TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage Low Latency Interrupts Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments Intelligent interrupt generation
Management Features	Preboot eXecution Environment (PXE) support iSCSI Remote Boot Support Asset Management support on Supermicro® platforms Controller asset tags such as part number, revision, serial number, and MAC addresses NC-SI for remote management
OS Support	Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition) Windows 8.1, 8, 7 (x64 Edition) RedHat Linux SUSE Linux FreeBSD UEFI VMWare
Cables Support	RJ45 Category 5/5e up to 100m
Power Consumption	Typical 3W, Maximum 3.7W
Operating Conditions	Operating temperature: 0°C to 55°C (32°F to 131°F) Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 90% non-condensing relative humidity at 35°C
Physical Dimensions (W x D)	Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)
Supported Platforms	Supermicro® motherboards with Super I/O Module slot Supermicro® server systems with Super I/O Module slot
Available SKUs
SKU	AOC-MGP-i2
Bracket	BKT-0086L
Description	2-port Gigabit Ethernet Adapter with a swappable bracket for 2U+ chassis (Storage Servers)
SKU	AOC-MGP-i2M
Bracket	BKT-0085L
Description	2-port Gigabit Ethernet Adapter with an internal bracket for 1U chassis (Twin Servers)
General
Compliance	RoHS, RoHS Compliant 6/6, Pb Free
Compatibility Matrices	Supermicro Servers with SIOM support
