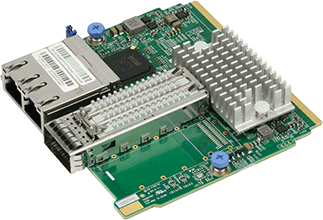

SIOM 1-port FDR IB QSFP+ and 2-port GbE RJ45, based on Mella

SKU: AOC-MHIBF-M1Q2GM-O
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/12162/image_1920?unique=ad0c029

kr 7 714,72 7714.72 NOK kr 7 714,72 Ekskl. mva

kr 7 714,72 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The AOC-MHIBF-m1Q2G adapter delivers superior performance combining InfiniBand FDR and Ethernet capabilities. Exclusive to Supermicro, it supports Super I/O Module slots in Supermicro motherboards and servers.

    Nøkkelfunksjoner

    • InfiniBand FDR 56Gbps
    • 40Gbps Ethernet
    • Mellanox ConnectX-3 Pro
    • Intel i350 GbE Controller
    • PCI-SIG SR-IOV Support
    • Low Latency Interrupts
    • Remote Boot Support

    Viktige bruksområder

    • High-Performance Computing
    • Enterprise Data Centers

    Beskrivelse

    The AOC-MHIBF-m1Q2G adapter, designed in the SIOM form factor, combines InfiniBand FDR 56Gbps and 40Gbps Ethernet capabilities while offering remote server management through a dedicated Gigabit LAN controller. Leveraging Mellanox ConnectX-3 Pro and Intel i350 controllers, it ensures superior performance and flexibility for enterprise data centers and high-performance computing setups. Exclusively available with Supermicro servers, this adapter is optimized for use with Super I/O Module slots in Supermicro motherboards and server systems.

    Produktspesifikasjoner

    Specification Details
    Specifications
    General
    • Super I/O Module (SIOM) Form Factor; Mellanox ConnectX-3 Pro FDR Controller; Intel i350 GbE Controller; Single QSFP Port and Dual RJ45 Port
    Cables Support
    • InfiniBand FDR: QSFP 56Gbps Copper Cables; GbE: RJ45 Category 5/5e up to 100m
    Power Consumption
    • Maximum 9W
    Operating Conditions
    • Operating Temperature: 0°C to 55°C (32°F to 131°F); Storage Temperature: -40°C to 70°C (-40°F to 158°F); Storage Humidity: 90% non-condensing relative humidity at 35°C
    Physical Dimensions
    • Card PCB Dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
    Supported Platforms
    • Supermicro Motherboards with Super I/O Module Slot; Supermicro Server Systems with Super I/O Module Slot
    Compatibility Matrices
    Servers
    • Supermicro Servers with SIOM support
    Cables & Transceivers
    • Networking Cables & Transceivers
    InfiniBand FDR QSFP Specifications
    Connectivity
    • Interoperable with InfiniBand or 40GbE Switches; Passive Copper Cable with ESD Protection
    InfiniBand
    • IBTA Specification 1.2.1 Compliant; Hardware-based Congestion Control; 256 to 4Kbyte MTU, 2GB Messages
    Enhanced InfiniBand
    • Hardware-based Reliable Transport; Collective Operations Offloads; Hardware-based Reliable Multicast; Extended Reliable Connected Transport; Enhanced Atomic Operations
    Ethernet
    • IEEE 802.3ba 40 Gigabit Ethernet; IEEE Std 802.3ad Link Aggregation; IEEE Std 802.3az Energy Efficient Ethernet; IEEE Std 802.1Q, .1P VLAN Tags and Priority; IEEE P802.1bb D1.0 Priority-based Flow Control; IEEE 1588; Jumbo Frame Support (9600B)
    Hardware-based I/O Virtualization
    • Single Root IOV; Address Translation and Protection; Dedicated Adapter Resources; Multiple Queues per Virtual Machine; Enhanced QoS for vNICs; VMware NetQueue Support
    Overlay Networks
    • VXLAN and NVGRE
    Additional CPU Offloads
    • RDMA over Converged Ethernet; TCP/UDP/IP Stateless Offload; Intelligent Interrupt Coalescence
    FlexBoot Technology
    • Remote Boot over InfiniBand; Remote Boot over Ethernet; Remote Boot over iSCSI
    Protocol Support
    • Open MPI, OSU MVAPICH, Intel MPI, MS - MPI, Platform MPI; TCP/UDP, EoIB, IPoIB, RDS; SRP, iSER, NFS RDMA; uDAPL
    Operating System Support
    • Citrix XenServer 6.1; RHEL/CentOS 5.X and 6.X, Novell SLES10 SP4; SLES11 SP1, SLES 11 SP2, OEL, Fedora 14, 15, 17, Ubuntu 12.04; Windows Server 2008/2012/2012 R2; FreeBSD; OpenFabrics Enterprise Distribution (OFED); OpenFabrics Windows Distribution (WinOF); VMware ESXi 4.x and 5.x
    GbE RJ45 Specifications
    Ethernet and Virtualization Features
    • PC-SIG SR-IOV Support; Jumbo Frames Support
    Performance and Efficiency Features
    • Energy Efficient Ethernet (EEE); TCP/UDP, IPv4 and IPv6 Checksum Offloads to Improve CPU Usage; Low Latency Interrupts
    Management Features
    • Asset Management Support on Supermicro Platforms; Preboot eXecution Environment (PXE) Support; iSCSI Remote Boot Support; NC-SI for Remote Management via Intel i350 GbE RJ45 Connector
    Operating System Support
    • Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition); Windows 8.1, 8, 7 (x64 Edition); RedHat Linux; SUSE Linux; FreeBSD; UEFI; VMware
    Available SKUs
    SKUAOC-MHIBF-m1Q2G:
    • 1-port InfiniBand FDR Adapter with a Swappable Bracket for 2U+ Chassis (Storage Servers)

    AOC-MHIBF-m1Q2GM:
    • 1-port InfiniBand FDR Adapter with an Internal Bracket for 1U Chassis (Twin Servers)

    General
    Compliance
    • RoHS Compliant 6/6, Pb Free

    Valgfrie Opsjoner

    Part Number Quantity Description
    QSFP Copper Cable
    CBL-0490L-1M QSFP to QSFP InfiniBand FDR 56Gbs Passive Copper, PBF, 30AWG
    CBL-NTWK-0642-2M QSFP to QSFP InfiniBand FDR 56Gbs Passive Copper, PBF, 30AWG
    CBL-0496L-3M QSFP to QSFP InfiniBand FDR 56Gbs Passive Copper, PBF, 28AWG
    QSFP Active Optical Cable
    CBL-QSFP+56-AOC-3M-3M 56Gb/s QSFP to QSFP FDR Fiber Active Optical Cable
    CBL-QSFP+56-AOC-5M-5M 56Gb/s QSFP to QSFP FDR Fiber Active Optical Cable
    CBL-QSFP+56-AOC-10M-10M 56Gb/s QSFP to QSFP FDR Fiber Active Optical Cable
    CBL-QSFP+56-AOC-15M-15M 56Gb/s QSFP to QSFP FDR Fiber Active Optical Cable
