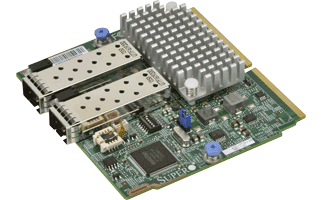

SIOM 2-port 10G SFP+, Intel 82599ES with 1U bracket (Retail)

Name: SIOM 2-port 10G SFP+, Intel 82599ES with 1U bracket (Retail)
Brand: supermicro
SKU: AOC-MTGN-I2SM-O
Price: 2618.71 NOK
Availability: BackOrder

SKU:

AOC-MTGN-I2SM-O

kr 2 618,71 2618.71 NOK kr 2 618,71

kr 2 618,71

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The Supermicro SIOM 2-port 10G SFP+ adapter, featuring Intel's 82599ES controller, offers scalable networking options for modern data centers. Designed for Supermicro's Super I/O Modules, it supports various advanced features for optimized performance.

Nøkkelfunksjoner

Dual SFP+ Ports
Intel 82599ES Controller
Advanced Virtualization Support
Flexible I/O Networking
Low Power Consumption
Broad OS Compatibility

Viktige bruksområder

Data Centers
Networking Solutions
Virtualization Environments
High-Performance Computing
Servers with SIOM Support

Beskrivelse

Supermicro's SIOM 2-port 10G SFP+ adapter, powered by Intel's 82599ES controller, provides flexibility and scalability for modern data centers. This adapter, designed for Supermicro Super I/O Modules, supports dual SFP+ ports, load balancing, iSCSI remote boot, FCoE, VXLAN, and advanced virtualization features. It ensures optimized performance and management with minimal power consumption. Ideal for Supermicro servers requiring robust network solutions.

Produktspesifikasjoner

Specification	Details
Compatibility Matrices
Servers	Supermicro Servers with SIOM support
Cables & Transceivers	Networking Cables & Transceivers
General
Compliance	RoHS Compliant 6/6, Pb Free
OS Support	Windows Server 2012, 2012 R2, 2008 R2 (x64 Edition), Windows 8.1, 8, 7 (x64 Edition), RedHat Linux, SUSE Linux, FreeBSD, UEFI, VMware
I/O Features
Direct Cache Access	Avoid Cache Misses
MSI-X Support	Minimize Overhead of Interrupts
Checksum Offloading	Tx/Rx IP, SCTP, TCP, and UDP (IPv4, IPv6)
Scaling	Receive and Transmit Side Scaling for Windows/Linux
Virtualization Features
VMDq	Yes
Next-Generation VMDq	64 Queues per Port
SR-IOV	64 Virtual Functions per Port
Packet Filtering	Advanced
VLAN Support	Yes
VXLAN	Through Software
Management Features
Preboot Execution Environment	PXE Support
SNMP/RMON	Statistics Counters
NC-SI	For Remote Management
Asset Management	Support on Supermicro Platforms
Advanced Software Features
Teaming Support	Yes
VLANs	IEEE 802.1Q
Flow Control	IEEE 802.3 2005
Cables Support
SFP+ Direct Attach Twinaxial Copper Cables	Up to 7m
Fiber-optic Cables	With Required Optional SFP+ Transceivers
Power Consumption
Typical	6.2W
Maximum	7.2W
Operating Conditions
Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Humidity	90% Non-Condensing at 35°C
Physical Dimensions
Card PCB	92mm (3.62in) x 87.1mm (3.43in) (W x D)

Optional Part List

Part Number	Quantity	Description
SFP+ Copper Cable
CBL-0347L	-	1m 10GbE SFP+ to SFP+, Passive, 30AWG, Pull Type
CBL-NTWK-0347	-	1m 10GbE SFP+ to SFP+, Passive, 30AWG, Push Type
CBL-NTWK-0456	-	2m 10GbE SFP+ to SFP+, Passive, 30AWG, Push Type
CBL-0348L	-	3m 10GbE SFP+ to SFP+, Passive, 24AWG, Pull release
CBL-0349L	-	5m 10GbE SFP+ to SFP+, Passive, 24AWG, Pull release
SFP+ Active Optical Cable
CBL-SFP+AOC-1M	-	1m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
CBL-SFP+AOC-3M	-	3m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
CBL-SFP+AOC-5M	-	5m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC)
SFP+ Transceiver module
AOC-E10GSFPSR	-	SFP+ transceiver module for short range fiber cables (up to 300m), 10G/1G, 850nm, MMF, LC
AOC-E10GSFPLR	-	SFP+ transceiver module for long range fiber cables (up to 3000m), 10G/1G, 1310nm, MMF, LC
AOM-TSFP-709DMZ-AVG	-	10G/1G Ethernet 10GBase-SR/SW 1000Base-SX Dual Rate SFP+ 850nm LC Transceiver
