AOC-S3108L-H8iR Retail Pack (NOT FOR SELL ALONE)

• SAS-3 supported storage interfaces
• PCI Express host interface
• Supports RAID 0, 1, 5, 6, 10, 50, 60
• Data transfer rate at 12 Gbit/s
• 2048 MB DDR3 internal memory
• Internal SAS ports: 8
• Memory clock speed: 1866 MHz
• Supports up to 240 HDDs
• Option for SuperCap/TFM unit
• Optimum RAID performance with LSI SAS 3108 I/O processor

• Enterprise Data Management
• High-Performance Computing
• Database Server
• Virtualization
• Data Analysis
• Content Delivery
• Backup and Recovery
• Cloud Computing
• Data Warehousing
• Big Data Applications

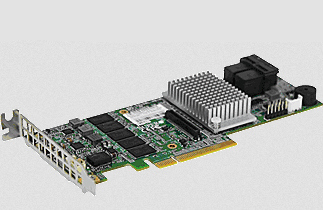

The Supermicro MegaRAID Low Profile AOC-S3108L-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
With the option of SuperCap/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Use a LSI SAS 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.
The AOC-S3108L-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.
