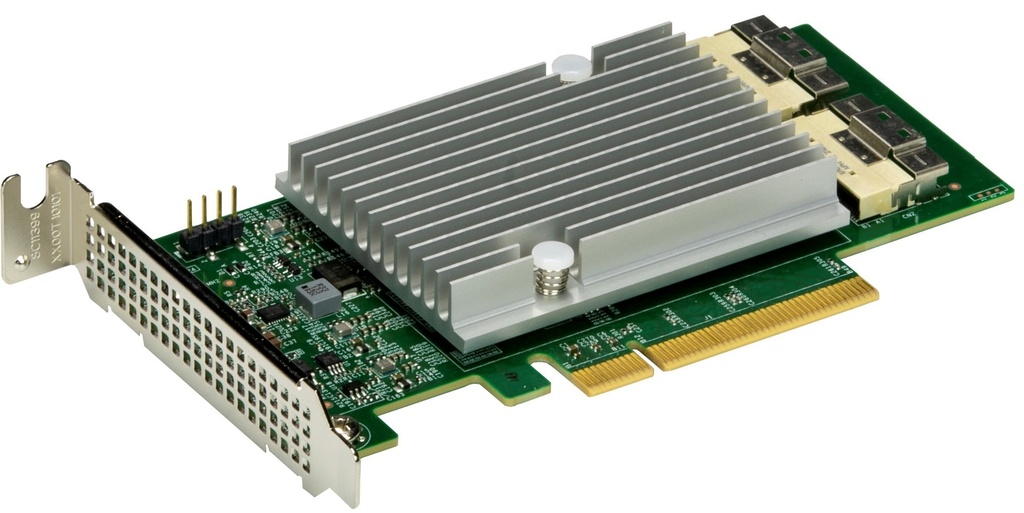

Std LP SAS/SATA/NVMe AOC, x8 PCIe Gen 4.0 SAS3 with RAID
AOC-S3816L-L8IR-O
Beskrivelsesammendrag
The Supermicro HBA AOC-S3816L-L8iR offers 16 internal SAS connectors for high-performance storage connectivity using Broadcom’s 3816 I/O processors. With support for up to 8 SAS/SATA or 4 NVMe devices, this adapter is designed for enterprise-grade performance.
Nøkkelfunksjoner
- 16 internal SAS connectors
- Supports 12Gb/s per port
- RAID 0, 1, and 10
- Broadcom 3816 I/O processors
- PCIe Gen 4.0
Viktige bruksområder
- Enterprise Storage Solutions
- Data Centers
- IT Infrastructure
- High-Performance Computing
- Server Connectivity
Beskrivelse
The Supermicro HBA AOC-S3816L-L8iR features 16 internal SAS connectors for high-performance storage connectivity, using Broadcom’s 3816 I/O processors for optimum performance with PCI Express Gen 4.0 host interface. It supports up to 8 SAS/SATA or 4 NVMe devices, delivering intelligent RAID 0, 1, and 10. This product is designed for increased bandwidth and is compatible exclusively with Supermicro motherboards.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Compliance | |
| RoHS |
|
| Dimensions | |
| W x D |
|
| Connectivity | |
| Internal Ports |
|
| RAID Levels | |
| Supported |
|
| Processor | |
| Type |
|
| Speed |
|
| Supported Devices | |
| SAS/SATA |
|
| NVMe |
|
| Data Transfer Rates | |
| SAS |
|
| SATA |
|
| NVMe |
|
| Features | |
| MCTP |
|
| BMC Management |
|
| MegaRAID |
|
| Configuration Utility |
|
| Secure Boot |
|
| Power Consumption | |
| Typical |
|
| Thermal Operating Range | |
| System Dependent |
|
| General | |
| OS Support |
|
