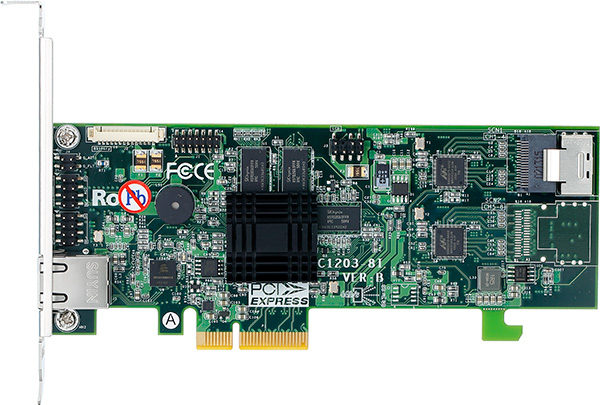

  2. ARECA 4port 6Gb/s SATA PCIe 2.0 x4, RAID

ARECA 4port 6Gb/s SATA PCIe 2.0 x4, RAID

ARC-1203-4I
https://safeconsulting.no/web/image/product.template/6736/image_1920?unique=cd75146

kr 3 911,70 3911.7000000000003 NOK kr 3 911,70

kr 3 911,70

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The ARC-1203-4i is a cost-effective internal PCIe 2.0 RAID controller designed for high availability and capacity-oriented applications. It supports up to 4 SATA drives and features 1GB DDR3 cache.

    Key Features

    • Supports up to 4 SATA HDDs/SSD drives
    • Supports up to 1GB DDR3-1066 cache
    • Broad operating system support
    • SGPIO enclosure management
    • Redundant flash image for adapter availability

    Description

    Areca’s ARC-1203-4i internal PCIe 2.0 host RAID controller offers robust data protection for cost-sensitive applications. This entry-level controller supports up to 4 SATA HDDs/SSD drives, making it ideal for applications such as security systems, surveillance, multimedia content generation, and entry-level database systems.

    Product Specifications

    Specification Details
    Physical Specifications
    Ports
    • 4 x internal
    Drive Connectors
    • 1 x SFF-8087
    Physical Dimensions
    • Low Profile: 168(L) x 64.4(H) mm
    Power Dissipation
    • Typical: 10W
    Performance
    Host Bus Interface
    • 4-Lane PCI Express® 2.0
    Data Transfer Rate
    • Up to 6Gb/s per port
    Drive Support
    • Up to 4 x SATA HDDs/SSD
    Environmental
    Operating Temperature
    • 0 °C to 60 °C with 200 LFM airflow
    Operating Humidity
    • 10% to 85%, non-condensing
    Additional Features
    RAID Levels
    • RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and Single Disk
    BBM Support
    • [ARC-6120BA-T121-12G](accessories.html#BBM)
