  2. ARECEA 1U dual RAID Head, 4x16Gb/s FC

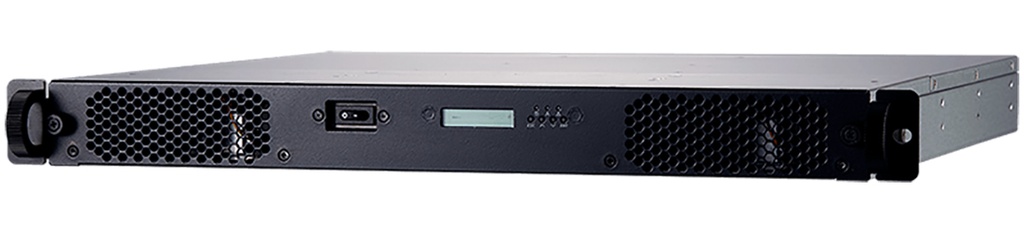

ARECEA 1U dual RAID Head, 4x16Gb/s FC

SKU: ARC-9200FD-DR1
Brand: Areca
https://safeconsulting.no/web/image/product.template/6807/image_1920?unique=dab50a2

kr 57 469,49 57469.49 NOK kr 57 469,49 Ekskl. mva

kr 57 469,49 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Areca ARC-9200FD-DR1 is a standalone data manager offering 16 Gbit/s FC, 12 Gbit/s SAS, or 10 Gbit/s iSCSI host interface options. Features dual RAID controllers, up to 8GB cache per controller, and supports up to 512 drives. Modular design with automatic drive failover, detection, and rebuild.

    Nøkkelfunksjoner

    • Supports 16 Gbit/s FC, 12 Gbit/s SAS, or 10 Gbit/s iSCSI host interfaces
    • Single or Dual RAID controller
    • Up to 8 GB cache per controller
    • Supports up to 512 drives
    • Modular design
    • Automatic drive failover, detection, and rebuild
    • Active/active and fail-over/fail-back operation
    • Multi-pathing and load balancing

    Beskrivelse

    Areca's ARC-9200 RAID head requires only one height unit, offers new ROC (RAID on a Chip) 12 Gbit/s SAS features and supports SATA and SAS drives as well as SSDs. It can be flexibly and redundantly equipped with three different host port variants: 2 x 12 Gbit/s SAS, 2/4 x 16 Gbit/s Fibre Channel, or 2 x 10 Gbit/s iSCSI ports. Each controller has two gigabytes of DDR3-1600 RAM installed, upgradable to eight gigabytes. Featuring active/active and fail-over/fail-back operation for reliability, multi-pathing, load balancing, and flash and battery backup modules to prevent data loss.

    Produktspesifikasjoner

    Specification Details
    Administration
    Dedicated Management Port
    • No
    Serial Port
    • No
    Memory per Controller
    Memory Modules (Max. per Controller)
    • 1
    Memory Capacity (Fully Populated)
    • 8 GIGABYTE
    Drive Bays
    2.5" Compatible
    • No
    Public Cloud Gateway
    Public Cloud Gateway
    • No
    Other Technical Features
    RAID Controller
    • Dual-Redundant
    Scale-Out Architecture
    • No
    Drives (Max.)
    • 256
    RAID Levels Supported
    • 1
    • 10(1E)
    • 3
    • 5
    • 6
    • 30
    • 50
    • 60
    • Single Disk or JBOD
    Onboard SAS-Expansion Ports (per Controller)
    • 2x 12Gbit/s miniSAS HD
    Dimensions and Weight
    Form Factor
    • 1 HE Rackmount
    General
    Model
    • ARC-9200 RAID Head Serie
    Manufacturer
    • Areca
    RAID Levels Suppored
    • 1
    • 10(1E)
    • 3
    • 5
    • 6
    • 30
    • 50
    • 60
    • Single Disk or JBOD
    Host Connectors per Controller
    Onboard Host Interfaces (per Controller)
    • 2x 16Gbit/s Fibre-Channel SFP+
    Supported Protocols
    Protocols Supported (Block)
    • FC
    Protocols Supported (Object)
    • -
    Protocols Supported (File)
    • No/A
