H12DSU-IN 819UTS-R1K02P-T, AOC-URG4N4-i2XT

SKU: AS -1024US-TRT
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10658/image_1920?unique=64758c3

kr 26 601,38 26601.38 NOK kr 26 601,38 Ekskl. mva

kr 26 601,38 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro AS-1024US-TRT is a 1U rackmount server engineered for cloud computing, virtualization, and high-end enterprise applications. Equipped with dual AMD EPYC processors and up to 8TB of RAM, it delivers exceptional performance and scalability.

    Nøkkelfunksjoner

    • Virtualization - Cloud Computing - High End Enterprise Server
    • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
    • Expansion slots: 2 PCI-E 4.0 x16 (FH / 9.5"L) slots 1 PCI-E 4.0 x16 (LP) slot 1 PCI-E 4.0 x16 (internal proprietary LP slot) [ Details ]
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • Dual 10GBase-T LAN ports via Intel® X710-AT2
    • Drive Bays: 4 hot-swap 3.5" SATA3 by default or 4 NVMe (via optional drive tray) or 4 SAS3 (via optional SAS kit)
    • 1000W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)

    Viktige bruksområder

    • Virtualization
    • Cloud Computing
    • Enterprise Server

    Beskrivelse

    Supermicro AS-1024US-TRT is an advanced 1U rackmount server tailored for high-end enterprise solutions, boasting dual AMD EPYC™ 7003/7002 series processors, up to 8TB Registered ECC DDR4 RAM, and extensive I/O options including PCI-E 4.0 slots and dual 10GBase-T LAN ports. Designed for virtualization and cloud computing, it ensures maximum performance with redundancy and reliability. Other notable features include integrated IPMI, multiple hot-swap drive bays, and a 1000W Titanium level redundant power supply, making it a robust choice for mission-critical environments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    AS -1024US-TRT
    • A+ Server 1024US-TRT
    Motherboard
    Processor/Chipset
    CPU
    • Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP up to 280W*
    Cores
    • Up to 64 Cores
    Chipset
    • System on Chip (SoC)
    Note
    • * Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    System Memory
    Memory Capacity
    • 32 DIMM slots
    • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    VGA
    • ASPEED AST2500 BMC

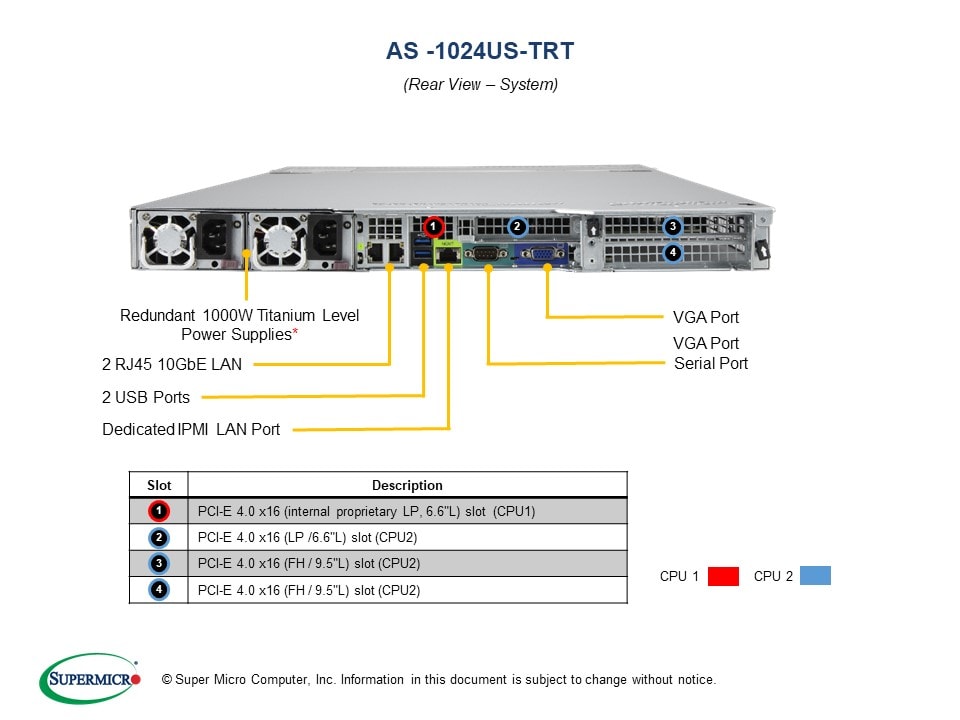

    Expansion Slots
    1U
    • 2 PCI-E 4.0 x16 (FH/HL 9.5") slots
    • 1 PCI-E 4.0 x16 (LP) slot
    • 1 PCI-E 4.0 x16 (internal proprietary LP slot)
    Input / Output
    SATA
    • 4 SATA3 (6 Gbps) ports
    LAN
    • Dual 10GBase-T LAN ports via Intel® X710-AT2
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 3 USB 3.0 ports (2 rear + 1 Type A)
    VGA
    • 1 VGA port
    SAS
    • 4 SAS3 ports support via optional SAS kit
    NVMe
    • 4 NVMe support via optional drive tray
    Others
    • 1 COM port (rear)
    • 2 SATA DOM power connector
    • TPM 1.2 header
    System BIOS
    BIOS Type
    • AMI 128Mb SPI Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 5.1
    • USB Keyboard Support
    • SMBIOS 3.1.1
    Chassis
    Form Factor
    • 1U
    Model
    • CSE-819UTS-R1K02P-A
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 29" (737mm)
    Package
    • 7.8" (H) 23.66" (W) 37.13" (D)<br>198mm (H) x 601mm (W) x 943mm (D)
    Weight
    • Net Weight: 26 lbs (11.8 kg)
    • Gross Weight: 41 lbs (18.6 kg)
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2x Network activity LEDs
    • System Overheat LED / Fan fail LED /UID LED
    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays
    Backplane
    HDD Backplane
    • Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD
    System Cooling
    Fans
    • 8 heavy-duty PWM fans with optimal fan speed control
    Air Shroud
    • 2 Air Shroud
    Power Supply
    • 1000W Redundant Power Supplies with PM Bus
    Total Output Power
    • 800W/1000W
    Dimension(W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 9.8 - 7A / 50-60Hz
    • 200-240Vac / 7 - 5A / 50-60Hz
    • 200-240Vdc / 7 - 5A (for CCC only)
    +12V
    • Max: 66.7A / Min: 0A (100-127Vac)
    • Max: 83A / Min: 0A (200-240Vac)
    • Max: 83A / Min: 0A (200-240Vdc)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
    • CPU switching voltage regulator
    FAN
    • Up to 8-fan status tachometer monitoring
    • Up to eight 4-pin fan headers
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • Thermal control for 8x Fan connectors
    • I²C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Header
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)*
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    Note
    • * Support for operating 35°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.
