H12SSW-AN6, CSE-LB16TS-R860AWP

SKU: AS -1114CS-TNR
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10652/image_1920?unique=04e8906

kr 18 657,73 18657.73 NOK kr 18 657,73 Ekskl. mva

kr 18 657,73 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Supermicro AS -1114CS-TNR is a versatile 1U rackmount server designed for various intensive applications, from cloud computing and financial services to deep learning inferencing. It features a single AMD EPYC processor, up to 4TB RAM, and extensive I/O options.

    Nøkkelfunksjoner

    • Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

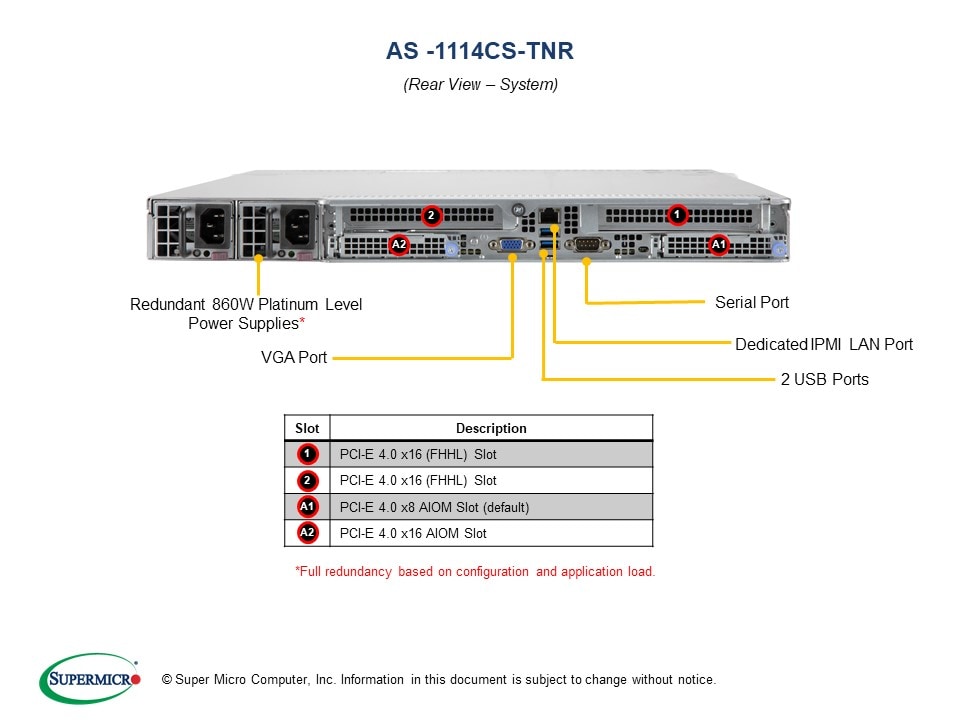

    • Expansion slots: 2 PCI-E 4.0 x16 (FHHL) slots, 2 AIOM slots for flexible networking (One x8 AIOM slot and one x16 AIOM slot)
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • 10 Hot-swap 2.5" SATA3 drive bays, optional 10x SAS3/NVMe support via additional SAS/NVMe kit M.2 Interface : 2 PCI-E 4.0 x4
    • M.2 Form Factor : 2242, 2260, 2280, 22110 M.2 Key : M-Key
    • 2 USB 3.0 ports (rear), 1 VGA, 1 COM, ASPEED AST2600 BMC graphics
    • Tool-less Drive Trays and Tool-less Brackets
    • 860W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)

    Viktige bruksområder

    • Financial Services
    • Cloud Computing
    • Network Appliance
    • Private Cloud
    • Content Delivery Network (CDN)
    • Deep Learning Inferencing

    Beskrivelse

    The Supermicro AS -1114CS-TNR server is an advanced 1U rackmount system equipped with a single AMD EPYC 7002/7003 Series Processor. Supporting up to 4TB of DDR4-3200MHz RAM, it is ideal for high-performance tasks like financial services, cloud computing, and deep learning inferencing. The server includes 10 hot-swap drive bays and integrated IPMI 2.0 for remote management. It is designed with redundancy in mind, featuring 860W redundant platinum power supplies, and extensive expansion capabilities with multiple PCI-E 4.0 slots. The robust system is housed in a compact chassis with efficient cooling provided by six counter-rotating PWM fans.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    AS -1114CS-TNR
    • Standard version with PWS-860P-1R2 (Platinum Level)
    AS -1114CS-TNR-EU
    • European version with PWS-861A-1R (Titanium Level)
    Motherboard
    Installed Motherboard
    • Super H12SSW-AN6
    Processor/Chipset
    CPU
    • Single AMD EPYC™ 7002/7003 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP up to 280W
    Cores
    • Up to 64 Cores
    Note
    • CPU 7773X, 7573X, 7473X, 7373X, 75F3, or 7763 requires updating Fans to 6x FAN-0163L4
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Flexible networking provided via AIOM
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2600 BMC
    Input / Output
    SATA
    • 16 SATA3 (6 Gbps) ports
    LAN
    • Networking provided via AIOM
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    COM
    • 1 COM Port (rear)
    Video
    • 1 VGA port
    System BIOS
    BIOS Type
    • AMI 256Mb SPI Flash EEPROM
    Management
    Software
    • Super Doctor 5
    • Watch Dog
    • SUM
    • IPMI 2.0 , KVM with dedicated LAN
    Power Configurations
    • ACPI / APM Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • 6 Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-LB16TS-R860AWP2
    Dimensions and Weight
    Width
    • 17.2" (437mm)
    Height
    • 1.7" (43mm)
    Package
    • 7.76" (H) 23.82" (W) 32.36" (D)<br>197mm (H) x 605mm (W) x 822mm (D)
    Depth
    • 23.5" (597mm)
    Gross Weight
    • 46 lbs (20.9kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 4.0 x16 (FHHL) slots
    • 2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot)
    Drive Bays
    Hot-swap
    • 10 Hot-swap 2.5" SATA3 drive bays
    • Optional 10 SAS3/NVMe drive support via additional SAS/NVMe kit
    System Cooling
    Fans
    • 6 Counter-rotating 40x40x56mm PWM fans
    Power Supply
    • 800W/860W 1U redundant power supply
    • Note: AS -1114CS-TNR-EU (European) SKU uses PWS-861A-1R (Titanium Level)
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 860W with Input 200 - 240Vac
    • 860W with Input 200 - 240Vdc
    Dimension(W x H x L)
    • 54.5 x 40.25 x 322 mm
    AC Input Frequency
    • 50-60Hz
    +12V
    • Max: 66.6A / Min: 0A (100Vac-127Vac)
    • Max: 71.6A / Min: 0A (200Vac-240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Backplane
    • SAS/SATA/NVMe HDD Backplane

    Valgfrie Opsjoner

    Part Number Quantity Description
    Super H12SSW-AN6
    SAS/SATA/NVMe HDD Backplane800W/860W 1U redundant power supplyNote: AS -1114CS-TNR-EU (European) SKU uses PWS-861A-1R (Titanium Level)
