H12SSW-NTR, CSE-116TS-R706WBP5-N10,RoHS

SKU: AS -1114S-WN10RT
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10650/image_1920?unique=e08d79a

kr 23 443,68 23443.68 NOK kr 23 443,68 Ekskl. mva

kr 23 443,68 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro AS-1114S-WN10RT features a single AMD EPYC 7003/7002 Series Processor, 16 DIMMs supporting up to 4TB DDR4-3200MHz memory, and 10 hot-swap drive bays. Ideal for cloud computing, virtualization, and high-speed networking with dual 10GBase-T LAN ports.

    Nøkkelfunksjoner

    • • Virtualization • Cloud Computing • All Flash Storage
    • Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    • 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support
    • 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
    • 1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A)
    • 2 SuperDOM (Disk on Module) ports
    • 750W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)

    Viktige bruksområder

    • High-performance computing
    • Virtualization
    • Cloud computing
    • All-flash storage
    • Data analytics
    • AI and machine learning
    • Datacenter optimization
    • Edge computing

    Beskrivelse

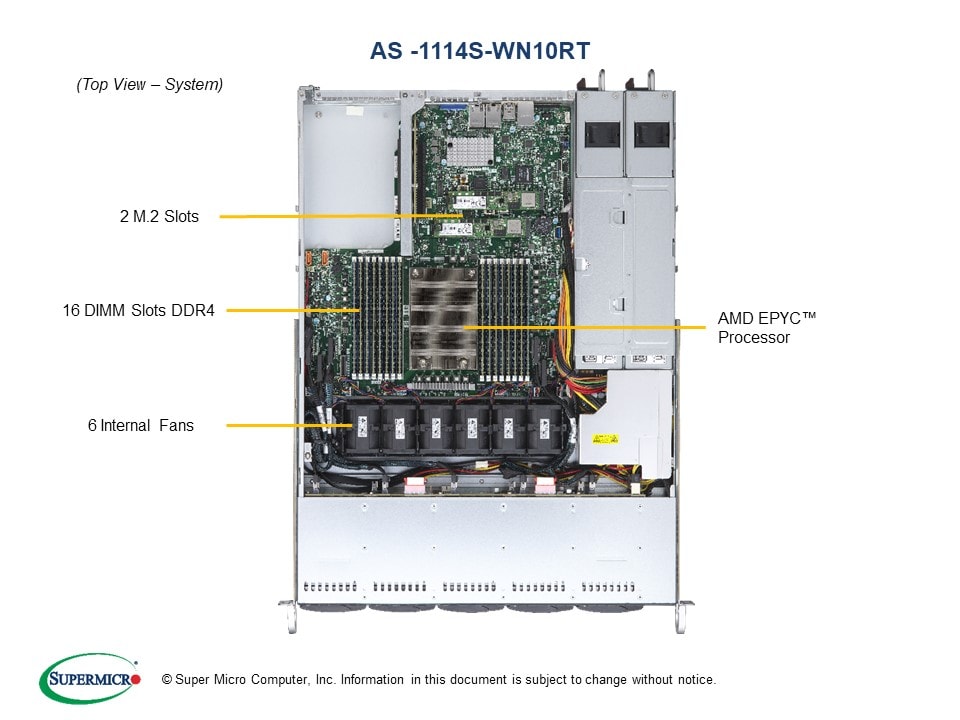

    The Supermicro AS-1114S-WN10RT is a 1U rackmount server powered by a single AMD EPYC 7003/7002 Series Processor (supporting up to 64 cores). It boasts 16 DIMM slots accommodating up to 4TB of DDR4-3200MHz ECC memory, and extensive I/O expandability with 2 PCI-E 4.0 x16 (FHHL) slots and 1 PCI-E 4.0 x16 (LP) slot. It also supports 10 hot-swap U.2 NVMe4/NVMe3/SATA3 drives, making it an ideal solution for all-flash storage environments. The server is equipped with integrated IPMI 2.0 and KVM with a dedicated LAN, ensuring efficient and remote server management. Dual 10GBase-T LAN ports provide high-speed network connectivity, while redundant 750W power supplies ensure maximum uptime.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    AS -1114S-WN10RT
    • Standard version with PWS-706P-1R (Platinum Level)
    AS -1114S-WN10RT-EU
    • European version with PWS-861A-1R (Titanium Level)
    Motherboard
    Installed Motherboard
    • Super H12SSW-NTR
    Processor/Cache
    CPU
    • Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Support CPU TDP up to 280W
    Cores
    • Up to 64 Cores
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Dual 10GBase-T LAN with via Broadcom BCM57416
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 2 SATA3 (6 Gbps) ports
    LAN
    • 2 RJ45 10GBase-T ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
    Video
    • 1 VGA port
    DOM
    • 2 Super DOM (Disk on Module) ports
    System BIOS
    BIOS Type
    • AMI 256Mb SPI Flash ROM
    Management
    Software
    • Super Doctor 5
    • Watch Dog
    • SUM
    • IPMI 2.0 , KVM with dedicated LAN
    Power Configurations
    • ACPI / APM Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-116TS-R706WBP5-N10
    Dimensions and Weight
    Width
    • 17.2" (437mm)
    Height
    • 1.7" (43mm)
    Depth
    • 23.5" (597mm)
    Package
    • 7.63" (H) 23.42" (W) 31.45" (D)
    Weight
    • Net Weight: 25 lbs (11.34 kg)
    • Gross Weight: 39 lbs (17.69 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 4.0 x16 (FHHL) slots
    • 1 PCI-E 4.0 * x16 (LP) slot
    • 2 PCI-E  4.0 x2 NVMe M.2 slots
    • * Limited Support : On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
    Drive Bays
    Hot-swap
    • 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support
    System Cooling
    Fans
    • 6 heavy duty fans with Optimal Fan Speed Control
    AC/DC240V Input Redundant Power Supply
    • 700W/750W Redundant Power Supplies with PM Bus
    • Note: AS -1114S-WN10RT-EU (European) SKU uses PWS-861A-1R (Titanium Level)
    Total Output Power
    • 700W: 100 - 140Vac
    • 750W: 200 - 240Vac
    • 750W: 200 - 240Vdc (for CCC only)
    Dimension(W x H x L)
    • 54.5 x 40.25 x 320 mm
    Input
    • 100 - 140Vac / 8 - 6A / 50-60Hz
    • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
    • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
    +12V
    • Max: 58A / Min: 0.5A (100 - 140Vac)
    • Max: 62A / Min: 0.5A (200 - 240Vac)
    • Max: 62A / Min: 0.5A (200 - 240Vdc)(CB/CCC Only)
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification
    • Platinum Certified
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Backplane
    • Supports 10 NVMe or 10 SATA3

    Valgfrie Opsjoner

    Part Number Quantity Description
    Super H12SSW-NTR
    Supports 10 NVMe or 10 SATA3700W/750W Redundant Power Supplies with PMBusNote: AS -1114S-WN10RT-EU (European) SKU uses PWS-861A-1R (Titanium Level)
    Cable Management Arm
    MCP-290-00085-0N-Supermicro Cable Management Arm for 1U Chassis
    TPM
    AOM-TPM-9655V-Vertical TPM with Infineon 9655 TCG 1.2
    SATADOM
    SSD-DM128-SMCMVN1-SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
    Optional Kit for 10 SATA Drive Support
    MCP-220-00147-0B-Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
