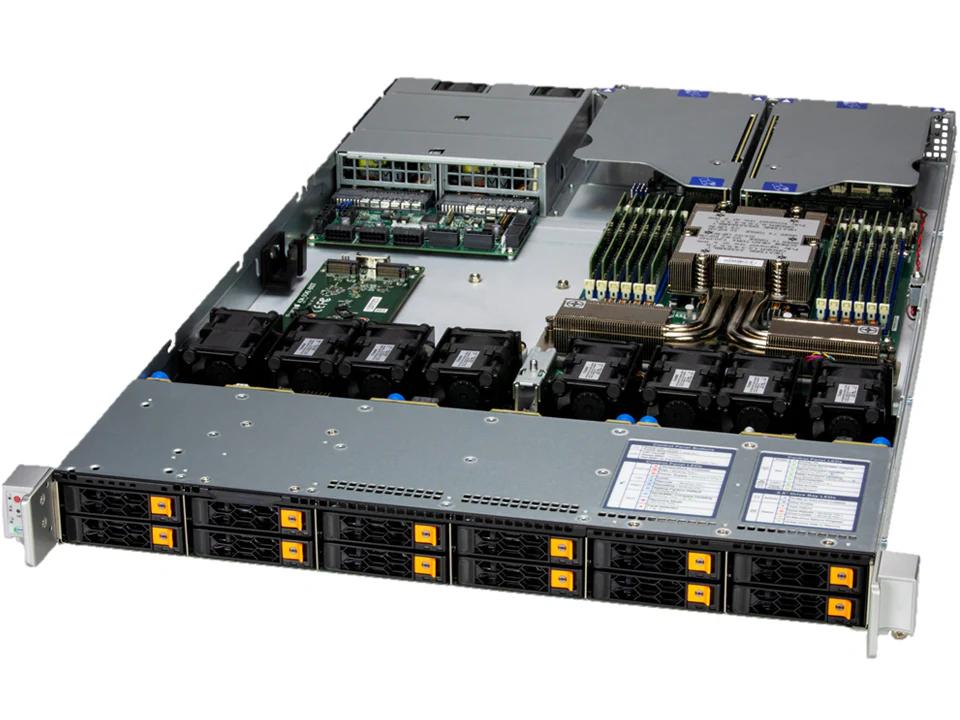

[NR] H14 1U CloudDC with DC-MHS,H14SHM +CSE-MD101

SKU: AS -1116CS-TN
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/13544/image_1920?unique=dfc5f51

kr 22 312,02 22312.02 NOK kr 22 312,02 Ekskl. mva

kr 22 312,02 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Supermicro's H14 1U CloudDC server features a modular design, supporting AMD EPYC™ 9005/9004 Processors, offering top-tier virtualization and cloud computing performance. Its robust hardware neatly integrates advanced security and flexible storage options, optimizing data center operations.

    Nøkkelfunksjoner

    • All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurationsBased on Modular DeNsity Optimized HPM Form Factor (M-DNO)Support DC-SCM module with OpenBMC
    • Single AMD EPYC™ 9005/9004 Series Processor
    • Support up to DDR5 12 DIMM slots (1DPC)
    • 2 PCIe 5.0 x16 FHHL slots
    • Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)1 RJ45 1 GbE Dedicated BMC LAN Port (DC-SCM)
    • 8 Hot-swap 2.5" NVMe/SATA/SAS drive baysOptional 4 Hot-swap 2.5" NVMe/SAS/SATA drive baysOptional RAID support via storage add-on card
    • Support up to 2 FHHL GPU accelerator cards

    Viktige bruksområder

    • Virtualization
    • HPC
    • CDN, Edge Nodes
    • Cloud Computing
    • Data Center Optimized
    • Storage Headnode

    Beskrivelse

    The H14 1U CloudDC server by Supermicro supports the AMD EPYC™ 9005/9004 Series Processors, offering advanced virtualization, HPC, and cloud computing capabilities. With its modular hardware system and flexibility in storage and I/O configurations, it caters to a data center optimized environment. It supports up to 12 DDR5 DIMM slots, 2 PCIe 5.0 x16 slots, and innovative cooling with 8 PWM fans. The system provides robust security features including a trusted platform module and cryptographically signed firmware.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -1116CS-TN
    Motherboard
    Installed Motherboard
    • Super H14SHM
    Processor
    CPU
    • Single processor(s)
    • AMD EPYC™ 9005/9004 Series Processors
    Core Count
    • Up to 192C/384T
    Note
    • Supports up to 500W TDP CPUs
    GPU
    Max GPU Count
    • Up to 2 single-width GPUs
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    System Memory
    Memory
    • Slot Count: 12 DIMM slots/12 Channels
    • Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
    • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • Via AIOM
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port
    USB
    • 1 USB 2.0 Type-A port(Rear)
    • 1 USB 3.2 Gen1 Type-A port(Rear)
    Video
    • 1 VGA port(Rear)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 64MB SPI Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • SMBIOS 3.5 or later
    • UEFI 2.8
    • USB Keyboard support
    • ACPI 6.5
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Super Diagnostics Offline (SDO)
    • KVM with dedicated LAN
    • IPMI 2.0
    • Supermicro Thin-Agent Service (TAS)
    • OOB Management Package (SFT-OOB-LIC )
    • SuperServer Automation Assistant (SAA) New!
    • IPMIView
    Power configurations
    • ACPI/APM Power Management
    • Power-on mode control for AC power loss recovery
    • Power button override mechanism,
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Voltage
    • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-MD101TS-R000NDP
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29.4" (747 mm)
    Package
    • 8.1" (H) x 23.8" (W) x 40.6" (D)
    Weight
    • Gross Weight: 49 lbs (22.2 kg)
    • Net Weight: 34 lbs (15.4 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • LAN2 activity
    • Power Failed LED
    • Power status
    • System information
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    CXL Support
    • Up to 4 CXL 2.0 x16 devices
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays

    Option A: Total 12 bays:
    • 12 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays

    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110)
    System Cooling
    Fans
    • 8 Counter-Rotating PWM 40x40x56mm Fan(s)
    Power Supply
    2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    Input:
    • 800W: 100-127Vac / 50-60Hz
    • 1000W: 200-240Vac / 50-60Hz

    +12V:
    • Max: 66.7A (100Vac-127Vac)
    • Max: A (100Vdc-240Vdc)
    • Max: 83A (200Vac-240Vac)

    12V SB:
    • Max: 2.1A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Titanium Level

    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 220-240Vac / 50-60Hz (for UL only)
    • 2000W: 230-240Vac / 50-60Hz
    • 2000W: 230-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166A / Min: 0A (230Vac-240Vac)

    12V SB:
    • Max: 3.5A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    Input:
    • 1200W: 0240Vdc / 50-60Hz (for CCC only)
    • 1200W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 100A / Min: 0A (100Vac-240Vac)

    12V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    Input:
    • 1600W: 0240Vdc / 50-60Hz (for CQC only)
    • 1200W: 100-127Vac / 50-60Hz
    • 1600W: 200-240Vac / 50-60Hz

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac)
    • Max: 133.3A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    12 NVMe (Drives 0-11)
    CBL-PWEX-1136-701MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
    CBL-MCIO-1339M5R1MCIO x8 (STR to RA),39CM,32AWG,RoHS
    MCP-220-00178-0B42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
    CBL-MCIO-1340M5-11MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS
    BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,
    CBL-MCIO-1226M51MCIO (x8 STR to x8 STR),26CM,85OHM,RoHS
    CBL-MCIO-1245M5RE1[NR] MCIO x8 (STR to RE),45cm,85OHM,RoHS
    CBL-MCIO-1330M52MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS
    12 SATA (Drives 0-11)
    CBL-CDAT-1062Y-451Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS
    CBL-MCIO-1255L4Y2(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS
    MCP-220-00178-0B42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
    CBL-PWEX-1136-701MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
    BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,
    4 NVMe (Drives 8-11)
    BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,
    CBL-MCIO-1226M51MCIO (x8 STR to x8 STR),26CM,85OHM,RoHS
    CBL-MCIO-1340M5-11MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS
    MCP-220-00178-0B42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
    CBL-PWEX-1136-701MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
    4 SATA (Drives 8-11)
    BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,
    CBL-CDAT-1062Y-451Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS
    CBL-MCIO-1255L4Y1(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS
    MCP-220-00178-0B42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
    CBL-PWEX-1136-701MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
    8 NVMe (Drives 0-7)
    CBL-MCIO-1245M5RE1[NR] MCIO x8 (STR to RE),45cm,85OHM,RoHS
    MCP-220-11902-0B2HS119 Modular Bay Dummy Cover_1x2 2.5" Slim Drive Slot,RoHS
    CBL-MCIO-1339M5R1MCIO x8 (STR to RA),39CM,32AWG,RoHS
    CBL-MCIO-1330M52MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS
    8 SATA (Drives 0-7)
    MCP-220-11902-0B2HS119 Modular Bay Dummy Cover_1x2 2.5" Slim Drive Slot,RoHS
    CBL-CDAT-1062Y-451Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS
    CBL-MCIO-1255L4Y1(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS
    CacheVault for Broadcom 3916/3908
    BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916)1SuperCap mounting bracket for PCIe location
    BTR-CVPM05 + MCP-240-21747-0N (For S3908/S3916)1SuperCap mounting bracket for AIOM location
    Heat Sink Options
    SNK-P2082PV-211U Passive EVAC CPU Heat Sink for AS -1116CS-TN
    SNK-P0082V11U Passive CPU VC Heat Sink for AMD Socket SP5 Processors
    M.2 Control Card
    AOC-SLG4-2H8M212x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP
    M.2 Option
    CBL-NSKS-1240K5-E1M-PIC, KickStart 50p to 50p,40cm,G5,30AWG,RoHS
    AOM-DCM2-BOOT-P1DC-MHS M.2 Boot Board,2x 22110/2280 M.2 slots (M-key),P
    Power Supply Options
    PWS-1K04A-1R2CRPS: 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
    PWS-2K09A-1R2CRPS: AC-DC 1U 2000W 80 Plus Titanium CRPS, forward airflow, W73.5
    PWS-1K21A-1R2M-CRPS: 1200W, Titanium efficiency, Redundant W73.5xH40xL185 mm PWS
    PWS-1K61A-1R2M-CRPS: 1600W, Titanium efficiency, W73.5xH39/40xL185 mm, C-14 inlet
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Control Card and Cable(s)
    AOC-S3908L-H8iR-16DD (-16DD/-32DD) + 1x CBL-SAST-1276F-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3916L-H16iR-32DD (-16DD/-32DD) + 1x CBL-SAST-1276F-100 + 1x CBL-SAST-1265F-1001Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60
    Storage Control Card and Cable(s) (HBA)
    AOC-S3808L-L8IT(-16DD/-32DD) + 1x CBL-SAST-1276F-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    AOC-S3816L-L16IT (-16DD/-32DD) + 1x CBL-SAST-1276F-100 + 1x CBL-SAST-1265F-1001Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    TPM security module
    AOM-TPM-9672SCM-P1TPM 2.0 with Infineon SLB 9672 For SCM module,HF,RoHS
