H12SSL-i, CSE-LA26TS-R920LPP,RoHS
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
Key Features
- Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
- 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
- 5 PCI-E 4.0 x16 LP slots, 2 PCI-E 4.0 x8 LP slots
- 2x 1GbE LAN ports, 1 dedicated IPMI LAN port
- 12 Hot-swap 3.5" SATA3 drive bays, 2 rear Hot-swap 2.5" SATA3 Drive bays via optional kit M.2 Interface : 2 PCI-E 4.0 x4 M.2 Form Factor : 2242, 2260, 2280, 22110 M.2 Key : M-Key
- 6 USB 3.0 ports (4 rear, 2 via header), 1 VGA, 1 COM, ASPEED AST2500 BMC graphics
- 920W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)
Key Applications
- Backup storage
- Web or Database Servers
- Compact Network Appliance
Description
Supermicro H12 A+ Mainstream SuperServers are designed to deliver the highest performance, flexibility, scalability, and serviceability to demanding IT environments. This A+ server is perfect for backup storage, being a web or database server, and as a compact network appliance.

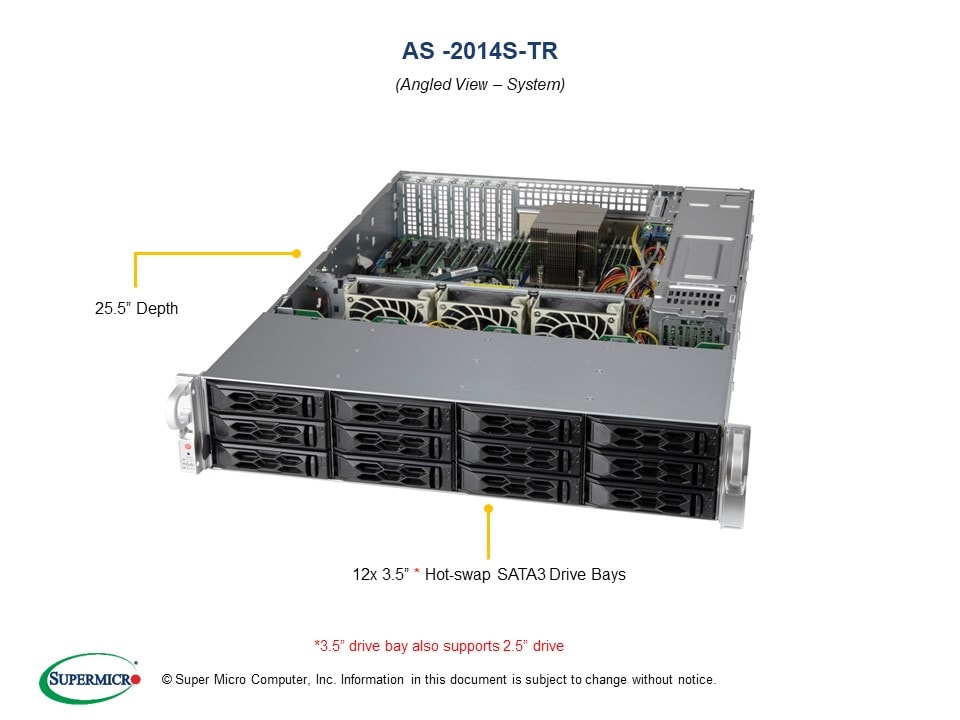

The AS -2014S-TR 2U server supports the latest AMD EPYC™ 7002/7003 Series processors, up to 2TB DDR4-3200MHz of memory in 8 DIMMs slots, and twelve 3.5"/2.5” front hybrid storage drive bays. With AS -2014S-TR, you can populate and mix between 12 SAS or SATA drives in the front with an additional 2 optional rear 2.5” drives. The AS -2014S-TR also includes dual 1GbE RJ45 ports and has a dedicated 1 RJ45 IPMI port for KVM over dedicated LAN. This server has 7 PCI-E 4.0 slots [5 x PCI-E 4.0 x16 (LP), 2 x PCI-E 4.0 x8 (LP)] for exceptional expandability.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| AS -2014S-TR |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor/Chipset | |
| CPU |
|
| Cores |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| COM |
|
| Video |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Hot-swap |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| Total Output Power and Input |
|
| Dimension(W x H x L) |
|
| AC Input Frequency |
|
| +12V |
|
| +5Vsb |
|
| Output Type |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Backplane |
|
