  2. H13SAE-MF 2U SC825 w/800W redundant power supplies,RoHS

H13SAE-MF 2U SC825 w/800W redundant power supplies,RoHS

AS -2015A-TR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10689/image_1920?unique=29062ce

kr 18 540,24 18540.24 NOK kr 18 540,24

kr 18 540,24

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro AS -2015A-TR is designed for high-performance computing with single-socket AMD EPYC 4004 processors, support for DDR5 memory, and advanced PCIe 5.0 slots. Ideal for financial companies and more.

    Key Features

    • AMD EPYC™ 4004 Series LGA1718 up to 170W TDP Processors
    • 4 DDR5-5200 UDIMM ECC/Non-ECC slots supporting up to 192GB memory
    • 2 PCIe 5.0 x16 HHHL slots (16/NA or 8/8)
    • IPMI 2.0 + KVM with Dedicated LAN (1GbE)Dual 1GbE LAN (Intel® I210-AT)
    • 800W High-Efficiency Power Supply Titanium Level Certified

    Key Applications

    • Designed for financial companies
    • AMD Xilinx Solarflare X2 and X3 Ethernet adapters validated

    Description

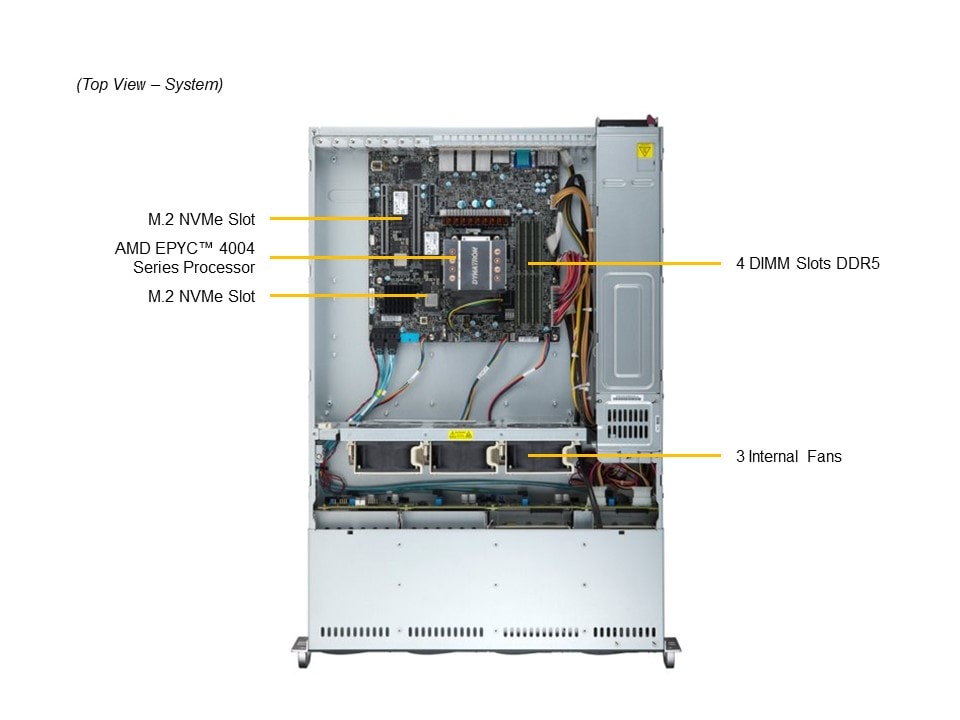

    The Supermicro AS -2015A-TR system is a powerful 2U server solution that features a single socket AM5 (LGA-1718) with AMD EPYC 4004 Series processors supporting up to 16 cores and 32 threads. It offers up to 192GB of DDR5 UDIMM ECC/Non-ECC memory across 4 DIMM slots. This server is equipped with advanced I/O and storage capabilities, including 2 PCIe 5.0 x16 slots, 2.5" and 3.5" drive bays, and high-efficiency Titanium level power supplies. Enhanced manageability is provided by Supermicro's advanced software suite, ensuring optimal performance for demanding applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -2015A-TR
    Motherboard
    Installed Motherboard
    • Super H13SAE-MF
    Processor
    CPU
    • Single Socket AM5 (LGA-1718)
    • AMD EPYC™ 4004 Series Processor
    Core Count
    • Up to 16C/32T
    Note
    • Supports 60W - 170W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width or 2 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: RTX A2000, L4
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • AMD B650
    Network Connectivity
    • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    • 2 RJ45 1GbE with Intel® I210-AT
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 3 Type-A port(s) (Rear)
    • 2 Type-C port(s) (Rear)
    • 1 Type-C port(s) (Rear)
    Video
    • 1 VGA port(s)
    • 1 DisplayPort 1.4 port(s)
    • 1 HDMI 2 port(s)
    Audio
    • Rear Audio
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    PC Health Monitoring
    FAN
    • Status monitor for speed control
    Voltage
    • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
    Other Features
    • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
    Temperature
    • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
    Chassis
    Form Factor
    • 2U
    Model
    • CSE-825TQC-R802LPB
    Dimensions and Weight
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Package
    • 11.4" (H) x 26.7" (W) x 34.5" (D)
    Weight
    • Gross Weight: 52 lbs (23.59 kg)
    • Net Weight: 37 lbs (16.78 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity LED
    • Network Activity LEDs
    • Power Fail LED
    • Power status LED
    • System Information LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x4 LP slot
    • 2 PCIe 5.0 x16 LP slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 8 front hot-swap 3.5" SAS/SATA drive bays

    M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
    System Cooling
    Fans
    • 3x 80mm Fan(s)
    Power Supply
    1x 800W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 800W: 100-240Vac / 50-60Hz
    • 800W: 200-240Vdc / 50-60Hz

    +12V:
    • Max: 66A / Min: 0A (100Vac-240Vac)
    • Max: 66A / Min: 0A (200Vdc-240Vdc)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-H13SAE-MF1Super H13SAE-MF Motherboard
    CSE-825TQC-R802LPB12U Chassis
    Backplane
    BPN-SAS3-825TQ12U 8-Slot 12G Backplane for 8x3.5" SAS/SATA HDD/SSD
    Cable
    CBL-0186L14x 7pin SATA (STR to RA), 56/45.5/35/23cm,PBF
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-PWEX-10783PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
    Parts
    MCP-260-00185-0B1STD I/O Shield for H13SAE-MF with EMI Gasket & Black Mylar
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0094AP412U Active CPU Heat Sink for AMD Socket AM5 Systems
    *Power Supply
    PWS-802A-1R21U 800W 100-240Vac/47-63Hz, and DC240 input
    *Power Distributor
    PDB-PT825-88241SC825 24PIN REDUNDANT POWER DISTRIBUTOR
    *Fan
    FAN-0181L4380x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
    *Front Panel
    FPB-FP836-D1Front control board Dual color LED(FP836-D)forSC823M,825,825
    *Drive Tray(s)
    MCP-220-00023-011Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    MCP-220-00075-0B8Black gen 5.5 hot-swap 3.5" HDD tray
    MCP-220-82502-0B2Black fixed 3.5\" HDD tray or FDD dummy tray
    *Rear Window
    MCP-240-82506-0N1LP Rear Window for SC825,825M,826,213,216
    *Peripheral Drive
    MCP-290-00007-011Black DVD dummy cover for SC825, 836
    *Rail Set
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    *Air Shroud
    MCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13

    Optional Part List

    Part Number Quantity Description
    2.5" Drive Tray
    MCP-220-00043-0N8Black hot-swap gen 4 3.5 to 2.5 HDD tray
    TPM
    AOM-TPM-9670V1SPI TPM 2.0
