H12DSi-N6, CSE-LA26TS-R920LPP1
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
Key Features
- Dual AMD EPYC™ 7003/7002 Series Processors Supports Up to 240W CPU TDP
- AMD® SP3
- Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz in 16 DIMMS
- 3 PCIe 4.0 x16 Low Profile (LP) 3 PCIe 4.0 x8 Low Profile (LP)
- Dual Gigabit LAN
- 12 Hot-swap 3.5" (tool-less) or 2.5" (screw) drive bays (default configuration is 8 SATA + 4 NVMe) (up to 12 NVMe drives supported with optional NVMe kit) 1 M.2 support: - M.2 Interface: PCIe 3.0 x4 - M.2 form factor: 2260, 2280, 22110 - M.2 Key: M-Key
- 920W Redundant Power Supplies Platinum level
- 1 rear VGA, 1 Type A port, 1 COM Port, and 4 USB ports
Key Applications
- Virtualization
- Enterprise Server
- Data Center Optimized
- Application and data serving
- Model analysis
- Compute Intensive Applications
Description

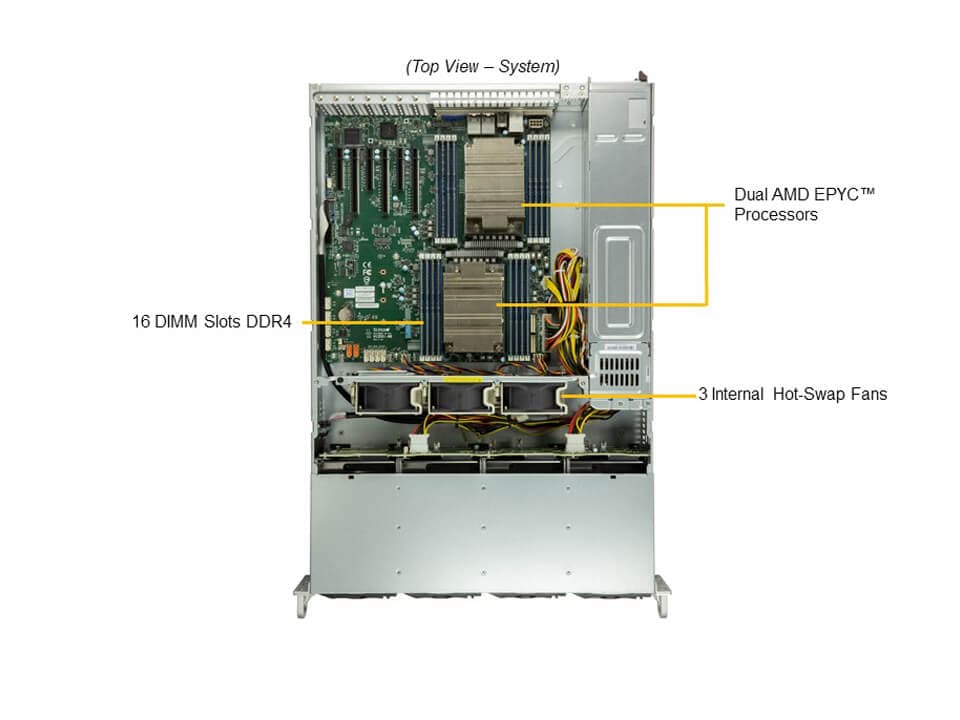

Supermicro H12 A+ Mainstream SuperServers are designed to deliver the highest performance, flexibility, scalability, and serviceability to demanding IT environments, and to power mission-critical enterprise workloads. The AS -2024S-TR 2U Mainstream server supports dual AMD EPYC™ 7002/7003 Series processors, up to 4TB DDR4-3200MHz of memory in 16 DIMMs slots, and twelve 3.5"/2.5” front hybrid storage drive bays. With AS -2024S-TR, you can populate and mix between NVMe, SAS or SATA drives. The AS -2024S-TR includes dual 1GbE RJ45 ports and a dedicated IPMI port for KVM over dedicated LAN. It offers 6 PCI-E 4.0 slots for exceptional expandability, making it an ideal choice for a variety of mainstream server applications such as virtualization, application and data serving, compute-intensive applications, and model analysis.
Product Specifications
Specification | Details |
---|---|
Product SKUs | |
SKUs |
|
Motherboard | |
Installed Motherboard |
|
Processor | |
CPU |
|
Core Count |
|
Note |
|
System Memory | |
Memory |
|
Memory Voltage |
|
On-Board Devices | |
Chipset |
|
Network Connectivity |
|
Input / Output | |
LAN |
|
USB |
|
Video |
|
DOM |
|
Management | |
Software |
|
Power configurations |
|
Security | |
Hardware |
|
Features |
|
PC Health Monitoring | |
FAN |
|
Temperature |
|
CPU |
|
Chassis | |
Form Factor |
|
Model |
|
Dimensions and Weight | |
Height |
|
Width |
|
Depth |
|
Package |
|
Weight |
|
Available Color |
|
Front Panel | |
LED |
|
Buttons |
|
Expansion Slots | |
PCI-Express (PCIe) Configuration | Default:
|
Drive Bays / Storage | |
Drive Bays Configuration | Default: Total 12 bays:
Option A: Total 12 bays:
|
M.2 |
|
System Cooling | |
Fans |
|
Air Shroud |
|
Power Supply | |
2x 920W Redundant Platinum Level (94%) power supplies | Dimension (WxHxL):
AC Input:
+12V:
5V SB:
Output Type:
|
Operating Environment | |
Environmental Spec. |
|
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Motherboard / Chassis | ||
MBD-H12DSi-N6 | 1 | Super H12DSi-N6 Motherboard |
CSE-LA26TS-R920LPP1 | 1 | 2U Chassis |
Backplane | ||
BPN-SAS3-LA26A-N12 | 1 | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor |
Cable | ||
CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
CBL-SAST-1234A-100 | 2 | SlimSAS x4 (STR) to 4x SATA,65CM,100 OHM,RoHS |
CBL-SAST-1244-85 | 2 | Slimline x8 (STR) to Slimline x8 (STR),45CM,85 OHM,RoHS |
CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
Parts | ||
MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. |
Rail Set | ||
MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
Air Shroud | ||
MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
Drive Tray(s) | ||
MCP-410-00016-0N | 1 | Screw bag and NVMe HDD label for 12x 3.5" Gen-9 HDD Tray |
MCP-220-00184-0B | 12 | Black gen-9 tool-less cost-effective 3.5 |
Manual | ||
MNL-2431-QRG | 1 | AS -2024S-TR Quick Reference Guide |
Software | ||
SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
Heatsink / Retention | ||
SNK-P0063P | 2 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors |
*Power Supply | ||
PWS-920P-1R2 | 2 | 1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF, |
*Power Distributor | ||
PDB-PT826-L8824 | 1 | 2U cost effective PDB support up to 1200W.,RoHS |
*Fan | ||
FAN-0181L4 | 3 | 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis |
*Rear Window | ||
MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
Cable Arm Kit | ||
1x MCP-120-82503-0N and 1x MCP-290-00073-0N | - | Supermicro Cable Management Arm for 2U, 3U and 4U chassis |
Gen4 8-ports SAS Raid controller kit | ||
1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264F-100 | - | Enables 8x hot-swap drive bays to support SAS drives |
SuperCap kit for AOC-S3908L-H8IR-16DD-P | ||
1x BTR-CVPM05 and 1x BKT-BBU-BRACKET-05 | - | SuperCap and mounting bracket for SAS RAID controller AOC-S3908L-H8IR-16DD |
Supermicro Dual-Port Gen-4 Internal NVMe Host Bus Adapter kit | ||
1x AOC-SLG4-2E4T and 1x CBL-SAST-1267-85 | - | Enables 2x hot-swap drive bays to support NVMe drives |
Supermicro Quad-Port Gen-4 Internal NVMe Host Bus Adapter kit | ||
1x AOC-SLG4-4E4T and 2x CBL-SAST-1267-85 | - | Enables 4x hot-swap drive bays to support NVMe drives |
