H12SSW-NTR, CSE-216BTS-R1K23WBP

Name: H12SSW-NTR, CSE-216BTS-R1K23WBP
Brand: supermicro
SKU: AS -2114S-WN24RT
Price: 31463.77 NOK
Availability: OutOfStock

SKU:

AS -2114S-WN24RT

Product Note:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

kr 31 463,77 31463.77 NOK kr 31 463,77

kr 31 463,77

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

Supermicro AS -2114S-WN24RT is designed for advanced computing needs, featuring a single AMD EPYC™ 7003/7002 Series Processor, up to 4TB DDR4 ECC memory, and extensive NVMe support. Ideal for virtualization, hyperconverged storage, cloud computing, and all-flash storage, this system ensures robust performance and high availability.

Key Features

Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
Expansion slots: Up to 2 PCI-E 4.0 x16 (FH/HL) slots: 24-NVMe configuration (Standard) – 1 slot available 20-NVMe configuration – 2 slots available M.2 Interface : 2 PCI-E 4.0 x2 M.2 Form Factor : 2280, 22110 M.2 Key : Onboard M-key
Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
2x 10GBase-T LAN ports via Broadcom BCM57416
Up to 24 hot-swap 2.5" U.2 NVMe drive bays
1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

Key Applications

Virtualization
Hyperconverged Storage
Cloud Computing
All Flash Storage

Description

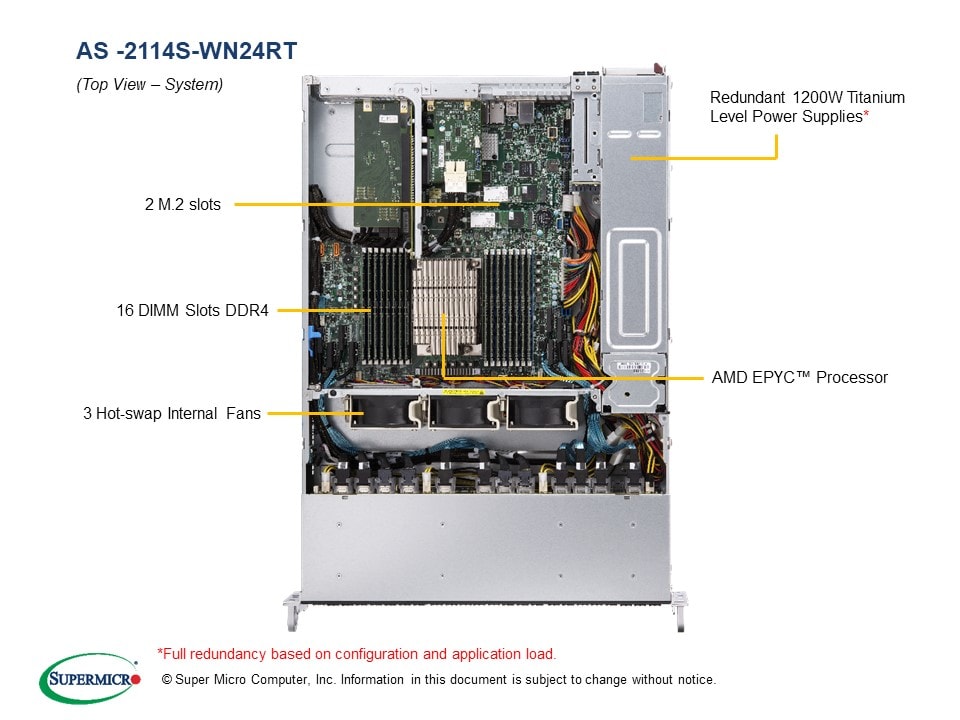

The Supermicro AS -2114S-WN24RT is engineered for optimal performance and scalability. It supports a single AMD EPYC™ 7003/7002 Series Processor with up to 64 cores and up to 4TB DDR4 ECC memory across 16 DIMM slots. The system is equipped with 24 hot-swap 2.5" NVMe drive bays, redundant 1200W power supplies, and dual 10GBase-T LAN ports. It features expansion options, including up to 2 PCI-E 4.0 x16 slots and integrated IPMI 2.0 + KVM. The robust architecture and high efficiency make it suitable for a variety of high-demand applications.

Product Specifications

Specification	Details
Product SKUs
AS -2114S-WN24RT	A+ Server 2114S-WN24RT
Motherboard
Processor/Chipset
CPU	Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3 Support CPU TDP up to 280W
Cores	Up to 64 Cores
Chipset	System on Chip (SoC)
System Memory
Memory Capacity	16 DIMM slots Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	Broadcom BCM57416 Controller
VGA	ASPEED AST2500 BMC
Expansion Slots
PCI Express	1 or 2*PCI-E 4.0 x16 (FH/HL) slots
M.2	Interface: 2 PCI-E 4.0 x2 Form Factor: 2280, 22110 Key: Onboard M-key
Note	* 2 slots available using 20-NVMe configuration(24 NVMe is standard)
Input / Output
NVMe	Up to 24 U.2 NVMe support
LAN	2x 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (4 rear + 1 Type A)
VGA	1 VGA port
Others	1 COM port 2 SATA DOM power connectors TPM 1.2 header, TPM 2.0 header
System BIOS
BIOS Type	AMI 256Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Chassis
Form Factor	2U
Model	CSE-216BTS-R1K23WBP
Dimensions
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	24.8" (630mm)
Weight	Net Weight: 34 lbs (15.42 kg) Gross Weight: 59 lbs (26.76 kg)
Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED /UID LED
Drive Bays
Hot-swap	Up to 24 hot-swap 2.5" U.2 NVMe drive bays
System Cooling
Fans	3 heavy-duty PWM fans with optimal fan speed control
Air Shroud	1 Air Shroud
Power Supply (76mm Width)
1200W Redundant Power Supplies with PM Bus
Total Output Power	1000W/1200W
Dimension(W x H x L)	76 x 40 x 336 mm
Input	100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only)
+12V	Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc)
+5Vsb	Max: 4A / Min: 0A
Output Type	19 Pairs Gold Finger Connector
Certification	Titanium Level
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
FAN	Up to 6-fan status tachometer monitoring Up to six 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 6x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header
Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature:10°C to 35°C (50°F to 95°F) Non-operating Temperature:-40°C to 70°C (-40°F to 158°F) Operating Relative Humidity:8% to 90% (non-condensing) Non-operating Relative Humidity:5% to 95% (non-condensing)
