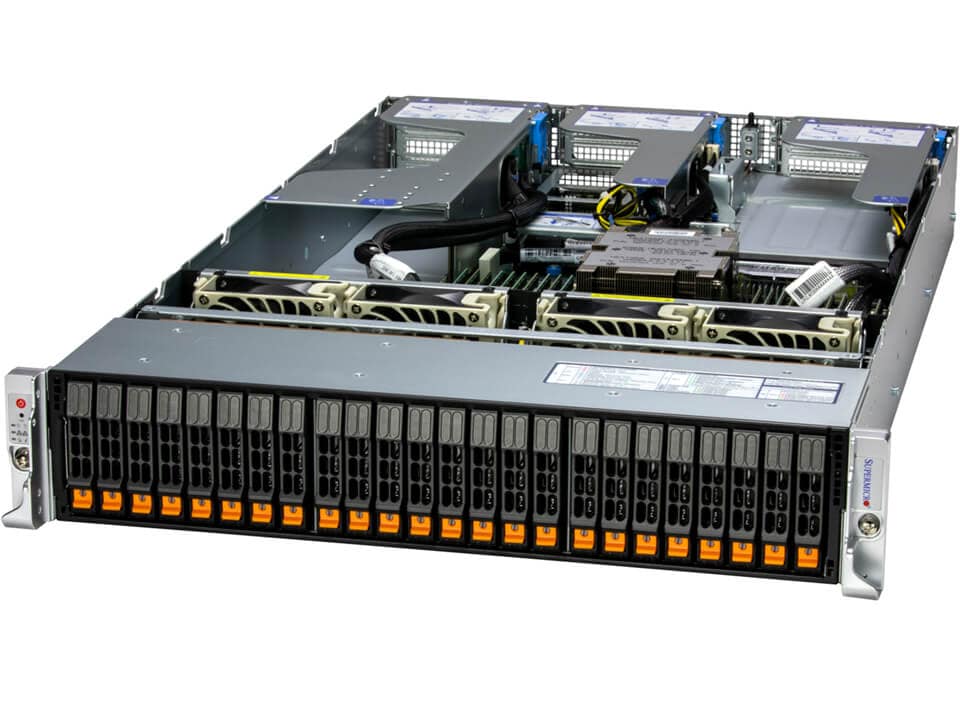

H13SSH, CSE-HS219-R1K63P-A

AS -2115HS-TNR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with 1 CPU, Min. of  2 DIMMs, 1 AIOM/AOC NIC and 1 Storage Device)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10683/image_1920?unique=29062ce

kr 32 988,67 32988.67 NOK kr 32 988,67

kr 32 988,67

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro AS -2115HS-TNR is a versatile and high-performance server powered by a single 4th Generation AMD EPYC™ 9004 Series Processor. It supports up to 6TB ECC DDR5 memory, features flexible networking options, and includes 1600W redundant power supplies, making it ideal for various enterprise applications.

    Key Features

    • Single 4th Generation AMD EPYC™ 9004 Series Processor
    • 24 DIMM (2 DPC) Up to 6TB ECC DDR5 RDIMM with single CPU
    • 10 Expansion slots options with up to 4 PCIe 5.0 x16 slotsFlexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
    • 1600W Redundant Power Supplies  (Titanium Level)
    • 2 On-board NVMe M.2 slots; 1x PCIe 3.0 x4, 1x PCIe 3.0 x2; 80mm/110mm (Boot)

    Key Applications

    • Virtualization
    • Software-defined Storage
    • AI Inference and Machine Learning
    • Cloud Computing
    • Enterprise Server

    Description

    Supermicro AS -2115HS-TNR is a high-performance server designed to meet the needs of modern data centers, providing exceptional computing power with a single 4th Generation AMD EPYC™ 9004 Series Processor. It offers extensive memory support with up to 6TB ECC DDR5 RDIMM, flexible networking, and high expandability with multiple PCIe 5.0 slots. The server is equipped with 1600W redundant power supplies, ensuring reliability and continuous operation. Its advanced management software and security features make it suitable for critical enterprise environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -2115HS-TNR
    Motherboard
    Installed Motherboard
    • Super H13SSH
    Processor
    CPU
    • Single Socket SP5
    • AMD EPYC™ 9004 Series Processors
    Core Count
    • Up to 128C/256T
    Note
    • Supports up to 400W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU
    Max GPU Count
    • Up to 2 double-width GPUs
    Supported GPU
    • NVIDIA PCIe: RTX A6000, RTX 6000 Ada Generation
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCIe
    System Memory
    Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
    • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • Via AIOM
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    BIOS Features
    • ACPI 6.4
    • Plug and Play (PnP)
    • SMBIOS 3.5 or later
    • UEFI 2.8
    • USB Keyboard support
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • OOB Management Package (SFT-OOB-LIC )
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    • Power-on mode control for AC power loss recovery
    • Power button override mechanism,
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Voltage
    • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
    Chassis
    Form Factor
    • 2U
    Model
    • CSE-HS219-R1K63P-A
    Dimensions and Weight
    Height
    • 3.5" (88.9 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29.9" (760 mm)
    Package
    • 10.4" (H) x 23.8" (W) x 43.6" (D)
    Weight
    • Gross Weight: 72 lbs (32.7 kg)
    • Net Weight: 39 lbs (17.7 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option A*:
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option B*:
    • 2 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option C*:
    • 2 PCIe 5.0 x16 FHFL double-width slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option D*:
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 2 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option E*:
    • 4 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option F*:
    • 4 PCIe 5.0 x16 FHFL double-width slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option G*:
    • 3 PCIe 5.0 x16 FHFL double-width slots
    • 2 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option H*:
    • 2 PCIe 5.0 x16 FHFL double-width slots
    • 4 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option I*:
    • 1 PCIe 5.0 x16 FHFL double-width slot
    • 6 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 24 bays:
    • 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280)
    • 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280)
    System Cooling
    Fans
    • 4x 8cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    2x 1600W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1600W: 200-240Vac / 50-60Hz
    • 1600W: 200-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 83.3A / Min: 0A (100Vac-127Vac)
    • Max: 133.3A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Environmental / Recycling
    Recycle
    • Return Server-End of Life Product

    Optional Part List

    Part Number Quantity Description
    16 SAS
    AOC-S3816L-L16iTOR AOC-S3916L-H16iRCBL-SAST-1264F-100CBL-SAST-1276F-100111116 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CMSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
    MCP-220-21602-0B1Black 2.5" HDD dummy cover for 8 HDD, Hex hole
    CBL-CDAT-10621i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
    20 NVMe
    MCP-220-00185-0N2Dummy cover for two 2.5" drive bays
    CBL-MCIO-1260M51MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM
    CBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWG
    CBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWG
    CBL-GNZ4-1265M5Y-X1GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG
    CBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWG
    CBL-MCIO-1250M5-Z2MCIO x8 (STR to STR),50cm,30AWG
    CBL-MCIO-1330M51MCIO (x8 to x8), STR, 30cm,G5,32AWG
    CBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWG
    20 NVMe + 4 SAS
    AOC-S3808L-L8iT ORAOC-S3908L-H8iR CBL-SAST-1296F-1001118 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM
    CBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWG
    CBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWG
    CBL-MCIO-1330M51MCIO (x8 to x8), STR, 30cm,G5,32AWG
    CBL-MCIO-1260M51MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM
    CBL-MCIO-1250M5-Z2MCIO x8 (STR to STR),50cm,30AWG
    CBL-GNZ4-1265M5Y-X1GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG
    CBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWG
    CBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWG
    24 NVMe
    CBL-MCIO-1330M51MCIO (x8 to x8), STR, 30cm,G5,32AWG
    CBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWG
    CBL-MCIO-1250M5-Z2MCIO x8 (STR to STR),50cm,30AWG
    CBL-GNZ4-1265M5Y-X1GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG
    CBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWG
    CBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWG
    CBL-MCIO-1218M5-11MCIO x8 (STR to STR),18CM,85OHM
    CBL-MCIO-1221M51MCIO x8 (STR to STR),21cm
    CBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWG
    CBL-MCIO-1260M51MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM
    24 SAS(16 SAS + 8 SAS)
    I2C CableCBL-CDAT-10621i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
    First 16 SAS SupportAOC-S3816L-L16iTOR AOC-S3916L-H16iRCBL-SAST-1264F-100CBL-SAST-1276F-100111116 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CMSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
    Last 8 SAS SupportAOC-S3808L-L8iT ORAOC-S3908L-H8iR CBL-SAST-1296F-1001118 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM
    24 SATA
    CBL-CDAT-10621i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
    MCP-220-21602-0B1Black 2.5" HDD dummy cover for 8 HDD, Hex hole
    CBL-MCIO-1223S4Y1MCIO x8 to 2 SlimSAS x4, STR, 23cm, 85Ohm
    CBL-MCIO-1275S4Y1MCIO x8 to 2 SlimSAS x4, STR, 75cm, 85Ohm
    CBL-MCIO-1255S4Y1MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG
    Chassis Rear Handle Kit
    MCP-290-21907-0N1Hyper 2U rear handle kit for immersion cooling
    Drive Bay Dummy Cover
    MCP-220-21602-0BORMCP-220-00185-0N-Dummy cover for eight 2.5" drive bays Dummy cover for two 2.5" drive bays
    PCIe Slot 1 (1 by16)(Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)
    CBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWG
    CBL-MCIO-1335M5R1MCIO x8 (RA to STR),35CM,32AWG
    CBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    LBL-40001Cabled PCIe Slot 2 Warning Label
    MCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5
    RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe slot 1+2 (2 by 8) (Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)
    CBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWG
    CBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWG
    CBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    MCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5
    RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe Slot 3 (1 by 16)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)
    CBL-GNZ4-1227M5YRR161GENZ 4C STR to 2 MCIO x8 RA/RA 27/16cm
    CBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    LBL-40001Cabled PCIe Slot 4 Warning Label
    MCP-120-82927-0N1Middle riser support bracket
    MCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5
    RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe slot 3+4 (2 by 8)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)
    CBL-GNZ4-1227M5YR211GENZ 4C STR to 2 MCIO x8 STR/RA 27/21cm
    CBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    MCP-120-82927-0N1Middle riser support bracket
    MCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5
    RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe slot 5 (1 by 16) + slot 7+8 (2 by 8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)
    CBL-MCIO-1245M5-Z2MCIO x8 (STR to STR),45cm,30AWG
    LBL-40001Cabled PCIe Slot 6 Warning Label
    MCP-240-21908-0N1Riser Bracket(4-slot)
    RSC-H2-6888G5L12U LHS Hyper Riser card with 4 PCIe 5.0 slots
    PCIe slot 5+7 (2 by 16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)
    RSC-H-6G5L11U LHS Hyper riser card with one PCIe 5.0 X16 slot
    CBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWG
    CBL-MCIO-1335M5R1MCIO x8 (RA to STR),35CM,32AWG
    CBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    LBL-40001Cabled PCIe Slot 6 Warning Label
    MCP-240-21908-0N1Riser Bracket(4-slot)
    RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe slot 5-8 (4 by 8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)
    MCP-240-21908-0N1Riser Bracket(4-slot)
    CBL-MCIO-1245M5-Z2MCIO x8 (STR to STR),45cm,30AWG
    RSC-H2-6888G5L12U LHS Hyper Riser card with 4 PCIe 5.0 slots
    PCIe slot 7 (1 by 16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)
    MCP-240-21908-0N1Riser Bracket(4-slot)
    RSC-H-6G5L11U LHS Hyper riser card with one PCIe 5.0 X16 slot
    PCIe slot 7+8 (2 by 16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)
    RSC-H2-6888G5L12U LHS Hyper Riser card with 4 PCIe 5.0 slots
    LBL-40002Cabled PCIe Slot 5/6 Warning Label
    MCP-240-21908-0N1Riser Bracket(4-slot)
    Rail Set
    MCP-290-21103-0N121.65" ball-bearing rail set for Hyper servers
    MCP-290-11903-0N(included in the system )130.5" ball-bearing rail set for Hyper servers
    MCP-290-11902-0N135.25" ball-bearing rail set for Hyper servers
    MCP-290-11901-0N141" ball-bearing rail set for Hyper servers
    Serial Port DTK Cable with PCIe Bracket
    CBL-0010L19-Pin 26CM Serial Port DTK Cable with PCIe Bracket
    TPM security module
    AOM-TPM-9672V1AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHS
    AOM-TPM-9670H-FIPS1AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHS
    AOM-TPM-9672V-FIPS1AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
