  2. A+ 2U Remote Workstation (H13SRH, CSE-HS201-R000NP)

A+ 2U Remote Workstation (H13SRH, CSE-HS201-R000NP)

AS -2115HV-TNRT

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10684/image_1920?unique=a1dbe1e

kr 23 826,56 23826.56 NOK kr 23 826,56

kr 23 826,56

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    Engineered for demanding applications, the Supermicro AS -2115HV-TNRT integrates powerful AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors and up to 2TB of DDR5 ECC registered memory. It offers robust expandability options with PCIe 5.0 slots and support for multiple GPUs, making it a versatile choice for AI development, cloud gaming, and more.

    Key Features

    • 2600W Redundant Power Supplies Titanium Level CertifiedOptional Configuration: 1600W and 2000W Redundant Power Supplies (*Full redundancy based on configuration and application load)
    • AMD Ryzen™ Threadripper™ PRO 7000WX series LGA-4844 up to 350W TDP Processors, CPU and Memory Overclocking supported
    • 8x DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-5200MHz Up to total 2TB
    • 1 AIOM/OCP NIC 3.0 Slot (Optional parts required for 2nd AIOM slot)Up to 4x PCIe 5.0 x16 (FHFL) slots or 8x PCIe 5.0 x8 (FHFL) slots
    • 8 Hot-swap 2.5" NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)

    Key Applications

    • Deep Learning/AI/Machine Learning Development
    • Cloud Gaming
    • Rack Workstation

    Description

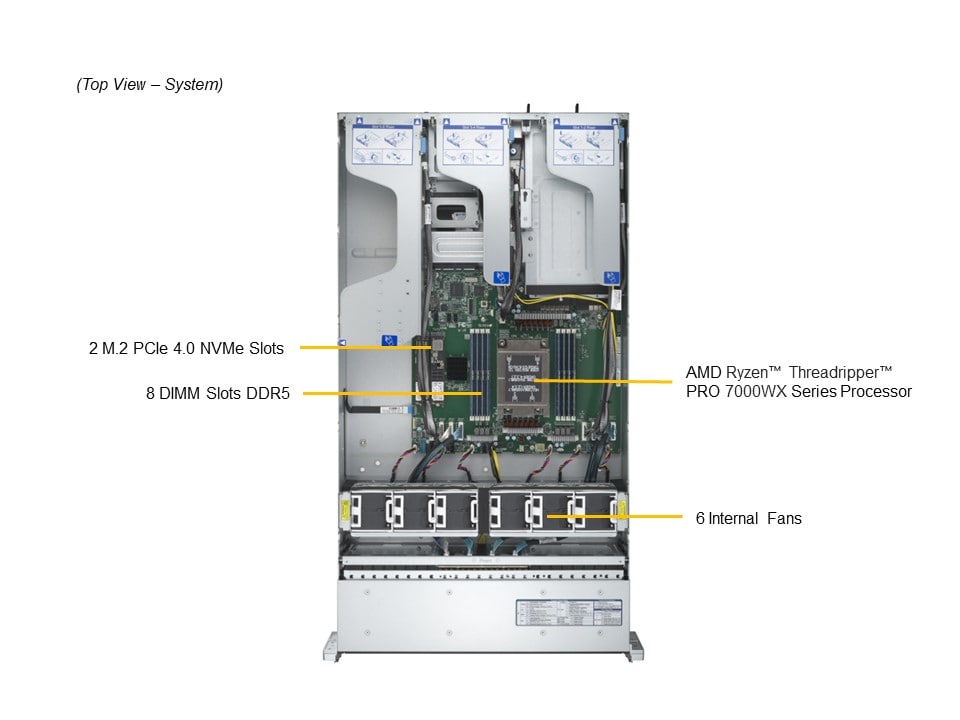

    The Supermicro AS -2115HV-TNRT is a high-performance 2U rackmount workstation designed to meet the needs of demanding computing tasks. Powered by AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors, this system supports up to 96 cores and 192 threads, providing unparalleled processing power. It includes 8 hot-swap drive bays supporting NVMe, SAS, and SATA drives, and offers expansive memory capabilities with up to 2TB of DDR5 ECC Registered memory. With multiple PCIe expansion slots, this workstation is ideal for integrating high-end GPUs and other peripherals, ensuring top-notch performance in AI development, cloud gaming, and rack workstations.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Workstation AS -2115HV-TNRT
    Motherboard
    Installed Motherboard
    • Super H13SRH
    Processor
    CPU
    • Single processor(s)
    • AMD Ryzen™ Threadripper™ PRO 7000 WX-Series
    Core Count
    • Up to 96C/192T; Up to 384MB Cache
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 4 double-width GPUs
    Supported GPU
    • NVIDIA PCIe: RTX A6000, RTX 6000 Ada Generation, L40S
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCIe
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • Via AIOM
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    BIOS Features
    • SMBIOS 3.5 or later
    • UEFI 2.9
    • ACPI 6.5SMBIOS 3.6 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    • Power-on mode control for AC power loss recovery
    • Power button override mechanism,
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Voltage
    • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-HS201-R000NFP
    Dimensions and Weight
    Height
    • 3.5" (88.9 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 31.74" (806.2 mm)
    Package
    • 9.96" (H) x 26.46" (W) x 43.31" (D)
    Weight
    • Gross Weight: 75 lbs (34 kg)
    • Net Weight: 45 lbs (20.5 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    Option A:
    • 8 PCIe 5.0 x8 (in x16) FHFL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
    System Cooling
    Fans
    • 6x 6cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 2600W: 200-240Vac / 50-60Hz
    • 2600W: 200-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 216A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    2nd AIOM
    MCP-120-20123-0N12nd AIOM cage for AOM-AIOM-2X8 on CSE-HS 201
    AOM-AIOM-2X8-G5-P1AIOM adaptor board (cable solution), PCIe Gen-5,RoHS
    CBL-CDAT-1060-3012x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS
    CBL-MCIO-1240M52MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHS
    4 NVMe + 4 SATA
    CBL-CDAT-10621PicoBlade 1.25, 1x4 to 1x4,SB,45cm,3x 26AWG"
    CBL-MCIO-1243S4Y1(MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm
    CBL-MCIO-1330M51MCIO (x8 to x8), STR, 30cm,G5,32AWG
    CBL-MCIO-1332M51MCIO (x8 to x8), STR, 32cm,G5,32AWG
    8 NVMe
    CBL-MCIO-1330M52MCIO (x8 to x8), STR, 30cm,G5,32AWG
    CBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWG
    CBL-MCIO-1332M51MCIO (x8 to x8), STR, 32cm,G5,32AWG
    8 SAS
    AOC-S3908L-H8IR-16DD18 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD
    CBL-CDAT-10621PicoBlade 1.25, 1x4 to 1x4,SB,45cm,3x 26AWG
    CBL-SAST-1264F-1001Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
    AOC-S3808L-L8IT18 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDD
    8 SATA
    CBL-MCIO-1243S4Y1(MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm
    GPU and Riser Power Cables
    CBL-PWEX-1364-26112VHPWR 2x6+4S to 2x4,MicroHi,26cm,6.25A/p,16AWG,RoHS
    CBL-PWEX-1172-26541McHi,P3.0(2x4 to 2x2)+ to MnFt,2x4,PH4.2,26/54CM,9A/p,16
    CBL-PWEX-1171-26541McHi,P3.0(2x4 to 2x2)+ to MnFt,P4.2,2x (2x3+2x1),26/54cm
    CBL-PWEX-1136YVB-451(2x4 to 3 2x2), PH3.0,45cm,8.5A/p,18AWG,RoHS
    CBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoH
    PCIe 5.0 x16 (4x double width)
    CBL-MCIO-1335M5R2MCIO x8 (RA to STR),35CM,32AWG
    MCP-120-20118-0N1Middle riser support bracket for 2U Intel and AMD CSE-HS201
    MCP-240-21108-0N2Riser Bracket(2-slot) for RSC-H-68G5
    MCP-240-21908-0N1Riser Bracket(4-slot)
    RSC-H-68G531U LHS Hyper Riser card with two PCIe 5.0 slots
    RSC-H-A6G5H11U Active LHS Hyper riser card with one PCIe 5.0 slot
    CBL-MCIO-1245M5R2MCIO x8 (RA to STR),45cm,30AWG
    CBL-GNZ4-1227M5YRR161(GENZ 4C STR to 2 MCIO) x8 RA/RA 27/16cm
    PCIe 5.0 x16 (8x single width)
    MCP-120-20118-0N1Middle riser support bracket for 2U Intel/AMD in CSE-HS201
    RSC-H2-6888G5L12U LHS Hyper Riser card with 4 PCIe 5.0 slots
    MCP-240-21908-0N1Riser Bracket(4-slot)
    CBL-GNZ4-1227M5YR211(GENZ 4C STR to 2 MCIO) x8 STR/RA 27/21cm
    RSC-H-68G521U LHS Hyper Riser card with two PCIe 5.0 slots
    MCP-240-21108-0N2Riser Bracket(2-slot) for RSC-H-68G5
    CBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWG
    CBL-MCIO-1245M5-Z3MCIO x8 (STR to STR),45cm,30AWG"
    Power Supplies and Cables
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-PWCD-0376-IS2PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
    CBL-PWCD-0565-CT2PWCD, US, IEC60320 C14 TO C19, 6ft, 15A/250V, 14AWG, RoHS
    CBL-PWCD-0579-12PWCD,US,IEC60320 C14 TO C13,6FT,14AWG,RoHS
    CBL-PWCD-0612JPBK12PWCD,JPN,IEC60320 C13 TO C14,6FT,12A/250V,BK,RoHS
    CBL-PWCD-09252PWCD,US,NEMA 5-15P TO IEC60320 C19, 6FT, 14AWG, 15A/125V
    PWS-2K63A-1R21U 2600W redundant power supply 220-264Vac, C19 plug
    PWS-2K07A-1R21U 2000W redundant power supply 90-264Vac
    PWS-1K63A-1R21U 1000W/1600W redundant power supply 90-264Vac
