AS -2123BT-HNC0R

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10694/image_1920?unique=29062ce

kr 69 408,37 69408.37 NOK kr 69 408,37

kr 69 408,37

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

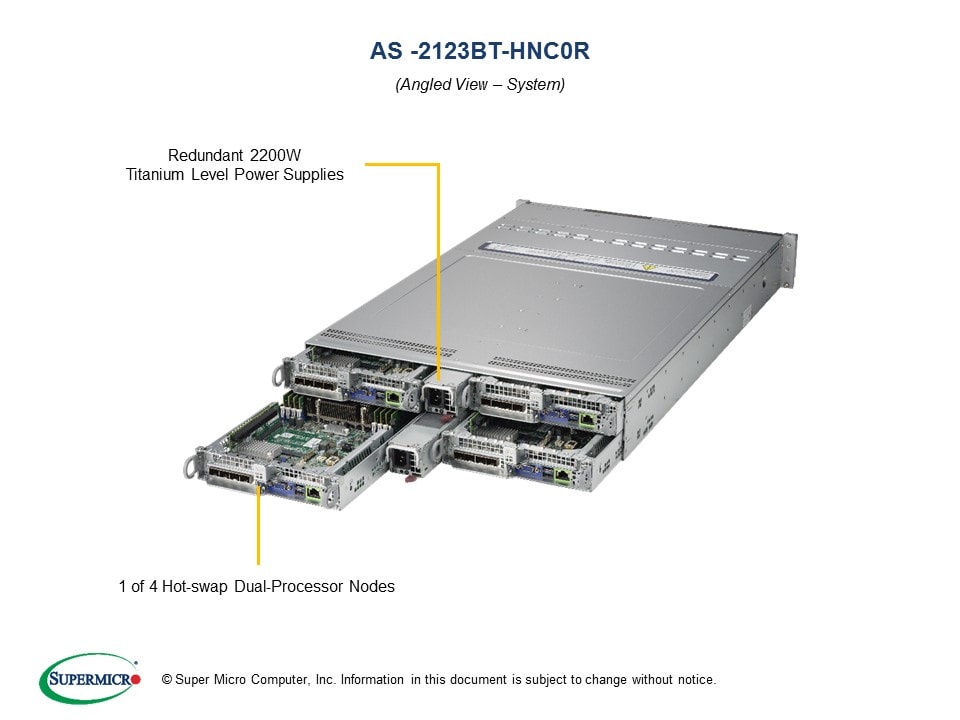

    The Supermicro AS -2123BT-HNC0R features four hot-pluggable systems (nodes) in a 2U form factor, each supporting Dual AMD EPYC™ 7001/7002* Series Processors, up to 4TB ECC DDR4 3200MHz SDRAM, and flexible networking options.

    Key Features

    • Compute Intensive Application - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged
    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
    • 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors) 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
    • 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • 6 SAS3, or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays M.2 Interface : 1 SATA/PCI-E 3.0 x4 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
    • SAS3 support via Broadcom 3008; IT mode
    • Video via Aspeed AST2500 BMC
    • 2200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Key Applications

    • HPC
    • Data Center
    • Enterprise Server
    • Hyperscale
    • Hyperconverged

    Description

    The Supermicro AS -2123BT-HNC0R is ideal for HPC, data centers, and enterprise servers. Each node in this 2U rackmount server supports dual AMD EPYC™ 7001/7002* Series Processors, up to 4TB of ECC DDR4 memory, and flexible networking via SIOM cards. It includes 6 SAS3 or 4 NVMe + 2 SAS3 hot-swap drive bays per node, integrated IPMI 2.0 with KVM, and redundant 2200W power supplies for high availability.

    Product Specifications

    Specification Details
    Product SKUs- Discontinued SKU (EOL). Please contact sales-rep for alternative options.
    AS -2123BT-HNC0R
    • A+ Server 2123BT-HNC0R ( Black )
    Processor/Chipset (per Node)
    CPU
    • Dual AMD EPYC™ 7001/7002*series Processors(* Board revision 2.x required)
    • Socket SP3
    • Supports CPU TDP 200W / cTDP up to 200W**
    Cores
    • Up to 32 Cores(Board revision 1.x + 7001 Processors)
    • Up to 64 Cores(Board revision 2.x + 7002 Processors)
    System Memory (per Node)
    Memory Capacity
    • 16 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM(7001 Processors)
    • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM(Board revision 2.x required + 7002 Processors)
    • 8-channel memory bus
    • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
    Memory Type
    • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs(7001 Processors)
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs(Board revision 2.x required + 7002 Processors)
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(* Board revision 2.x required + 7002 processors)
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices (per Node)
    Chipset
    • System on Chip
    SAS
    • SAS3 (12Gbps) via Broadcom 3008; IT mode
    Network
    • 1 PCI-E 3.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output (per Node)
    LAN
    • Provided via SIOM (optional)
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    DOM
    • 1 Super DOM (Disk on Module) port
    Others
    • 1 COM port (header)
    • 1 TPM 2.0 header
    System BIOS (per Node)
    BIOS Type
    • AMI 128Mb SPI Flash ROM
    Management (per Node)
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / APM Power Management
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217BHQ+-R2K22BP2
    Dimensions and Weight
    Width
    • 17.68" (449mm)
    Height
    • 3.47" (88mm)
    Depth
    • 28.75" (730mm)
    Package
    • 24.33" (618mm) H x 9.57" (243mm) W x 45.08" (1145mm) D
    Weight
    • Gross Weight: 85 lbs (38.6 kg)
    • Net Weight: 54.5 lbs (24.7 kg)
    Available Colors
    • Black
    Front Panel (per Node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 3.0 (x16) Low-profile slots
    • 1 SIOM card support(must bundle with network card)
    M.2
    • Interface: 1 SATA/PCI-E 3.0 x4
    • Form Factor: 2280, 22110
    • Key: M-key
    Drive Bays (per Node)
    Hot-swap
    • 6 Hot-swap 2.5" SAS3 drive bays or4 NVMe + 2 SAS3 Hot-swap 2.5"Note: NVMe Gen4 drives may only operate at Gen3 speed
    System Cooling
    Fans
    • 4 Heavy duty 8cm PWM fans
    Power Supply
    • 2200W Redundant Power Supplies with PM Bus
    Total Output Power
    • 1200W/1800W/1980W/2090/2200W
    Dimension(W x H x L)
    • 45 x 40 x 480 mm
    Input
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 180-220Vac (for UL/cUL only)
    • 2200W: 220-240Vac (for UL/cUL only)
    • 2090W: 230-240Vdc (for CCC only)
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
    • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
    • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • Gold Finger
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 30°C (50°F ~ 86°F)* Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Motherboard (per Node)
    • Super H11DST-B

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-H11DST-B4Super H11DST-B Motherboard
    CSE-217BHQ+-R2K22BP212U Chassis
    Backplane
    BPN-ADP-6S3008N4-1UB4Big Twin 1U hybrid ADP supporting 6x SAS3 and 4x NVMe
    BPN-SAS3-217BHQ-N412U 4-Node 24-Port Backplane Supports 2x2.5\" SATA3/SAS3 SSD/HDD and 4x2.5\" SATA3/SAS3/NVMe Stoage Media per Node
    Drive Tray(s)
    MCP-220-00141-0B-BULK8Black Gen3 hot-swap 2.5 inch HDD tray with lock improved EMI
    MCP-220-00144-0B-BULK16Black Gen3 hot-swap 2.5 inch HDD tray with lock, orange tab
    Parts
    MCP-240-21730-0N1217B BigTwin type I (Impact) BPN retention bkt w/ foam assy
    Riser Card
    RSC-P-64RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
    RSC-R1UTP-E16R41U RHS TwinPro Riser card with one PCI-E x16 slot
    Software
    SFT-OOB-LIC4License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0062PM41U Passive Front CPU Heat Sink w/ a 30-mm Wide Middle Air Channel for AMD H11 2U4N Big Twin Series Servers
    SNK-P0062PW41U Proprietary 93-mm Wide Passive Rear CPU Heat Sink for AMD H11 2U4N Big Twin Series Servers
    Power Supply
    PWS-2K22A-1R21U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48
    FAN
    FAN-0183L4480x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers

    Optional Part List

    Part Number Quantity Description
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    TPM security module
    AOM-TPM-9655V-TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    SIOM
    --Supermicro SIOM solutions [ Details ]
