  2. H12DST-B,CSV-217BHQ+-R2K22BP,DP,NVMe/SATA 2U 4 Nodes 2.5

H12DST-B,CSV-217BHQ+-R2K22BP,DP,NVMe/SATA 2U 4 Nodes 2.5

SKU: AS -2124BT-HNTR
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

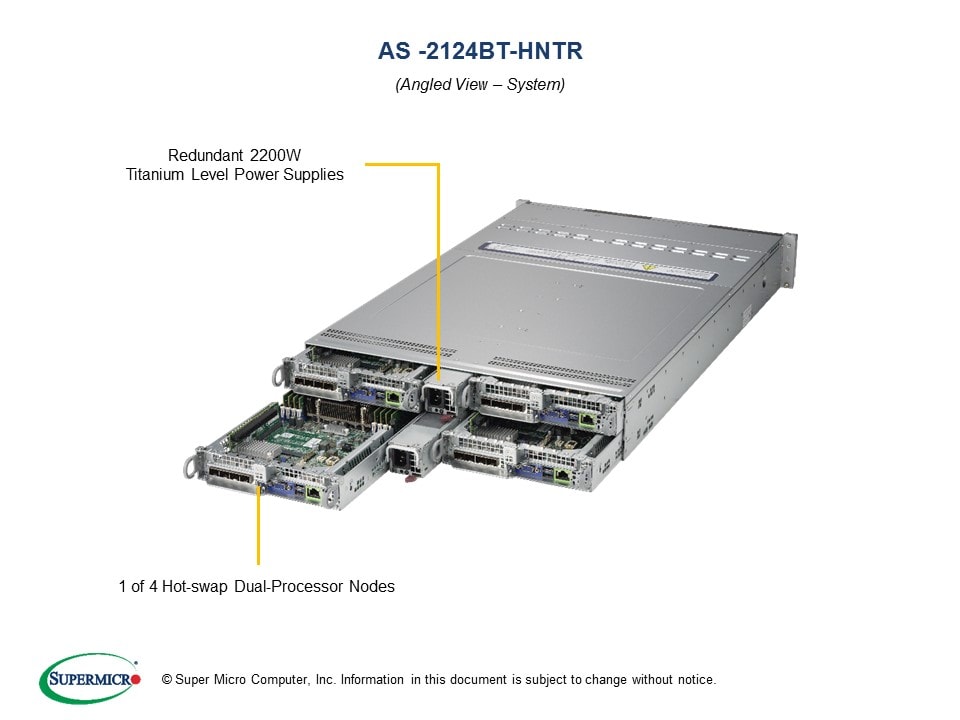

https://safeconsulting.no/web/image/product.template/10660/image_1920?unique=8816bc7

kr 66 621,62 66621.62 NOK kr 66 621,62 Ekskl. mva

kr 66 621,62 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Supermicro AS-2124BT-HNTR supports dual AMD EPYC™ 7003/7002 Series Processors, up to 4TB ECC memory, and flexible networking options, making it ideal for HPC, Data Centers, and Enterprise Servers.

    Nøkkelfunksjoner

    • Compute Intensive Applications - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged
    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • Dual AMD EPYC™ 7003/7002 Series Processors (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
    • Up to 4TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 16 DIMM slots
    • 2 PCI-E 4.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • 6 Hot-swap 2.5" drive bays (4 NVMe [Gen3] + 2 SATA3, or 6 SATA3) M.2 Interface : 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
    • Video via Aspeed AST2500 BMC
    • 2200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Viktige bruksområder

    • HPC
    • Data Center
    • Enterprise Server
    • Hyperscale
    • Hyperconverged

    Beskrivelse

    The Supermicro AS-2124BT-HNTR is a high-performance server solution designed for compute-intensive applications. Each of the four nodes supports dual AMD EPYC™ 7003/7002 Series Processors, ensuring optimal performance. The system includes up to 4TB ECC 3DS LRDIMM, 2 PCI-E 4.0 x16 (LP) slots, and integrated IPMI 2.0 + KVM with dedicated LAN for robust management capabilities. In addition, the server supports 6 Hot-swap 2.5" drive bays, inclusive of NVMe and SATA3 drives. With its 2200W redundant power supplies and advanced cooling system, it ensures high availability and efficiency. This server is tailored for environments requiring scalable, powerful computing solutions, such as hyperscale and hyperconverged infrastructures.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    AS -2124BT-HNTR
    • A+ Server 2124BT-HNTR ( Black )
    Processor/Chipset (per Node)
    CPU
    • Dual AMD EPYC™ 7003/7002 Series Processors(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
    • Socket SP3
    • Support CPU TDP / cTDP up to 225W*
    Cores
    • Up to 64 Cores
    System Memory (per Node)
    Memory Capacity
    • 16 DIMM slots
    • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
    • 8-channel memory bus
    • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices (per Node)
    Chipset
    • System on Chip
    Storage
    • NVMe
    • SATA3 (6Gbps) via AMD EPYC
    Network
    • 1 PCI-E 4.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output (per Node)
    LAN
    • Provided via SIOM (optional)
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    DOM
    • 1 Super DOM (Disk on Module) port
    Others
    • 1 COM port (header)
    • 1 TPM 2.0 header
    System BIOS (per Node)
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management (per Node)
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / APM Power Management
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217BHQ+-R2K22BP
    Dimensions and Weight
    Width
    • 17.68" (449mm)
    Height
    • 3.47" (88mm)
    Depth
    • 28.75" (730mm)
    Package
    • 24.33" (618mm) H x 9.57" (243mm) W x 45.08" (1145mm) D
    Weight
    • Gross Weight: 85 lbs (38.6 kg)
    • Net Weight: 54.5 lbs (24.7 kg)
    Available Colors
    • Black
    Front Panel (per Node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 4.0 (x16) Low-profile slots
    • 1 SIOM card support(must bundle with network card)
    M.2
    • Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
    • Form Factor: 2280, 22110
    • Key: M-key
    Drive Bays (per Node)
    Hot-swap
    • 4 Hot-swap 2.5" NVMe (Gen3)/SATA3 + 2 Hot-swap 2.5" SATA3 drive baysNote: NVMe Gen4 drives may only operate at Gen3 speed
    System Cooling
    Fans
    • 4 Heavy duty 8cm PWM fans
    Power Supply
    • 2200W Redundant Power Supplies with PM Bus
    Total Output Power
    • 1200W/1800W/1980W/2090/2200W
    Dimension(W x H x L)
    • 45 x 40 x 480 mm
    Input
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 180-220Vac (for UL/cUL only)
    • 2200W: 220-240Vac (for UL/cUL only)
    • 2090W: 230-240Vdc (for CCC only)
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
    • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
    • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • Gold Finger
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 30°C (50°F ~ 86°F)* Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Motherboard (per Node)
    • Super H12DST-B

    Valgfrie Opsjoner

    Part Number Quantity Description
    Power Supply
    PWS-3K04A-1R-1U 1400W/2880W/3000W AC/DC PSU with C21 inlet, Titanium, For Bigtwin
    PWS-2K60A-1R-1U 2600W Redundant Titanium PWS, 45(W) X 40(H) X 480(L)
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    TPM security module
    AOM-TPM-9655V-TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    SATADOM
    SSD-DM128-SMCMVN1-SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
    SIOM
    --Supermicro SIOM solutions [ Details ]
