  2. MBD-H12DSG-Q-CPU6-P, 228GTS, 3kW PWS, HF, RoHS/REACH

MBD-H12DSG-Q-CPU6-P, 228GTS, 3kW PWS, HF, RoHS/REACH

SKU: AS -2124GQ-NART+
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10672/image_1920?unique=7ff10cb

kr 72 871,08 72871.08 NOK kr 72 871,08 Ekskl. mva

kr 72 871,08 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

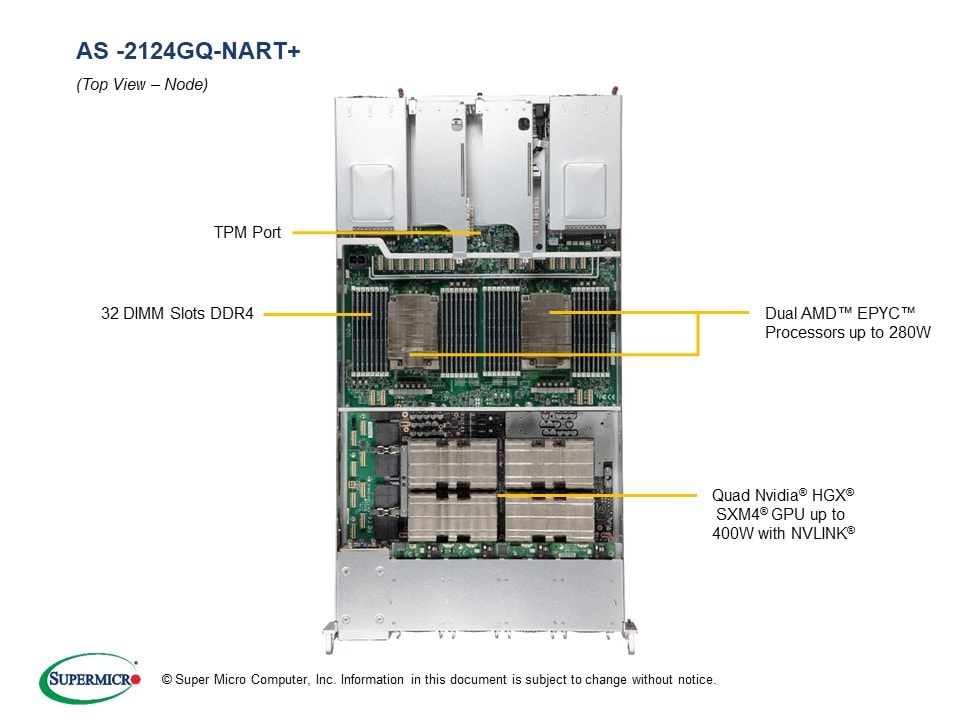

    The Supermicro AS -2124GQ-NART+ is a high-performance server designed for AI/ML, HPC, and cloud computing applications. It features NVIDIA® HGX™ A100 4-GPU and dual AMD EPYC™ processors, providing exceptional performance and reliability.

    Nøkkelfunksjoner

    • High Density 2U System with NVIDIA® HGX™ A100 4-GPU; Highest GPU communication using NVIDIA® NVLINK™, 4 NICs for GPUDirect RDMA (1:1 GPU Ratio)
    • Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
    • Direct connect PCI-E Gen4 Platform with NVIDIA® NVLink™ v3.0 up to 600GB/s interconnect
    • On board BMC supports integrated IPMI 2.0 + KVM with dedicated 10G LAN
    • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
    • 4 PCI-E Gen 4 x16 (LP), 1 PCI-E Gen 4 x8 (LP)
    • 4 Hot-swap 2.5" drive bays (SAS/SATA/NVMe Hybrid)
    • 3000W Redundant Titanium Level (96%+) Power Supplies (full redundancy based on 40GB HGX A100 4-GPU configuration ONLY and application load)

    Viktige bruksområder

    • AI/ML, Deep Learning Training and Inference
    • High-performance Computing (HPC)
    • Cloud Computing
    • Research Laboratory/National Laboratory
    • Autonomous Vehicle Technologies
    • Molecular Dynamics Simulation

    Beskrivelse

    The Supermicro AS -2124GQ-NART+ is the top choice for applications requiring high computational power. Equipped with NVIDIA® HGX™ A100 4-GPU for superior GPU communication using NVIDIA® NVLINK™, and dual AMD EPYC™ 7003/7002 series processors, this 2U system offers unparalleled performance. It supports up to 8TB of DDR4 memory and features a plethora of I/O options including PCI-E Gen4 slots and hot-swap drive bays. The advanced BMC supports IPMI 2.0, KVM over LAN, and robust system management capabilities.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    AS -2124GQ-NART+
    • A+ Server 2124GQ-NART+ ( Black )
    Motherboard
    Installed Motherboard
    • Super H12DSG-Q-CPU6
    Processor/Cache
    CPU
    • Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP up to 280W*
    Cores
    • Up to 128 Cores (64 per CPU)
    Note
    • * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    GPU
    Supported GPUs
    • HGX A100 4-GPU 40GB/80GB SXM4 Multi-GPU Board
    CPU-GPU Interconnect
    • PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root
    GPU-GPU Interconnect
    • NVIDIA® NVLink™ GPU-to-GPU Interconnect
    System Memory
    Memory Capacity
    • 32 DIMM slots
    • Up to 8TB 3DS ECC DDR4-3200MH SDRAM
    Memory Type
    • 3200MHz ECC DDR4 SDRAM
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    Network
    • Dual RJ45 10GbE-aggregate host LAN, RJ45 1GbE IPMI
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics & System Management
    • ASPEED AST2600 BMC
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GbE-aggregate host LAN ports
    • 1 RJ45 1GbE Dedicated IPMI management port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA Connector (rear)
    Others
    • 1 COM port (header)
    • 1 TPM 2.0 (header)
    System BIOS
    BIOS Type
    • AMI 256Mb SPI Flash ROM
    Management
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SPM , SUM
    • SuperDoctor® 5
    • Watchdog
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmountable
    Model
    • CSE-228GTS-R3K02P
    Dimensions
    Height
    • 3.5" (89mm)
    Width
    • 17.2" (437mm)
    Depth
    • ~32.7" (830.3mm)
    Weight
    • Net Weight: 78.5 lbs (35.6 kg)
    • Gross Weight: 88.5 lbs (40.1 kg)
    Package Dimensions
    • 45.5" L x 22.5" W x 11" H
    Available Colors
    • Black
    Drive Bays / Storage
    Hot-swap
    • 4 Hot-swap 2.5" drive bays (SATA/NVMe Hybrid or SAS with optional HBA)
    Expansion Slots
    PCI-Express
    • 4 PCI-E Gen4 x16 (LP) slots - supporting HGX A100 4-GPU's 1:1 connection to 4 NICs
    • 1 PCI-E Gen 4 x8 (LP) slot
    System Cooling
    Fans
    • 4 Hot-swap heavy duty fans
    Power Supply
    • 3000W Redundant Titanium Level Power Supplies
    Dimension(W x H x L)
    • 106.5 x 82.4 x 203.5 mm
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    GPU Baseboard*
    GPU-NVTHGX-A100-SXM4-4-NVIDIA Redstone GPU Baseboard, 4 A100 40GB SXM4
    Drive Tray
    MCP-220-00187-0B-SATA or SAS Maroon Drive Carrier, tool-less with lock feature
    Network Card(s)
    AOC-623106AN-CDAT-ConnectX-6 Dx 100GbE Ethernet Adapter Card, dual port QSFP56 PCIe 4.0 x16, RoHS
    TPM security module
    AOM-TPM-9655V-TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
