  2. UP Mini-Tower (H13SAE-MF, CSE-731i-668B),HF, RoHS

UP Mini-Tower (H13SAE-MF, CSE-731i-668B),HF, RoHS

AS -3015A-I

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10685/image_1920?unique=29062ce

kr 8 996,91 8996.91 NOK kr 8 996,91

kr 8 996,91

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro AS -3015A-I is a mini-tower system based on the AMD Ryzen 7000 series processors, designed with flexibility and high performance in mind. It offers extensive storage options and a flexible configuration, making it suitable for a range of applications including 2D/3D content creation, email, firewall, and application server.

    Key Features

    • AMD EPYC™ 4004 Series Processor
    • 4 Dual channel ECC/Non-ECC DDR5 unbuffered DIMM slots supporting up to 192GB memory
    • 2 PCIe 5.0 x16 (16/NA or 8/8) high-throughput slots and 2 PCIe 5.0x4 M.2 slots
    • Dual 1GbE LAN (Intel® I210-AT)

    Key Applications

    • 2D/3D Content Creation
    • Email/Firewall/Application Server
    • Designed for small and medium businesses

    Description

    AS -3015A-I Side View

    Designed with versatility in mind, the latest mini-tower system based on AMD Ryzen 7000 series processor offers versatile storage options with 2 PCIe Gen5 M.2 slots and a flexible configuration, ensuring it seamlessly adapts to your evolving business requirements. With remote management features via IPMI, this system can be deployed as an entry-level server, workstation, or desktop. No more settling for one-size-fits-all solutions - this system is ready to be tailored to elevate your IT infrastructure.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -3015A-I
    Motherboard
    Installed Motherboard
    • Super H13SAE-MF
    Processor
    CPU
    • Single Socket AM5 (LGA-1718)
    • AMD EPYC™ 4004 Series Processor
    Core Count
    • Up to 16C/32T
    Note
    • Supports up to 170W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width GPU
    Supported GPU
    • NVIDIA PCIe: RTX 4070, RTX A4000, RTX A2000
    • AMD PCIe: Radeon Pro W7500, Radeon Pro W7800
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • AMD B650
    Network Connectivity
    • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    • 2 RJ45 1GbE with Intel® I210-AT
    Input / Output
    Video
    • 1 VGA port(s)
    • 1 HDMI 2.0b port(s)
    • 1 DisplayPort 1.4a port(s)
    Audio
    • Rear Audio
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    PC Health Monitoring
    Voltage
    • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
    Chassis
    Form Factor
    • Mini-Tower
    Model
    • CSE-731i-668B
    Dimensions and Weight
    Height
    • 14.25" (362 mm)
    Width
    • 7.25" (184 mm)
    Depth
    • 16.75" (425 mm)
    Package
    • 20" (H) x 11" (W) x 21" (D)
    Weight
    • Gross Weight: 22 lbs (9.98 kg)
    • Net Weight: 18 lbs (8.16 kg)
    Available Color
    • Black

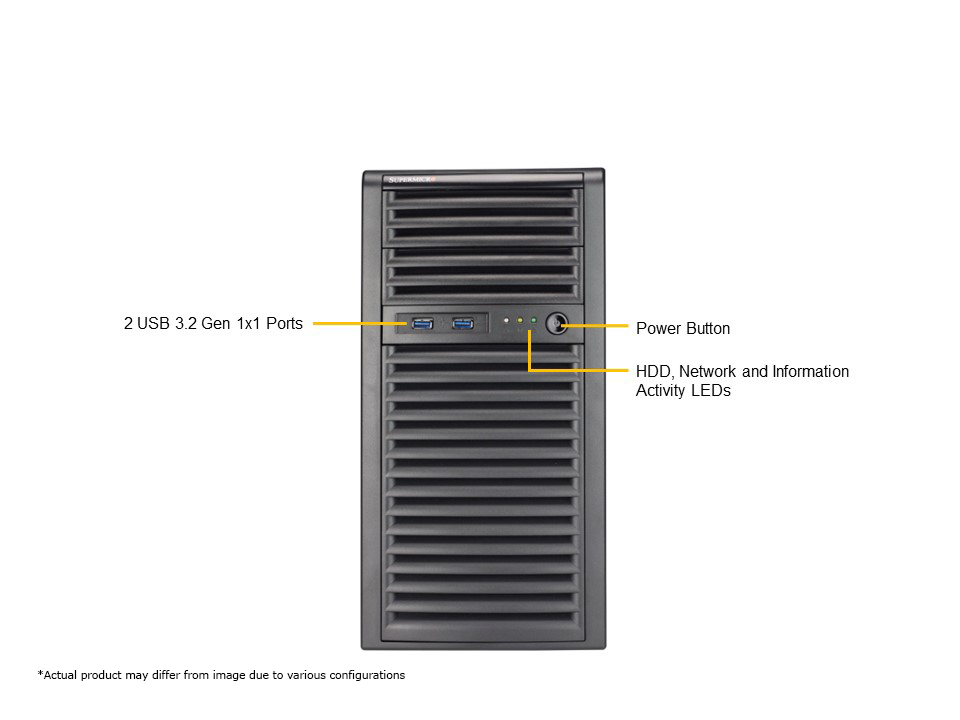

    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power LED
    • System Overheat LED
    Buttons
    • Power On/Off button
    Port
    • USB 3.0 Port(s)
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x16 FHFL slot

    Option A:
    • 2 PCIe 5.0 x8 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front fixed 3.5" SATA drive bays

    Option A: Total 4 bays:
    • 4 front fixed 2.5" SATA drive bays

    M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
    Peripheral Bays
    • 2 5.25" peripheral bays
    System Cooling
    Fans
    • 1x 90mm Fan(s)
    • 1x 80mm Fan(s)
    Power Supply
    1x 668W Platinum Level (92%) power supply
    Dimension (WxHxL):
    • 150 x 86 x 185 mm

    AC Input:
    • 668W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 54A / Min: 0.2A (100Vac-240Vac)

    5V SB:
    • Max: 2A / Min: 0A

    Output Type:
    • 24pin ATX

    Certification:
    • Platinum Level

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-H13SAE-MF1Super H13SAE-MF Motherboard
    CSE-731i-668B1Mini-Tower Chassis
    Cable
    CBL-0044L47pin SATA (STR to STR), 57.5cm, Flat, PBF
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    CBL-0084L116PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
    CBL-CUSB-1007120p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
    Fan
    FAN-0247L4180x80x25 mm, 5K RPM Cooling Fan for AS -3015A-I,RoHS
    FAN-0108L4192X25MM 4-PIN PWM REAR EXT FAN FOR SC731
    Parts
    MCP-260-00185-0B1STD I/O Shield for H13SAE-MF with EMI Gasket & Black Mylar
    MCP-110-00033-0N2Binding Head Screw (with teeth) #632*4.5L
    Power Supply
    PWS-668-PQ1PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    *Drive Tray(s)
    MCP-220-73101-0B4SC731 Tool-less Internal 3.5inch HDD Tray

    Optional Part List

    Part Number Quantity Description
    DVD Kit
    CBL-SAST-0624170cm SATA Cable S-S 30AWG
    CBL-0082L1Y SPLIT SATA POWER ADAPTER
    DVM-TEAC-DVDRW24-HBT11BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
    HDD Converter
    MCP-220-73102-0N12.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
    Heatsink
    SNK-P0093AP41High Performance CPU Heatsink
    Mobile Rack
    CSE-M14TQC1SAS3/SATA mobile rack for 4x 2.5" drives
    TPM
    AOM-TPM-9670V1SPI TPM 2.0
