  2. (EOL)H11DSi-(NT),CSE-745BTS-R1K28NDBP-SQ,4U AMD DP TowerSer

(EOL)H11DSi-(NT),CSE-745BTS-R1K28NDBP-SQ,4U AMD DP TowerSer

AS -4023S-TRT

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10695/image_1920?unique=29062ce

kr 21 679,00 21679.0 NOK kr 21 679,00

kr 21 679,00

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro AS -4023S-TRT is a versatile, high-performance server suitable for cloud computing, data centers, and general-purpose applications. Powered by dual AMD EPYC™ processors, it offers expansive memory and robust connectivity.

    Key Features

    • • Cloud Computing • Data Center • General purpose, SMB, Web Hosting
    • Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
    • 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors) 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
    • Expansion slots: 2 PCI-E x16 slots 3 PCI-E x8 slots M.2 Interface : 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module) M.2 Form Factor : 2280, 22110 M.2 Key : M-key
    • Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    • Dual 10G LAN ports
    • 8 hot-swap 3.5" SATA3 drive bays; 3 peripheral 5.25" drive bays; 1 M.2 NVMe SSD supported
    • 1280W Redundant Power Supplies Platinum Level (Full redundancy based on configuration and application load)

    Key Applications

    • Cloud Computing
    • Data Center
    • Web Hosting

    Description

    The Supermicro AS -4023S-TRT is designed for high-demand environments including cloud computing, data centers, and SMBs. Featuring dual AMD EPYC™ 7001/7002 series processors, it supports up to 4TB of memory in 16 DIMMs, eight hot-swap drive bays, and numerous expansion slots. Integrated with IPMI 2.0 + KVM, dual 10G LAN ports, and redundant power supplies, this server ensures optimal performance and reliability.

    Product Specifications

    Specification Details
    Product SKUs- Discontinued SKU (EOL). Please contact sales-rep for alternative options.
    AS -4023S-TRT
    • A+ Server 4023S-TRT
    Motherboard
    Processor/Chipset
    CPU
    • Dual AMD EPYC™ 7001/7002*series Processors(* Board revision 2.x required)
    • Socket SP3
    • Supports CPU TDP 225W / cTDP up to 240W*
    Cores
    • Up to 32 Cores(Board revision 1.x + 7001 Processors)
    • Up to 64 Cores(Board revision 2.x + 7002 Processors)
    Chipset
    • System on Chip (SoC)
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM(7001 Processors)
    • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM(Board revision 2.x required + 7002 Processors)
    • 8-channel memory bus
    Memory Type
    • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs(7001 Processors)
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs(Board revision 2.x required + 7002 Processors)
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(* Board revision 2.x required + 7002 Processors)
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    SATA
    • SATA3 (6 Gbps)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2500 BMC
    Network Controllers
    • 2 Intel® X550 10GBase-T Ethernet Controllers
    • 1 Realtek RTL8211E PHY (dedicated IPMI)
    VGA
    • ASPEED AST2500 BMC
    Expansion Slots
    PCI-Express
    • 2 PCI-E x16 slots
    • 3 PCI-E x8 slots
    M.2
    • Interface: 1 SATA/PCI-E 3.0 x2(Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
    • Form factor: 2280, 22110
    • Key: M-key
    Input / Output
    SATA
    • 10 SATA3 (6 Gbps) ports
    LAN
    • Dual 10G LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    • 2 USB 2.0 ports (rear)
    VGA
    • 1 VGA port
    SAS
    • 8 SAS3 ports support via optional Add-on Card
    NVMe
    • 2 NVMe support with optional cables
    Others
    • 1 COM port (rear)
    • 2 SATA DOM power connector
    • TPM 1.2 header
    System BIOS
    BIOS Type
    • AMI 128Mb SPI Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 5.1
    • USB Keyboard Support
    • SMBIOS 3.1.1
    Chassis
    Form Factor
    • Tower / 4U Rackmountable
    Model
    • CSE-745BTS-R1K28BP2
    Dimensions and Weight
    Height
    • 17.8" (452mm)
    Width
    • 7" (178mm)
    Depth
    • 25.5" (647mm)
    Package
    • 24.6" (H) x 14" (W) x 31.3" (D)
    Weight
    • Net Weight: 59 lbs (26.76 kg)
    • Gross Weight: 62 lbs (28.12 kg)

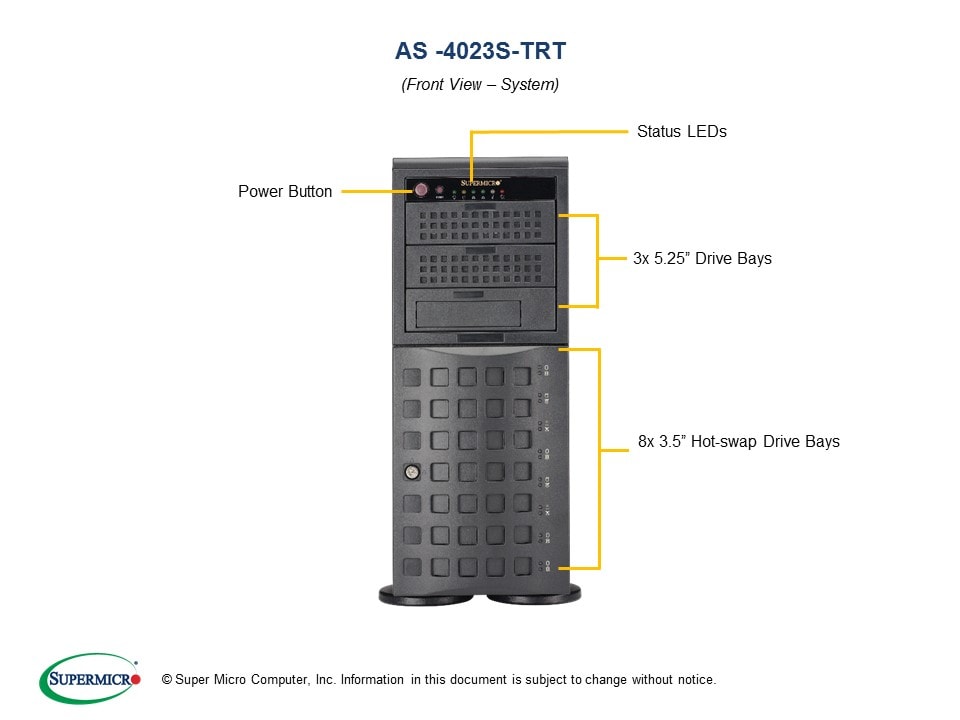

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2x Network activity LEDs
    • System Overheat LED / Fan fail LED /UID LED
    Drive Bays
    Hot-swap
    8 hot-swap 3.5" Drive Bays::
    • 8 SATA3 by default
    • or 8 SAS3

    Peripheral Drives
    5.25"
    • 3 peripheral 5.25" drive bays
    Backplane
    HDD Backplane
    • Supports 8 SATA3 or 8 SAS3 HDD
    System Cooling
    Fans
    • 3 internal hot-swap 9400 RPM fans
    • 2 external rear hot-swap 9400 RPM fans
    Power Supply
    • 1280W Redundant High-efficiency Digital Power Supplies w/ PM Bus 1.2
    AC Input
    • 1000W Output @ 100-140V, 8-12A, 50-60Hz
    • 1280W Output @ 180-240V, 6-8A, 50-60Hz
    DC Output
    • 1000W: +12V/83A; +5Vsb/4A
    • 1280W: +12V/106.7A, +5Vsb/4A
    Certification
    • Platinum Certified
    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
    • CPU switching voltage regulator
    FAN
    • Up to 8-fan status tachometer monitoring
    • Up to eight 4-pin fan headers
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • Thermal control for 8x Fan connectors
    • I2C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Header
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Part NumberQtyDescription
    Motherboard
    MBD-H11DSi-NT1Super H11DSi-NT Motherboard
    Chassis
    CSE-745BAC-R1K28BP214U Chassis
    Backplane
    BPN-SAS3-743A-N418-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices
    Cable
    CBL-SAST-0508-012Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF
    Heat Sink
    SNK-P0063P22U Passive CPU Heat Sink for AMD Socket SP3 Processors
    IO Shield
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Power Supply
    PWS-1K28P-SQ21U 1280W, redundant single output power supply
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
