(EOL)H11DSi-(NT),CSE-745BTS-R1K28NDBP-SQ,4U AMD DP TowerSer

(EOL)H11DSi-(NT),CSE-745BTS-R1K28NDBP-SQ,4U AMD DP TowerSer

SKU:	AS -4023S-TRT
Brand:	Supermicro
Produktnotat:	For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 22 532,85 22532.850000000002 NOK kr 22 532,85 Ekskl. mva

kr 22 532,85 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The Supermicro AS -4023S-TRT is a versatile, high-performance server suitable for cloud computing, data centers, and general-purpose applications. Powered by dual AMD EPYC™ processors, it offers expansive memory and robust connectivity.

Nøkkelfunksjoner

Cloud Computing Data Center General purpose, SMB, Web Hosting
Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors) 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
Expansion slots: 2 PCI-E x16 slots 3 PCI-E x8 slots M.2 Interface : 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module) M.2 Form Factor : 2280, 22110 M.2 Key : M-key
Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
Dual 10G LAN ports
8 hot-swap 3.5" SATA3 drive bays; 3 peripheral 5.25" drive bays; 1 M.2 NVMe SSD supported
1280W Redundant Power Supplies Platinum Level (Full redundancy based on configuration and application load)

Viktige bruksområder

Cloud Computing
Data Center
Web Hosting

Beskrivelse

The Supermicro AS -4023S-TRT is designed for high-demand environments including cloud computing, data centers, and SMBs. Featuring dual AMD EPYC™ 7001/7002 series processors, it supports up to 4TB of memory in 16 DIMMs, eight hot-swap drive bays, and numerous expansion slots. Integrated with IPMI 2.0 + KVM, dual 10G LAN ports, and redundant power supplies, this server ensures optimal performance and reliability.

Produktspesifikasjoner

Specification	Details
Product SKUs- Discontinued SKU (EOL). Please contact sales-rep for alternative options.
AS -4023S-TRT	A+ Server 4023S-TRT
Motherboard
Processor/Chipset
CPU	Dual AMD EPYC™ 7001/7002series Processors( Board revision 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W*
Cores	Up to 32 Cores(Board revision 1.x + 7001 Processors) Up to 64 Cores(Board revision 2.x + 7002 Processors)
Chipset	System on Chip (SoC)
System Memory
Memory Capacity	16 DIMM slots Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM(7001 Processors) Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM(Board revision 2.x required + 7002 Processors) 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs(7001 Processors) DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs(Board revision 2.x required + 7002 Processors)
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB( Board revision 2.x required + 7002 Processors)
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	2 Intel® X550 10GBase-T Ethernet Controllers 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA	ASPEED AST2500 BMC
Expansion Slots
PCI-Express	2 PCI-E x16 slots 3 PCI-E x8 slots
M.2	Interface: 1 SATA/PCI-E 3.0 x2(Platform with EPYC 7002 processor only supports PCI-E type M.2 module) Form factor: 2280, 22110 Key: M-key
Input / Output
SATA	10 SATA3 (6 Gbps) ports
LAN	Dual 10G LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear)
VGA	1 VGA port
SAS	8 SAS3 ports support via optional Add-on Card
NVMe	2 NVMe support with optional cables
Others	1 COM port (rear) 2 SATA DOM power connector TPM 1.2 header
System BIOS
BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Chassis
Form Factor	Tower / 4U Rackmountable
Model	CSE-745BTS-R1K28BP2
Dimensions and Weight
Height	17.8" (452mm)
Width	7" (178mm)
Depth	25.5" (647mm)
Package	24.6" (H) x 14" (W) x 31.3" (D)
Weight	Net Weight: 59 lbs (26.76 kg) Gross Weight: 62 lbs (28.12 kg)

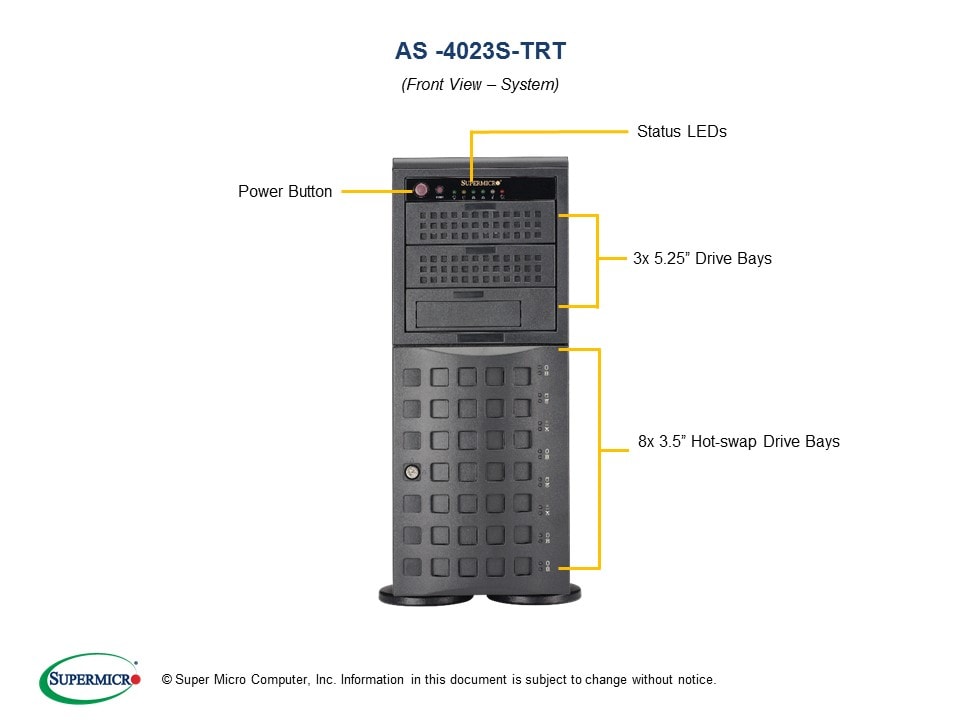

Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED /UID LED
Drive Bays
Hot-swap	8 hot-swap 3.5" Drive Bays:: 8 SATA3 by default or 8 SAS3
Peripheral Drives
5.25"	3 peripheral 5.25" drive bays
Backplane
HDD Backplane	Supports 8 SATA3 or 8 SAS3 HDD
System Cooling
Fans	3 internal hot-swap 9400 RPM fans 2 external rear hot-swap 9400 RPM fans
Power Supply
1280W Redundant High-efficiency Digital Power Supplies w/ PM Bus 1.2
AC Input	1000W Output @ 100-140V, 8-12A, 50-60Hz 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output	1000W: +12V/83A; +5Vsb/4A 1280W: +12V/106.7A, +5Vsb/4A
Certification	Platinum Certified
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
FAN	Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I2C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header
Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature:10°C to 35°C (50°F to 95°F) Non-operating Temperature:-40°C to 70°C (-40°F to 158°F) Operating Relative Humidity:8% to 90% (non-condensing) Non-operating Relative Humidity:5% to 95% (non-condensing)

Standard Delliste

Part Number	Quantity	Description

Part Number	Qty	Description
Motherboard
MBD-H11DSi-NT	1	Super H11DSi-NT Motherboard
Chassis
CSE-745BAC-R1K28BP2	1	4U Chassis
Backplane
BPN-SAS3-743A-N4	1	8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices
Cable
CBL-SAST-0508-01	2	Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF
Heat Sink
SNK-P0063P	2	2U Passive CPU Heat Sink for AMD Socket SP3 Processors
IO Shield
MCP-260-00042-0N	1	STD I/O shield for X9 socket R server MB with Gasket.
Power Supply
PWS-1K28P-SQ	2	1U 1280W, redundant single output power supply
Software
SFT-OOB-LIC	1	OOB Management Package (per node license)
