  2. H12DSG-O-CPU, CSE-418G2TS, AOM-PCIE4-418N-1

H12DSG-O-CPU, CSE-418G2TS, AOM-PCIE4-418N-1

SKU: AS -4124GS-TNR+
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10673/image_1920?unique=04e8906

kr 64 665,25 64665.25 NOK kr 64 665,25 Ekskl. mva

kr 64 665,25 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

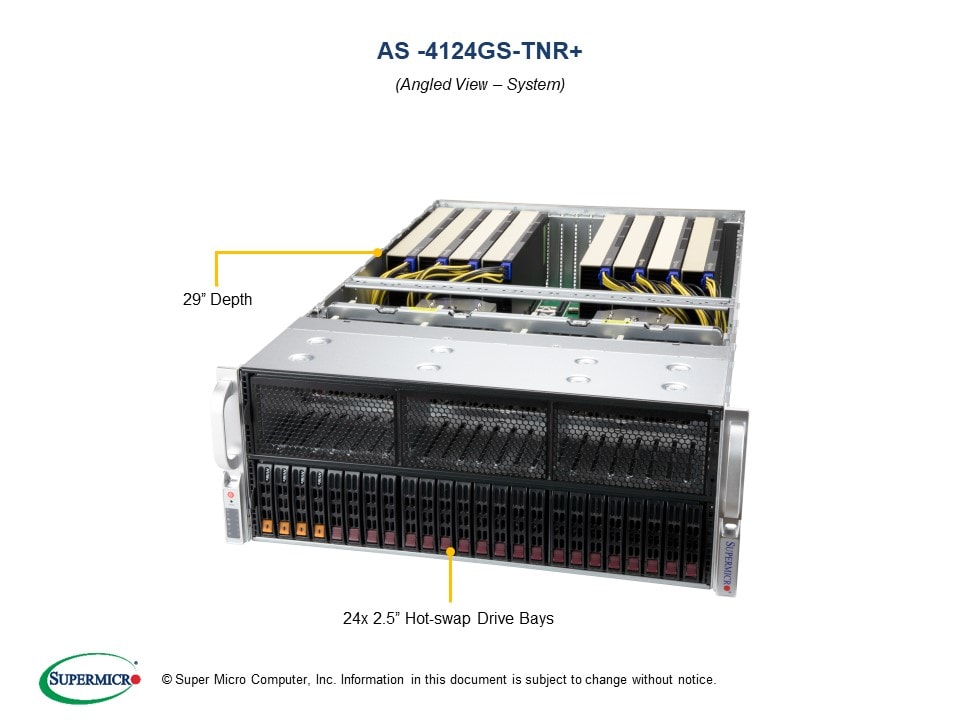

    The Supermicro AS -4124GS-TNR+ is a versatile 4U server designed for AI, HPC, Cloud Gaming, and Molecular Dynamic Simulations. It supports dual AMD EPYC 7003/7002 Series processors and up to 8 double-width GPUs.

    Nøkkelfunksjoner

    • Supports up to 8 double-width GPUs Direct connect for maximum performance 2. Dual AMD EPYC™ 7003/7002 Series Processors 3. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs 4. 9 PCI-E 4.0 x16 (Option: 10 PCI-E 4.0 x16 slots without NVMe devices) 5. Up to 24 Hot-swap 2.5" drive bays. With included hardware: • 2x 2.5" SATA in RAID 1 via onboard Marvell 9230 • 4x 2.5" NVMe Gen4 (depends on PCI-E quantity based on &num4) RAID controller option available for 24 HDDs 6. 2 GbE LAN ports (rear) 7. 8 Hot-swap 11.5K RPM cooling fans 8. 2000W (2+2) Redundant Power Supplies Titanium Level (96%+) (full redundancy based on configuration and application load)
    • Supports up to 8 double-width GPUs Direct connect for maximum performance
    • Dual AMD EPYC™ 7003/7002 Series Processors
    • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
    • 9 PCI-E 4.0 x16 (Option: 10 PCI-E 4.0 x16 slots without NVMe devices)
    • Up to 24 Hot-swap 2.5" drive bays. With included hardware: • 2x 2.5" SATA in RAID 1 via onboard Marvell 9230 • 4x 2.5" NVMe Gen4 (depends on PCI-E quantity based on &num4) RAID controller option available for 24 HDDs
    • 2 GbE LAN ports (rear)
    • 8 Hot-swap 11.5K RPM cooling fans
    • 2000W (2+2) Redundant Power Supplies Titanium Level (96%+) (full redundancy based on configuration and application load)

    Viktige bruksområder

    • AI / Deep Learning
    • High Performance Computing (HPC)
    • Cloud Gaming
    • Molecular Dynamics Simulation

    Beskrivelse

    The Supermicro AS -4124GS-TNR+ is a high-performance server tailored for demanding AI, HPC, Cloud Gaming, and Molecular Dynamic Simulation applications. Featuring dual AMD EPYC 7003/7002 Series processors and up to 8 double-width GPUs, it offers maximum performance and flexibility. It can support up to 8TB of DDR4 SDRAM across 32 DIMM slots and is equipped with 9 PCI-E 4.0 x16 slots, with an option for 10 slots without NVMe devices. The system includes up to 24 hot-swap 2.5" drive bays, dual GbE LAN ports, 8 cooling fans, and 2000W redundant power supplies.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    AS -4124GS-TNR+
    • A+ Server 4124GS-TNR+ ( Black )
    Motherboard
    Installed Motherboard
    • Super H12DSG-O-CPU
    Processor/Cache
    CPU
    • Dual AMD EPYC™ 7003/7002 Series Processors
    • Socket SP3
    • Supports CPU TDP up to 280W**
    Cores
    • Up to 128 Cores (64 per CPU)
    Note
    • * Supports 2 CPUs only – single socket not supported** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    GPU
    Supported GPUs
    • 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)
    • NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct
    • Supports both active and passive cooled GPUs
    • Compatible GPU list
    CPU-GPU Interconnect
    • PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root
    GPU-GPU Interconnect
    • NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)
    System Memory
    Memory Capacity
    • 32 DIMM slots*
    • Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    Memory Type
    • 3200MHz ECC DDR4 RDIMM/LRDIMM**
    Note
    • * Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors
    • ** In 2DPC configurations memory speed is up to 2933MHz
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Provided via riser card
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output
    SATA/SAS
    • 24 SATA/SAS with a controller
    LAN
    • 2 RJ45 GbE LAN ports (rear)
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA Connector
    COM Port
    • 1 COM port (header)
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SPM , SUM
    • SuperDoctor® 5
    • Watchdog
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Other Features
    • RoT
    Chassis
    Form Factor
    • 4U Rackmountable
    • Rackmount Kit (MCP-290-00057-0N)
    Model
    • CSE-418G2TS-R4016BP
    Dimensions
    Height
    • 7.0" (178mm)
    Width
    • 17.2" (437mm)
    Depth
    • 29" (737mm)
    Package
    • 26.57" (H) x 27" (W) x 41" (D)
    Weight
    • Net Weight: 65.5 lbs (29.7 kg)
    • Gross Weight: 100 lbs (45.3 kg)
    Available Colors
    • Black
    Drive Bays / Storage
    Hot-swap
    • Up to 24x 2.5" SAS/SATA drive bays
    • 2x 2.5" SATA supported natively*
    • 4x 2.5" NVMe Gen4 supported natively
    • RAID controller option available for 24 HDDs
    Note
    • * 2x drives in RAID 1 only via onboard Marvell 9230
    Expansion Slots
    PCI-Express
    • 9 PCI-E 4.0 x16 (FHFL) slots
    • or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices
    System Cooling
    Fans
    • 8x 11.5K RPM heavy duty fans
    Power Supply
    • 2000W Redundant Power Supplies with PM Bus
    Total Output Power
    • 1000W: 100 – 127Vac1800W: 200 – 220Vac1980W: 220 – 230Vac2000W: 230 – 240Vac2000W: 220 – 240Vac (UL only)
    Dimension(W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 12-9A / 50-60Hz
    • 200-220Vac / 10-9.8A / 50-60Hz
    • 220-230Vac / 10-9.8A / 50-60Hz
    • 230-240Vac / 10-9.8A / 50-60Hz
    • 220-240Vac / 11-10A / 50-60Hz (UL only)
    +12V
    • Max: 83A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 166A / Min: 0A (230-240Vac)
    • Max: 166A / Min: 0A (220-240Vac) (UL only)
    12Vsb
    • Max: 3.5A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    0.3U LID
    MCP-230-41803-0N1Top cover for GTX card support
    1U LID
    MCP-230-41806-0N1Top cover for NVLINK BRIDGE support
    GPU Cables
    CBL-PWEX-10171 per GPUGPU power cable (for NVIDIA QUADRO, GTX, AMD Instinct). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG.
    Storage Controller Cards and Cables
    AOC-S3008L-L8I 21Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
