H14DSG-O-CPU, CSE-528G, 5U GPU Dual root with PLX

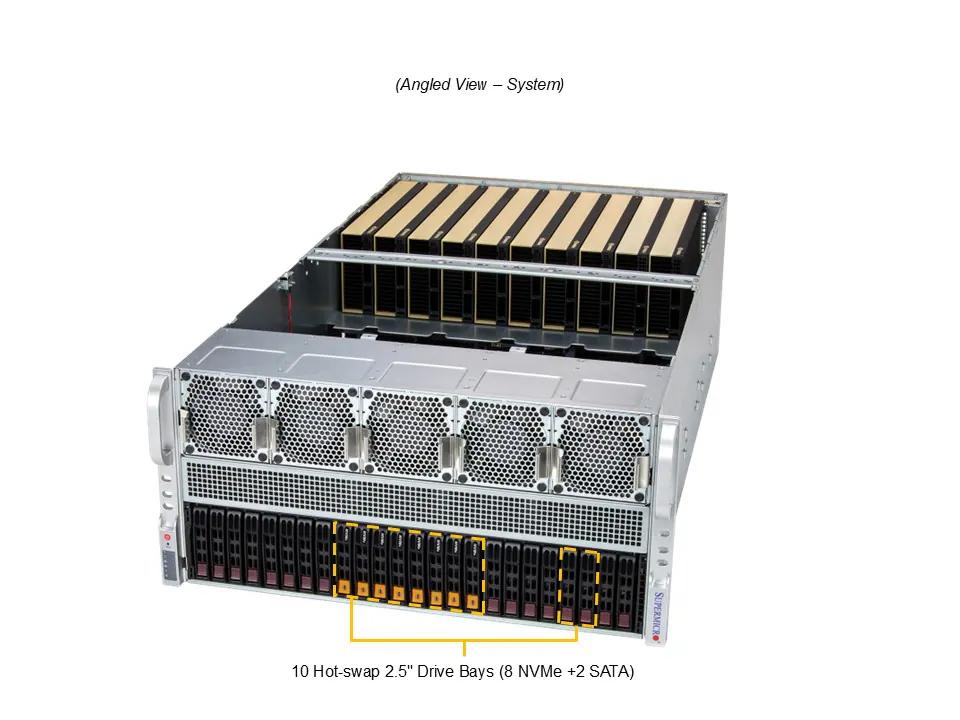

AS -5126GS-TNRT2

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/13547/image_1920?unique=ce410c7

kr 123 143,91 123143.91 NOK kr 123 143,91

kr 123 143,91

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The AS -5126GS-TNRT2 by Supermicro is optimized for AI and deep learning, leveraging dual AMD EPYC™ processors with advanced GPU support and robust memory capabilities. Ideal for high-performance computing applications.

    Nøkkelfunksjoner

    • Dual processor(s) AMD EPYC™ 9005 Series Processors up to 500W with air cooling
    • Support for up to 10 double-width PCIe GPU accelerator cards
    • Up to 24 DIMMs supporting up to 9TB DDR5-6000 in 1DPC
    • Flexible networking with AIOM support
    • Up to 13 PCIe 5.0 x16 FHFL slots
    • Up to 2 front hot-swap 2.5" SATA + 8 front hot-swap 2.5" NVMe drive bays

    Viktige bruksområder

    • AI / Deep Learning
    • 3D Rendering Farm
    • Visualization / Simulation
    • High Performance Computing
    • Multimedia/Digital Content creation

    Beskrivelse

    The Supermicro AS -5126GS-TNRT2 is a high-performance server designed for AI, deep learning, and demanding computing tasks. It features dual AMD EPYC™ 9005/9004 processors supporting up to 192 cores, 9TB of ECC DDR5 memory, and ten NVIDIA-compatible double-width GPUs. With flexible networking, thirteen PCIe 5.0 x16 slots, and robust security features, this server meets the needs of high-performance computing and virtualization environments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -5126GS-TNRT2
    Motherboard
    Installed Motherboard
    • Super H14DSG-O-CPU
    Processor
    CPU
    • Dual processor(s)
    • AMD EPYC™ 9005/9004 Series Processors
    Core Count
    • Up to 192C/384T
    Note
    • Supports up to 500W TDP CPUs
    GPU
    Max GPU Count
    • Up to 10 double-width GPUs
    Supported GPU
    • NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S
    CPU-GPU Interconnect
    • PCIe 5.0 x16 Switch Dual-Root
    GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)
    System Memory
    Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 10GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port
    • 2 RJ45 10 GBASE-T LAN ports
    USB
    • 2 ports(rear)
    Video
    • 1 VGA port
    System BIOS
    BIOS Type
    • AMI 64MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 5U Rackmount
    Model
    • CSE-528G2TS-R000NDP
    Dimensions and Weight
    Height
    • 8.75" (222.5 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29" (737 mm)
    Package
    • 17.32" (H) x 28.34" (W) x 42.51" (D)
    Weight
    • Gross Weight: 100 lbs (45.3 kg)
    • Net Weight: 65.5 lbs (29.7 kg)
    Available Color
    • Black Front & Silver Body
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 11 PCIe 5.0 x16 FHFL slots

    Option A:
    • 13 PCIe 5.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 10 bays:
    • 2 front hot-swap 2.5" SATA drive bays
    • 8 front hot-swap 2.5" NVMe drive bays

    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
    System Cooling
    Fans
    • 10 heavy duty fans with optimal fan speed control
    Power Supply
    6x 2700W Redundant (3 + 3) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    Input:
    • 2700W: 200-240Vac
    • 2700W: 200-240Vac / 50-60Hz
    • 2700W: 240-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 225A / Min: 0A (200Vac-240Vac)
    • Max: 225A / Min: 0A (240Vdc-240Vdc)

    12V SB:
    • Max: 3.5A / Min: 0A
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Environmental / Recycling
    Recycle
    • Return Server-End of Life Product

    Optional Part List

    Part Number Quantity Description
    GPU Link
    GPU-NVLINK-4WAY-NVLINK Bridge Board for Hopper GPU, 4-way Passive
    GPU-NVLINK-2WAY-NVLINK Bridge Board for Hopper GPU, 2-way Passive
    Power Cable
    CBL-0223L-PWS POWER CORD C-19 TO C-20,
    Power supply
    PWS-2K70A-1R-2700W Redundant Titanium w/PMBus power supply, C20 inlet
