  2. 8U H13 HGX H100 8GPU,H13DSG-O-CPU-D, CSE-GP801TS

8U H13 HGX H100 8GPU,H13DSG-O-CPU-D, CSE-GP801TS

SKU: AS -8125GS-TNHR
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs (minimum 48 Cores per socket, 56 Cores recommended), 1.5TB Memory for HGX-100 8 GPU's, 1 Storage device, and 1 network device). Service: OSNBD3 is highly recommended.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10692/image_1920?unique=e6ef904

kr 268 986,43 268986.43 NOK kr 268 986,43 Ekskl. mva

kr 268 986,43 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

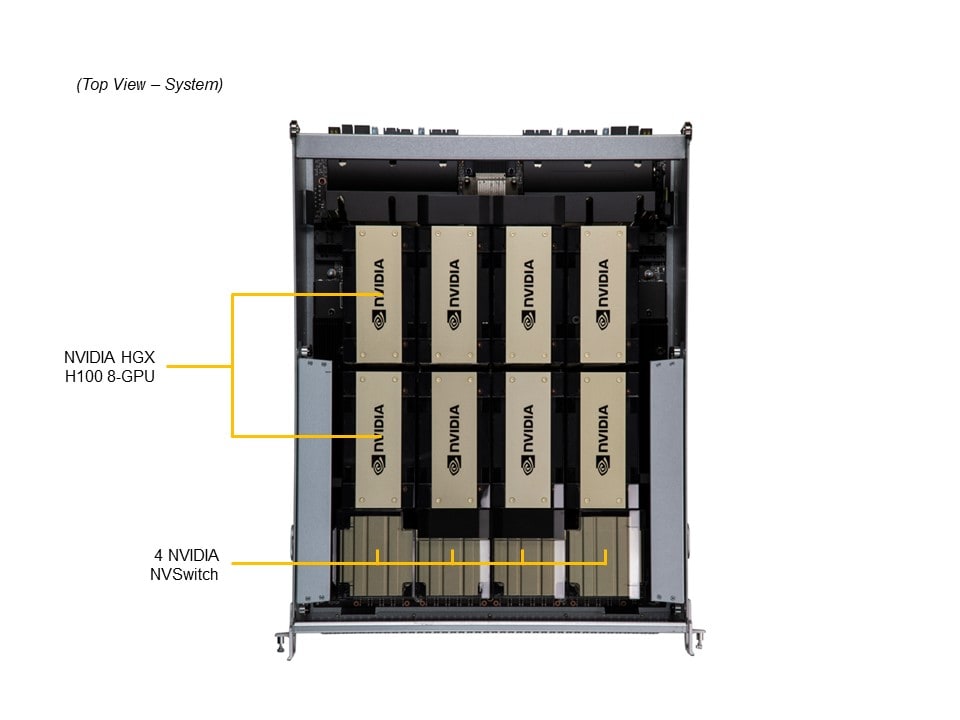

    The Supermicro AS -8125GS-TNHR offers an unparalleled combination of GPU density, flexible networking options, and advanced power supply systems. It supports up to 8 NVIDIA HGX H100 GPUs and up to 6TB of memory, making it ideal for high performance computing and AI workloads.

    Nøkkelfunksjoner

    • High density 8U system for NVIDIA® HGX™ H100/H200 8-GPUHighest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™8 NIC for GPU direct RDMA (1:1 GPU Ratio)
    • 24 DIMM slots DDR5; up to 6TB 4800MT/s ECC LRDIMM/RDIMM
    • Up to 8 PCIe 5.0 x16 LP + 4 PCIe 5.0 x16 FHFL slots
    • Flexible networking options
    • 12 Hot-swap 2.5" NVMe drive bays + 2 hot-swap 2.5" SATA drive bays+ 4 hot-swap 2.5" NVMe drive bays (optional)1 M.2 NVMe for boot drive only
    • 10 heavy duty fans with optimal fan speed control
    • 6x 3000W redundant Titanium level power supplies

    Viktige bruksområder

    • High Performance Computing
    • AI/Deep Learning Training
    • Industrial Automation, Retail
    • Climate and Weather Modeling

    Beskrivelse

    The Supermicro AS -8125GS-TNHR is an 8U rackmount server designed for high performance computing and AI applications. Key features include support for NVIDIA HGX H100 8-GPU with NVLink and NVSwitch for maximum GPU communication, up to 6TB DDR5 memory across 24 DIMM slots, and flexible networking options with 8 PCIe Gen 5.0 x16 slots. The system also includes robust security features like a Trusted Platform Module (TPM) 2.0 and Silicon Root of Trust, as well as comprehensive management software including SuperCloud Composer and Supermicro Server Manager (SSM). The chassis accommodates up to 18 drive bays for extensive storage capabilities and is powered by six 3000W redundant Titanium level power supplies for reliable operation.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • A+ Server AS -8125GS-TNHR
    Motherboard
    Installed Motherboard
    • Super H13DSG-O-CPU-D
    Processor
    CPU
    • Dual Socket SP5
    • AMD EPYC™ 9004 Series Processors
    Core Count
    • Up to 128C/256T
    Note
    • Supports up to 400W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 8 onboard GPUs
    Supported GPU
    • NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • NVIDIA® NVLink® with NVSwitch™
    System Memory
    Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • AMD SP5
    Input / Output
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 8U Rackmount
    Model
    • CSE-GP801TS
    Dimensions and Weight
    Height
    • 14" (355.6 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 33.2" (843.28 mm)
    Package
    • 29.5" (H) x 27.5" (W) x 51.2" (D)
    Weight
    • Gross Weight: 225 lbs (102.1 kg)
    • Net Weight: 166 lbs (75.3 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • Hard drive activity LED
    • Network activity LEDs
    • Power status LED
    • System Overheat & Power Fail LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 8 PCIe 5.0 x16 LP slots
    • 2 PCIe 5.0 x16 FHFL slots

    Option A:
    • 8 PCIe 5.0 x16 LP slots
    • 4 PCIe 5.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 18 bays:
    • 2 front hot-swap 2.5" SATA drive bays
    • 4 front hot-swap 2.5" NVMe* drive bays
    • 12 front hot-swap 2.5" NVMe drive bays

    • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 NVMe slot (M-key)
    System Cooling
    Fans
    • 10 heavy duty fans with optimal fan speed control
    Power Supply
    6x 3000W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 106.5 x 82.1 x 245.5 mm

    AC Input:
    • 3000W: 0240Vdc / 50-60Hz (for CQC only)
    • 2880W: 200-207Vac / 50-60Hz
    • 3000W: 207-240Vac / 50-60Hz

    +12V:
    • Max: 91.66A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    NVMe and PCIe add on Kit
    AOM-DP801-PCIE-P AOM-DP801-SW-P CBL-MCIO-1255M5CBL-PWEX-1142-401 1 4 1Enables additional 4x NVMe drive bay support, and 2x additional PCIe Gen5 x16 slots.
