H13DSG-OM, CSE-GP801TS-D2 for MI300X

SKU:

AS -8125GS-TNMR2

Brand:

Supermicro

Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs (minimum 48 Cores per socket, 56 Cores recommended), 1.5TB Memory for MI300X OAM 8 GPU's, 1 Storage device, and 1 network device.) Service: OSNBD3 is highly recommended.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 241 838,13 241838.13 NOK kr 241 838,13 Ekskl. mva

kr 241 838,13 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The Supermicro AS -8125GS-TNMR2 is a state-of-the-art, high-density 8U server built to support AMD Instinct MI300X 8-GPU, ideal for demanding applications such as high performance computing, AI/deep learning training, and industrial automation.

Nøkkelfunksjoner

8 NIC for GPU direct RDMA (1:1 GPU Ratio)High density 8U system with AMD Instinct MI300X 8-GPU
24 DIMM Slots; Up to 6TB DRAM; 4800 ECC DDR5 LRDIMM;RDIMM;
8 PCIe Gen 5.0 X16 LP, and up to 4 PCIe Gen 5.0 X16 FHFL Slots
Flexible networking options
2x 2.5" Hot-swap SATA drive bays1 M.2 NVMe for boot drive onlyup to 16x 2.5" Hot-swap NVMe drive bays (12 by default + 4 optional)
10 heavy duty fans with optimal fan speed control
6x 3000W redundant Titanium level power supplies

Viktige bruksområder

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Climate and Weather Modeling

Beskrivelse

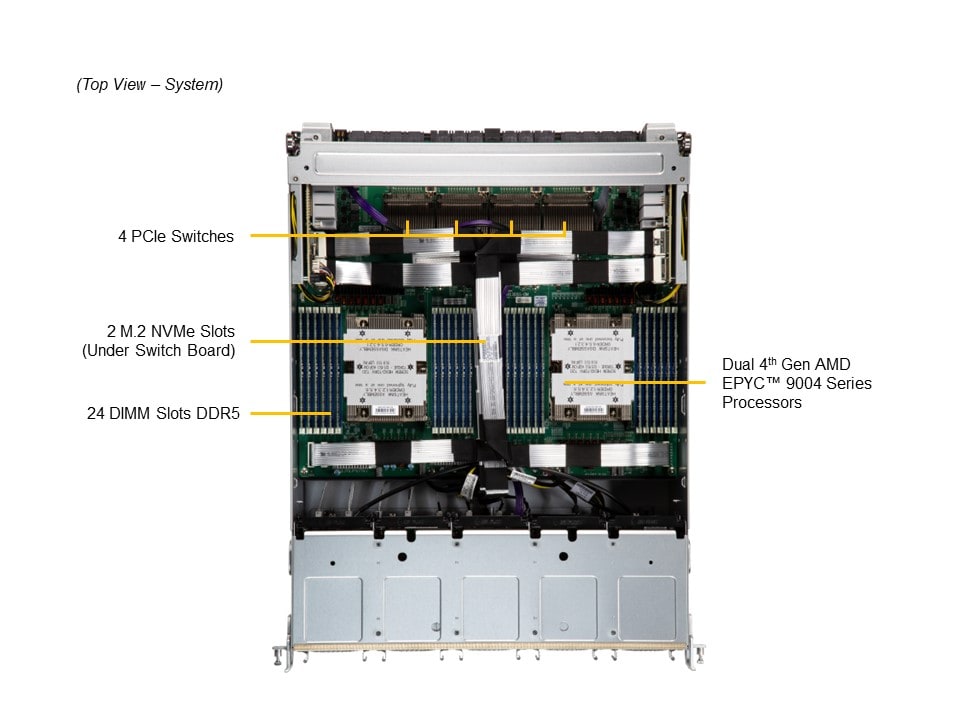

Supermicro’s AS -8125GS-TNMR2 is a top-tier 8U rackmount server designed to cater to the most rigorous computing needs. It supports up to 8 AMD Instinct MI300X GPUs, dual Socket SP5 AMD EPYC™ 9004 series processors, and features 24 DIMM slots allowing up to 6TB ECC DDR5 memory. The server is equipped with robust features like 8 PCIe Gen 5.0 X16 slots, and flexible networking options. It comes with 10 heavy-duty fans, redundant 3000W Titanium level power supplies, and advanced management software like SuperCloud Composer, ensuring reliability and efficiency in all operational environments.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	A+ Server AS -8125GS-TNMR2
Motherboard
Installed Motherboard	Super H13DSG-OM
Processor
CPU	Dual Socket SP5 AMD EPYC™ 9004 Series Processors
Note	Supports up to 400W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 8 onboard GPUs
Supported GPU	AMD: Instinct MI300X Accelerators
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric™ Link
System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	AMD SP5
Input / Output
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	8U Rackmount
Model	CSE-GP801TS
Dimensions and Weight
Height	14" (355.6 mm)
Width	17.2" (437 mm)
Depth	33.2" (843.28 mm)
Package	29.5" (H) x 27.5" (W) x 51.2" (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black front & silver body
Front Panel
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHFL slots Option A: 8 PCIe 5.0 x16 LP slots 4 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 18 bays: 12 front hot-swap 2.5" NVMe drive bays 2 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe slots (M-key)
System Cooling
Fans	No/A
Power Supply
6x 3000W Redundant Titanium Level (96%) power supplies	Dimension (WxHxL): 106.5 x 82.1 x 245.5 mm AC Input: 3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz +12V: Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SB: Max: 3A / Min: 0A Output Type: Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
