H12SSFR-AN6, CSE-F418BC3-R2k20BP, FT RIO 4U 8-Node UP

SKU: AS -F1114S-RNTR
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10663/image_1920?unique=1ce4bbb

kr 118 787,55 118787.55 NOK kr 118 787,55 Ekskl. mva

kr 118 787,55 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

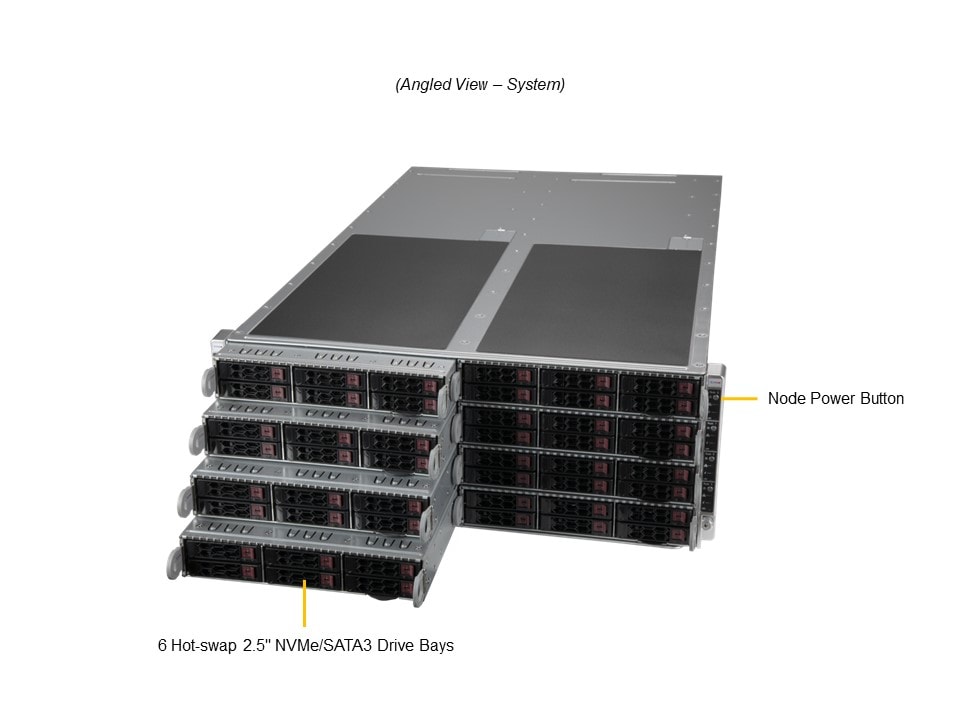

    The Supermicro AS -F1114S-RNTR is a 4U rackmount server designed for high-performance computing and enterprise applications. It features 8 hot-pluggable nodes, each supporting a single AMD EPYC™ processor, up to 2TB DDR4 memory, and multiple expansion slots.

    Nøkkelfunksjoner

    • 8 Hot-pluggable System Nodes in a 4U form factor. Each node supports:
    • Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Up to 2TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 8 DIMM slots
    • Expansion slots: 1 PCI-E 4.0 x16 (LP Riser), 1 PCI-E 4.0 x16 (for AIOM)
    • AIOM Network card, 1 dedicated IPMI LAN port
    • 1 VGA, 2 USB 3.0 ports
    • 6 Hot-swap 2.5" drive bays: 2 NVMe/SATA3, 4 SATA3 (optional NVMe with additional cables) M.2 Interface : 4 SATA/PCI-E 4.0 x4 M.2 Form Factor : 2242, 2260, 2280, 22110 M.2 Key : M-Key
    • 3x 4cm 17.6K RPM middle fans
    • 2200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Viktige bruksområder

    • Hyperscale / Hyperconverged
    • HPC and Big Data
    • Data Center Enterprise Applications
    • Scale Out Storage
    • Telco Data Center
    • Virtualization Server

    Beskrivelse

    Supermicro’s AS -F1114S-RNTR is a versatile 4U rackmount server equipped with 8 hot-pluggable system nodes. Each node supports a single AMD EPYC™ 7003/7002 Series Processor, up to 2TB ECC DDR4 memory, and various expansion slots including PCI-E 4.0. Designed for hyperscale, HPC, and data center applications, this server offers robust storage options, efficient cooling, and redundant power supplies.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    AS -F1114S-RNTR
    • A+ Server F1114S-RNTR ( Black )
    Motherboard
    Installed Motherboard
    • Super H12SSFR-AN6
    Processor/Chipset (per Node)
    CPU
    • Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP / cTDP up to 280W*
    Cores
    • Up to 64 Cores
    Note
    • * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    System Memory (per Node)
    Memory Capacity
    • 8 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Flexible networking via AIOM (not included, must add 1 per node)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2600 BMC
    Input / Output (per node)
    LAN
    • Flexible networking via AIOM
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    VGA
    • 1 VGA port
    Others
    • 1 COM port
    • 1 TPM 2.0 header
    System BIOS
    BIOS Type
    • 256Mb SPI Flash EEPROM with AMI BIOS
    Management
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-F418BC3-R2K20B
    Dimensions and Weight
    Width
    • 17.63" (448mm)
    Height
    • 6.96" (177mm)
    Depth
    • 29" (737mm)
    Package
    • 28.3" (W) x 15.0" (H) x 42.4" (D)
    Weight
    • Net Weight: 150 lbs (68.04 kg)
    • Gross Weight: 200 lbs (90.71 kg)
    Available Colors
    • Black
    Front Panel (per node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • Information LED (UID, Fan failure, Overheat)
    Expansion Slots (per node)
    PCI-Express
    • 1 PCI-E 4.0 x16 (Low-profile riser)
    • 1 PCI-E 4.0 x8 (Internal RAID AOC)
    Drive Bays (per node)
    Hot-swap
    • 2 Hot-swap 2.5" NVMe/SATA3 and 4 SATA3 (optional NVMe with additional cables)
    M.2
    • M.2 Interface: 4 SATA/PCI-E 4.0 x4
    • M.2 Form Factor: 2242, 2260, 2280, 22110
    • M.2 Key: M-Key
    System Cooling (per node)
    Fans
    • 3x 4cm 17.6K RPM middle fans
    Power Supply
    • 2200W Redundant Power Supplies with PM Bus
    Total Output Power and Input
    • 1200W with Input 100-127Vac
    • 1800W with Input 200-220Vac
    • 1980W with Input 220-230Vac
    • 2090W with Input 230-240Vac
    • 2200W with Input 220-240Vac (for UL/cUL use only)
    • 2090W with Input 230-240Vdc (for CCC only)
    AC Input Frequency
    • 50-60Hz
    Dimension(W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 183.3A / Min: 0A (220-240Vac)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Backplane
    • 1 SATA/NVMe backplane

    Valgfrie Opsjoner

    Part Number Quantity Description
    Cable(s) for Additional NVMe Support
    CBL-SAST-1223-852Slimline x8 (LE) to 2x Slimline x4 (STR),22/22CM,85 OHM
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
